9
SPND.BODYA 300309-24

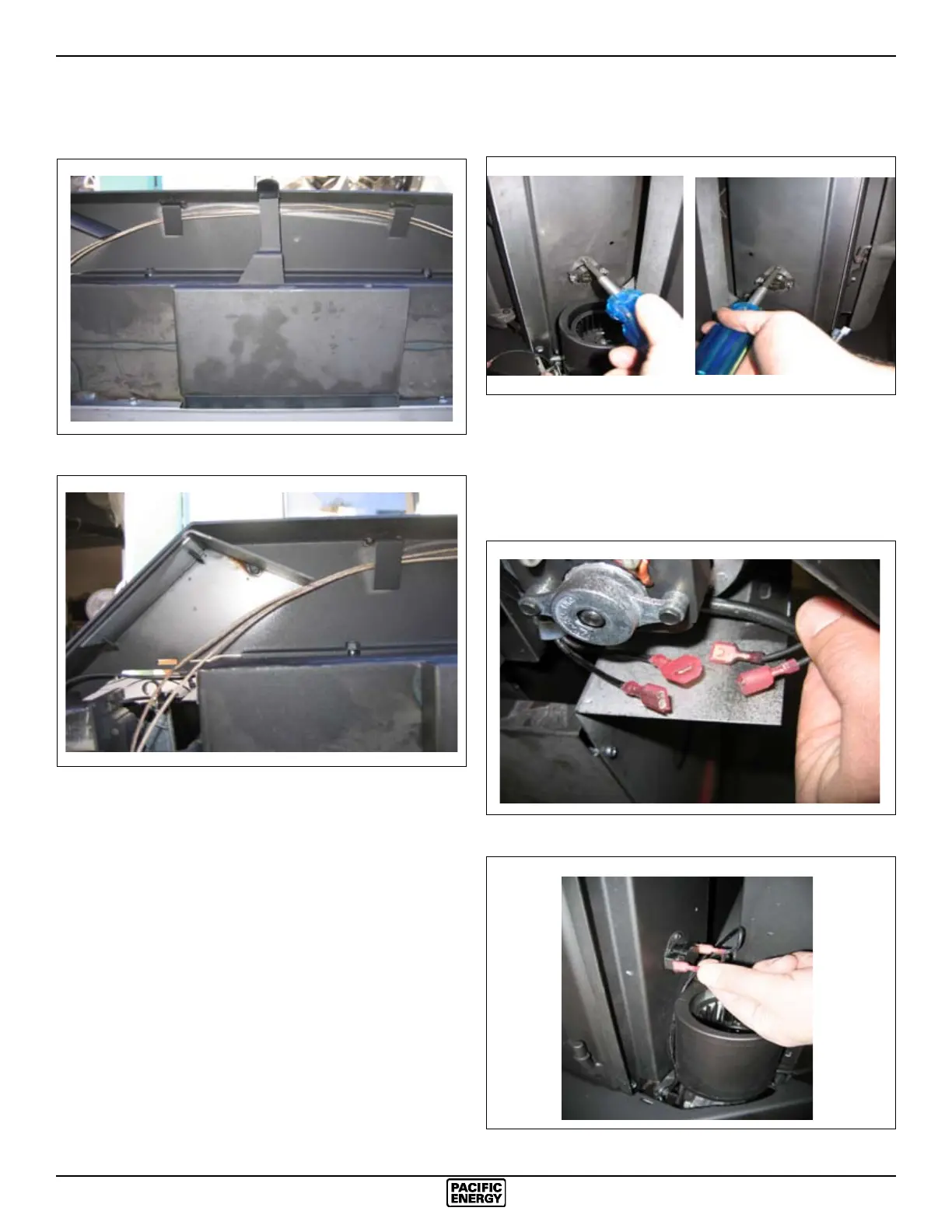

7) Route cable from speed control to fan under the clips on
the underside of the ash lip. Note wire positions.(Fig.13 &
Fig.14)
8) Remove Thermal switch from right hand fan mounting bracket
and secure to left hand fan mounting bracket.
9) Reconnect the wires to the fans (Fig.17) and thermal snap
switch (Fig.18), ret ash lip, sides and top. Ensure that the
power cable is correctly routed through the surround and it
is not touching the rebox side. Wire placement is important
to prevent damage to wires.
Fig. # 13
Fig. # 15 Fig. # 16
Fig. # 17
Fig. # 14
Fig. # 18
