Safety
READ ALL INSTRUCTIONS BEFORE INSTALLING AND
USING THIS APPLIANCE.
We strongly recommend that smoke detectors be installed.
If smoke detectors have been previously installed, you may
notice that they are operating more frequently. This may be
due to curing of stove paint or fumes caused by accidentally
leaving the re door open. Do not disconnect the detectors.
If necessary, relocate them to reduce their sensitivity.
SAFETY NOTICE: If this stove is not properly installed, a
house re may result. For your safety, follow the installation
directions. Consult local building or re officials about
restrictions and installation inspection requirements in your
area.
Clearances
Masonry or Factory Built Fireplace
The minimum required clearances to surrounding combustible
materials when installed into a masonry or factory built
replace are listed below and in gure #1.
Minimum Clearances to Combustibles
(Measured From Insert Body)
Adjacent Sidewall .....................20.5 in. (520 mm.)
Mantel ..........................................30 in. (762 mm.)
Mantel with Shield .......................21 in. (508 mm.)
(with part # SPND.MSMBKA)
Top Facing ...................................30 in. (762 mm.)
with Mantel Shield .......................21 in. (508mm)
(with part # SPND.MSMBKA)
Side Facing (1.5 in. extension) ... 6.5 in. (165 mm.)

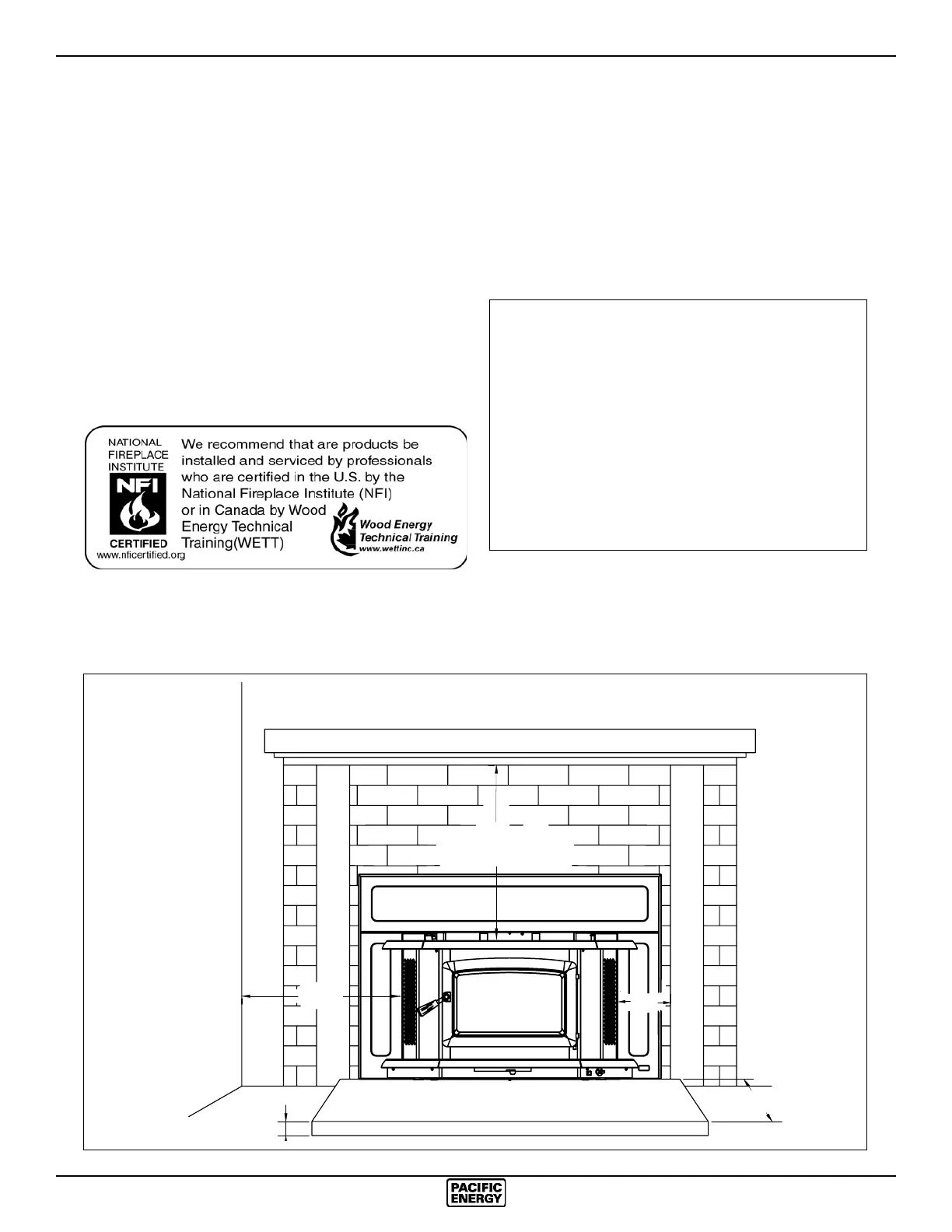

Fig. # 1
Mantel or Top Facing
Side Facing
Fireplace
Hearth
Adjacent Wall
