Pacific C Series - Installation Requirements; Fireplace Hearth Requirements; Ember Protection Requirements

081112-24 VISTA INSERT-C 5
16”
Non-combustible  replace
hearth
24 1/2”
21”
18”
8”8”

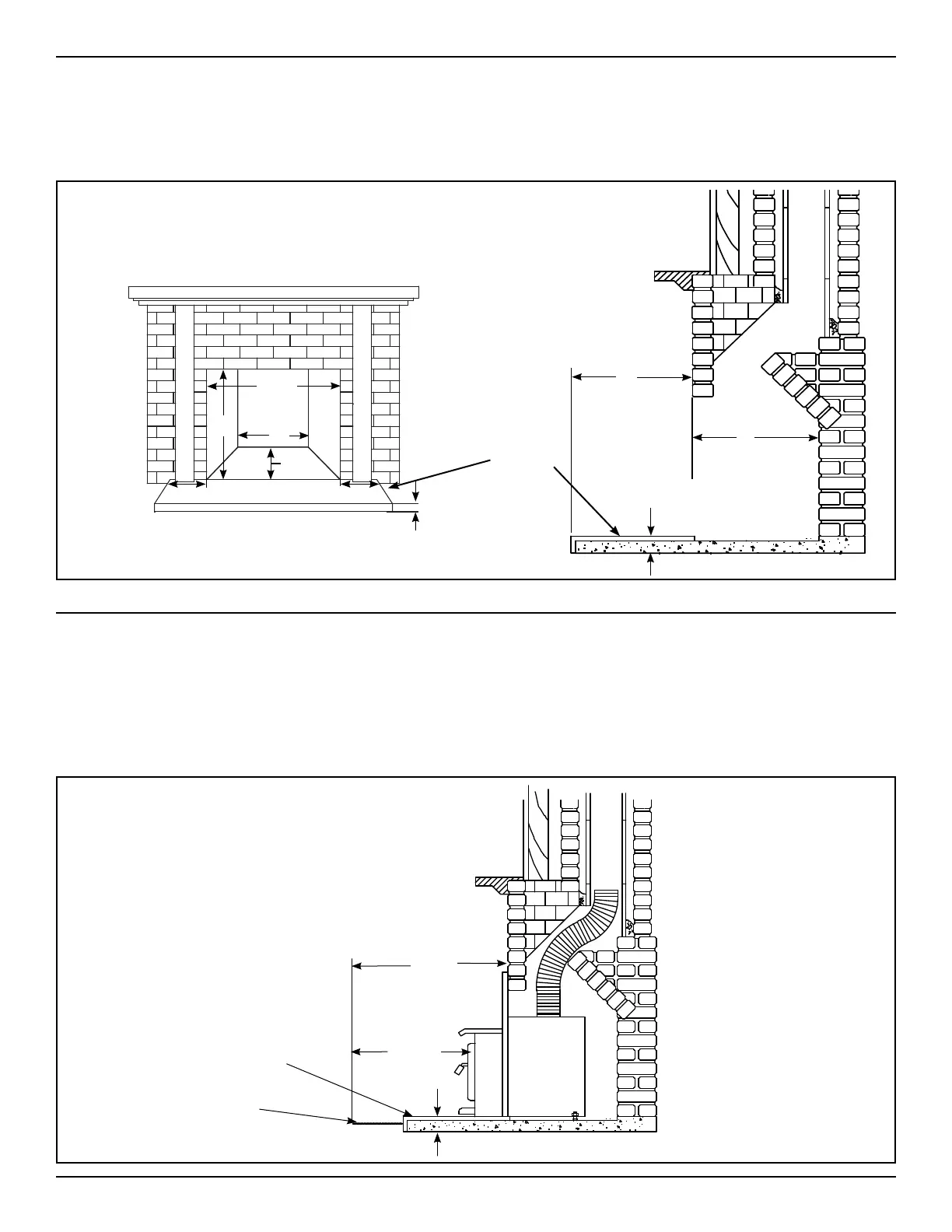

Fireplace hearth requirements: (Measured without the insert)
The hearth may be  ush with or raised above an adjacent combustible  oor and must extend 16” in front and 8” beyond
each side of the  replace opening.
Ember protection:
Combustible  oor in front of the  replace insert must be protected from hot embers by non-combustible material extend-
ing 16” (USA) and 18” (CANADA) to the  ring side and 8” to other sides of the unit.
Consult CAN/CSA-B365 Installation Code for Solid-Fuel-Burning appliances and equipment in Canada, and N.F.P.A.
211 Standard for chimneys,  replaces, vents and Solid-Fuel-Burning appliances in USA.
16” USA
18” CANADA
Non-combustible hearth
Non-combustible  oor
covering
2”
2”
2”
24”
18 1/4”
*
*
**
**
MINIMUM EMBER
PROTECTION
DIMENSIONS
MINIMUM FIREPLACE
OPENING AND HEARTH
DIMENSIONS
23 1/2”
