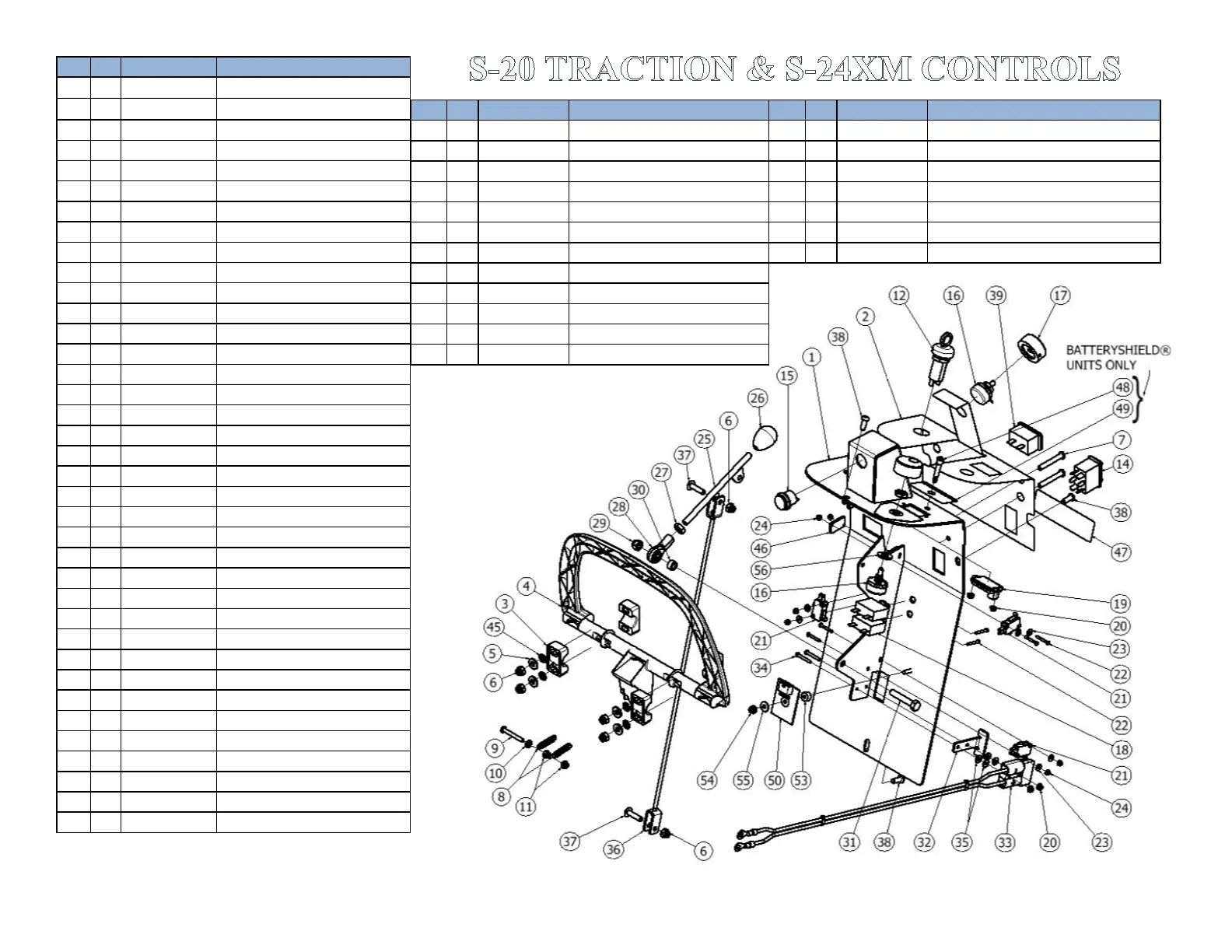

S-20 TRACTION & S-24XM CONTROLS
ITEM QTY PART NUMBER DESCRIPTION
1 1 857101 PANEL, CONTROLS
2 1 855117 LABEL CONTROL 11GAL DISK
2 1 855118 LABEL CONTROL 11GAL ORB
3 4 855601 MOUNT, BEARING, PLASTIC
4 1 851301 BAIL, MOLDED
5 4 W104D WASHER, FLAT, .25
6 6 920011 NUT, NYLOCK, 1/4-20, ZINC
7 4 962264 SCREW, BUTTON, SOCKET, .25 X 1.75, SS
8 2 858302 SPRING, EXTENSION
9 1 962146 SCREW, PAN, #10-32 X 1.5, FULL, ZINC
10 1 920013 NUT, #10-32, ZINC
11 2 920666 NUT, NYLOCK, #10-32, SS
12 1 911647 SWITCH, KEY
13 1 855012 KEY, REPLACEMENT, SCRUBBER
14 1 911649 SWITCH, ROCKER, AUTO ON-OFF
15 1 911653 SWITCH, ROUND, ON – MOM
16 2 911664 POTENTIOMETER ASSY, 5K
17 2 855001 KNOB, ADJUST, .25 BORE
18 2 911622 CIRCUIT BREAKER, 30 AMPS
19 1 911621 METER, BATTERY
20 4 920034 NUT, NYLOCK, #6-32, SS
21 3 911646 SWITCH, SNAP, WITH ROLLER
22 6 962273 SCREW, PAN, #4-40 X .88, ZINC
23 6 980682 WASHER, FLAT, #4, ZINC
24 6 W385D NUT, NYLOCK, #4-40, ZINC
25 1 855106 LEVER, LIFT, SQUEEGEE
26 1 855004 KNOB, OVAL, .31-18
27 1 920038 NUT, HEX, .31-24, SS
28 1 902050 BEARING, ROD END, .31-24
29 1 920012 NUT, NYLOCK, 5/16-18, ZINC
30 1 853802 GUIDE, SPACER, ROUND
31 1 962270 SCREW, HEX, 5/16-18X1.75,SS
32 1 850806 BRACKET, PLUG
33 1 911645 HARNESS, CHARGER, POST
34 2 W132D SCREW, PAN, #6-32 X 1.0, ZINC
35 4 980033 WASHER, FLAT, #6, SS
36 1 852401 CABLE, LIFT, CLEVIS
ITEM QTY PART NUMBER DESCRIPTION
37 2 962455 SCREW, TRUSS, .25-20 X 1.0
38 4 962263 SCREW, BUTT, SOCK, .25-20X.62, SS BO
39 1 911661 METER, HOUR, DIGITAL (OPTIONAL)
40 1 911643 HARNESS, POWER, TRACTION, S-20
41 1 911670 HARNESS, POWER, ORBITAL, S-20
42 1 911688 HARNESS, POWER, S-24XM
43 1 911667 HARNESS, SIGNAL, DISK, S-20
44 1 911668 HARNESS, SIGNAL, ORBITAL, S-20
45 4 980029 WASHER, LOCK, STAR, EXTERNAL
46 2 856608 PLATE, MOUNTING
47 1 855111 LABEL, QR CODE, S-20
