PAL EVEN GLOW - Guides and Warnings; Important Information; Canadian Installation

2 3
WET NICHE INSTALLATION

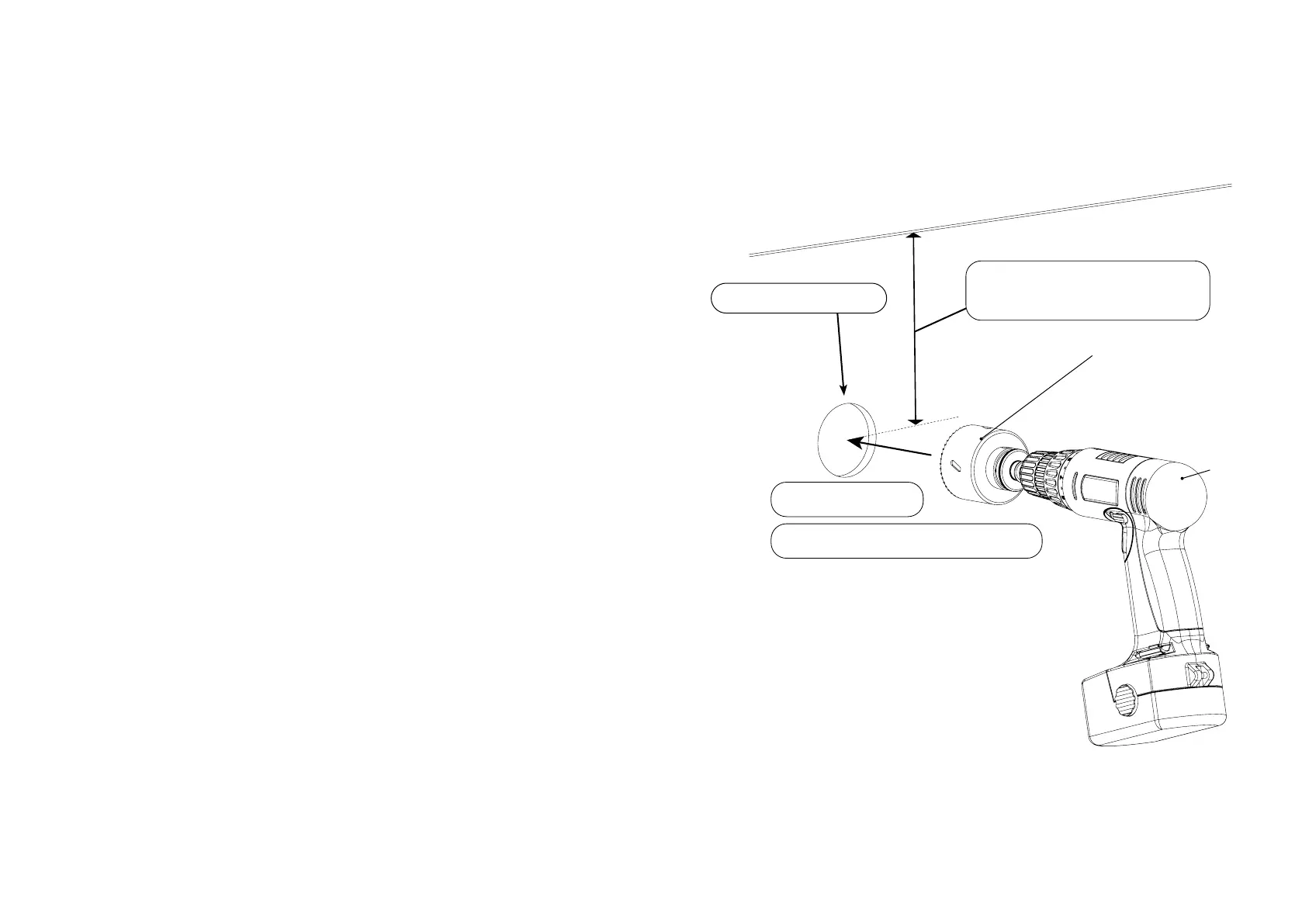

Drilling hole in breglass and vinyl pool
Drill holes through pool wall.
The hole should be placed 12” below the water
level or 18” below the top of the pool to enable
the retractable part of the tting to be taken out of the
pool if the lamp in the pool has to be replaced.
Drill into a at, easily accessible
area of pool wall.
After the hole is cut out, clean the area around the
hole to remove rough spots and dust.
Drill
Ø 2 ⅜” or
Ø 2 ½” Holesaw
CONTENTS
PAGE
2 Guides and Warnings
3 Nicheless Installation
6 Connecting Light
7 Connecting to driver
8 Troubleshooting
8 Terms and Conditions
GUIDES AND WARNINGS
Tools Required:
Ø 2 ⅜” or Ø 2 ½” Holesaw
Drill
Silicon + caulking gun
IMPORTANT INFORMATION:
1) Ensure that the electrical system for your pool conforms with all the requirements of the National
Electrical Code (NEC) and all relevant local codes and ordinances.
2) This 12V Underwater Light must be installed in accordance with the National Electrical Code by
a Certied Electrician or a Qualied Pool Technician. NOTE: No Bonding Terminal is required on
the forming shell since the xture is an all plastic construction and complies with NEC article 680
Requirements.
3) This Underwater light is designed for use with the PCR-4 AND PCR-2D UL Listed Class 2 LED Driver.
DO NOT CONNECT THIS 12V LIGHT DIRECT TO A 120V CIRCUIT.
The Junction Box and the low voltage transformer is located at least 4 (four) inches (10.16 cm) above
ground level or eight (8) inches(20.3 cm) above maximum water level, whichever is higher. The Junction
Box must be at least 48 inches (1.22 m) from the edge of the pool.
To be certain that the pool or spa electrical system meets all applicable requirements, the electrician
should also consult the local building department.
CANADIAN INSTALLATION 1.5” WALL FITTING
Be sure the electrical system of your pool conforms with the following requirements of the Canadian
Electrical Code (CE), and all local codes and ordinances. A licensed or certied electrician must install
the electrical system to meet or exceed those requirements before the light and (xture-housing) is
installed.
