PALAZZANI RAGNO XTJ 32 / C - 3.6 Cage Control Panel

Palazzani
Palazzani Industrie spa
OM 386 pag 10 Cap 3

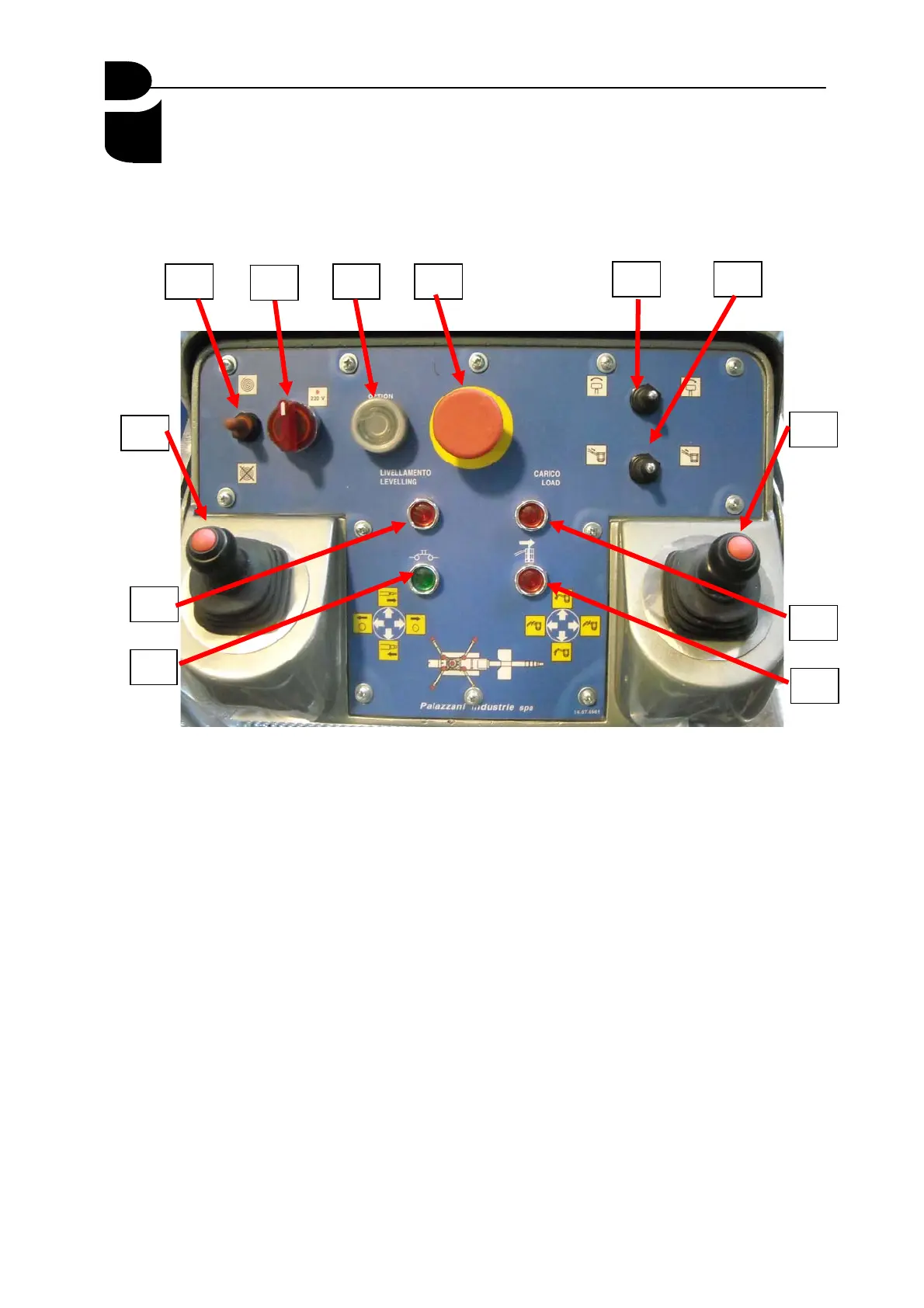

3.6 CAGE CONTROL PANEL
Fig. 3.7
1. Emergency stop button
2. Start/Stop engine
3. Activation current generator
4. Extend/retract jib
5. Cage rotation
6. Joystick activing main boom and jib
7. Joystick activing turntable roatation and telescopic boom
8. Led max outreach
9. Led cage not levelled
10. Led cage overload
11. Led control panel activate.
12. Cage anticollision deactivation
2
9
4
6
7
5
1
3
11
10
8
12
