PALAZZANI RAGNO XTJ 32 / C - 3.5 Ground Control Panel

Palazzani
Palazzani Industrie spa
OM 386 pag 9 Cap 3

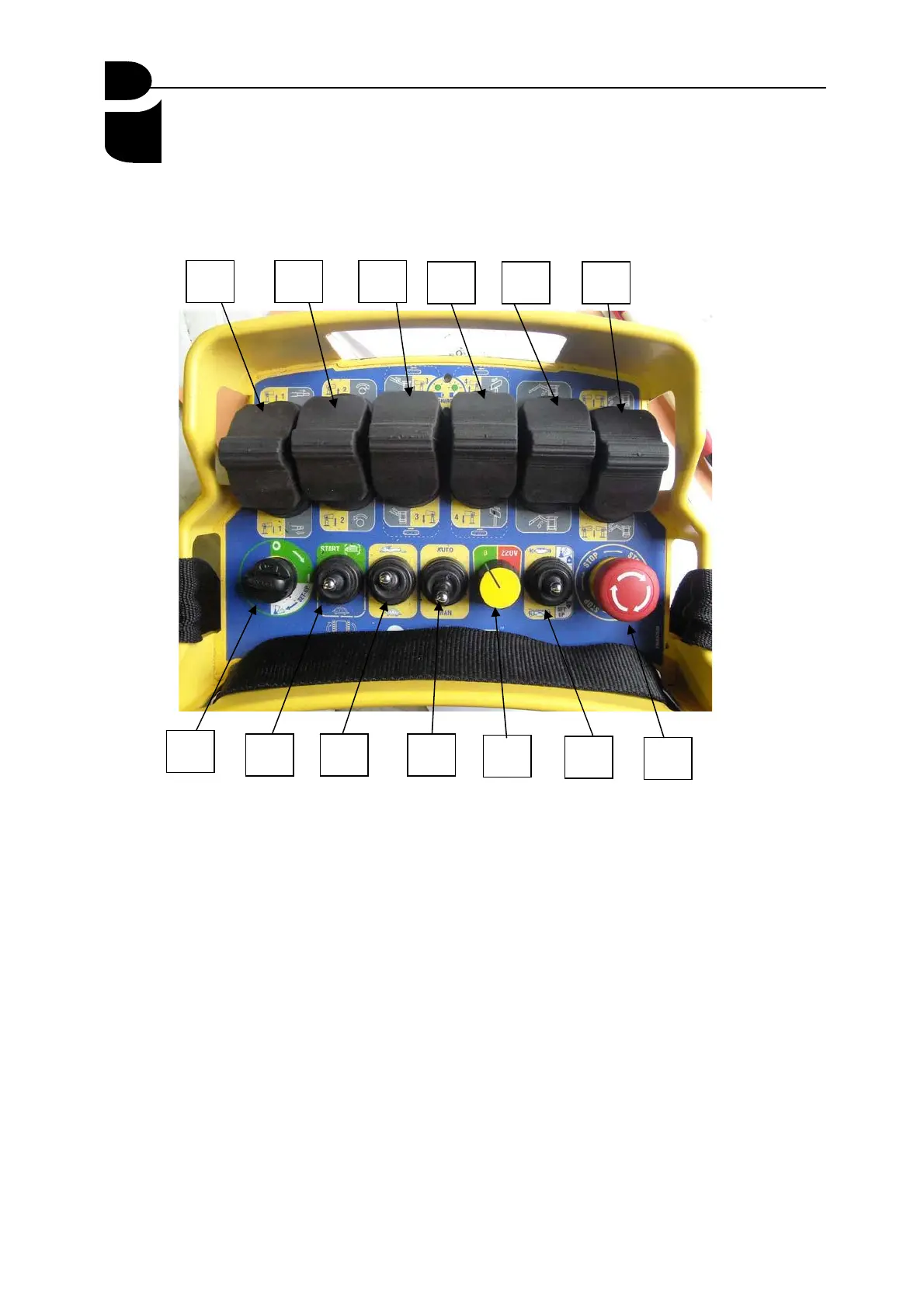

3.5 GROUND CONTROL PANEL
Fig.3.6
1. Stabilizer n° 1 – telescope boom – left track
2. Stabilizer n° 2 – turntable rotation
3. Stabilizer n° 3 – telescope jib
4. Stabilizer n° 4 – cage rotation
5. Jib articulation
6. Stabilizer oil – main boom – right track
7. Radio-control switch on
8. Radio-conrol activation
9. Moving sped slow/fast
10. Automatic/manual stabilizing
11. Opzionale
12. Start/stop engine
13. Stop control
1
6 5 4
3 2
7
8 9 10
11
12
13
