Palazzani
Palazzani Industrie spa
OM 386 pag 14 Cap 3
The stabilisers telescopic extensions can be retracted only for
loading/downloading operation from the truck but they MUST be completely
retracted during elevation booms working.
A different use can cause very dangerous injuries to operators and machine.
Now it is possible to level the machine as following:
• Turn the selecting key pos. 1 of Fig. 3.2 on "legs" symbol (right side)
• Check that the green light on the turntable will be switched on.
• You have two possibility to levelling the machine:
o Automatic mode: switch on “Auto” the selector pos. 10 fig. 3.6. Activate
the joystick pos. 1 fig. 3.6 to give the direction of
the movement, and at the same time push
forward the joystick pos. 6 of the same picture, to
give oil to the stabilizer. In this modality the
machine levelling automatically and when the
frame is in horizontal position, the system stop
the stabilizer movements. Note: check always
the correct level of the frame using the visual bubble on the frame.
o Manual mode: switch the pos. 10 fig. 3.6 on “Man”. Activate the
joystick from pos. 1 to 4 fig. 3.6 to give the direction movements for
each stabilizer and at the same time push forward the joystick pos. 6 of
the same pictures, to give oil to the stabilizer. In this modality it’s
possible to move separately every stabilizer.

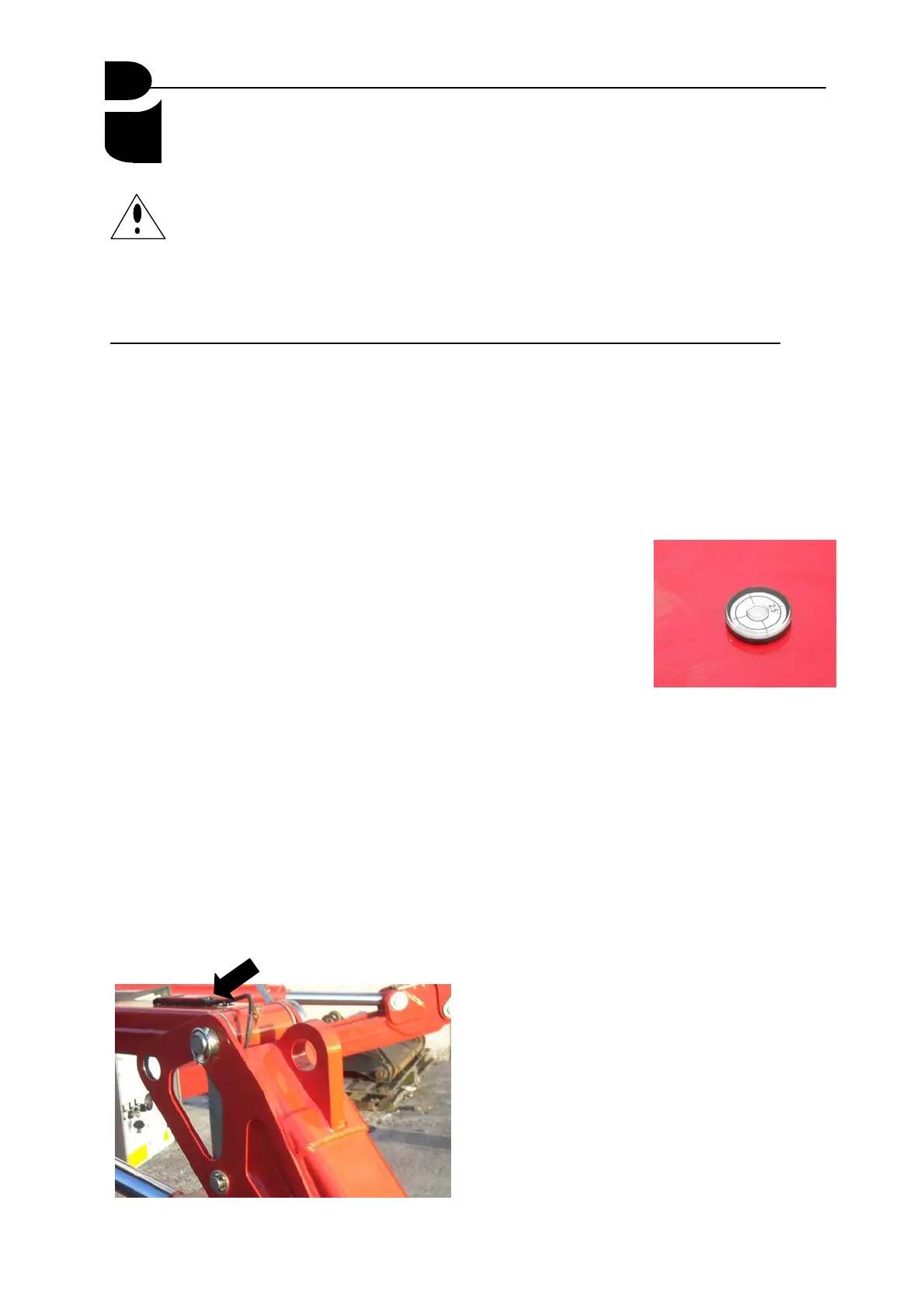

• When the machine is leveled, the four light on the stabilizer (fig. 3.13)
switch off. Attention! This do not ensure the correct levelling of the
machine; before use the platform, check the correct levelling by means of
the bubble on the frame.
Fig. 3.13
NOTE: When the machine is livelled, it’s
recommended (by means of the manual
procedure) to give a short impulse, without
movement of the frame, to the four
