operator, training courses, etc.).
After the cage access, before making any control, fix the safety belt (which must
have a rope not more than 1 m lenght) to the proper rings (Fig. 3.20).
To control any movement, act on the corresponding lever, avoiding sudden and
brusque manoeuvres.
First lift the first boom around 45° and than open the jib to get away from the
boom; then you can procede with turntable rotation and telescopic extensions.

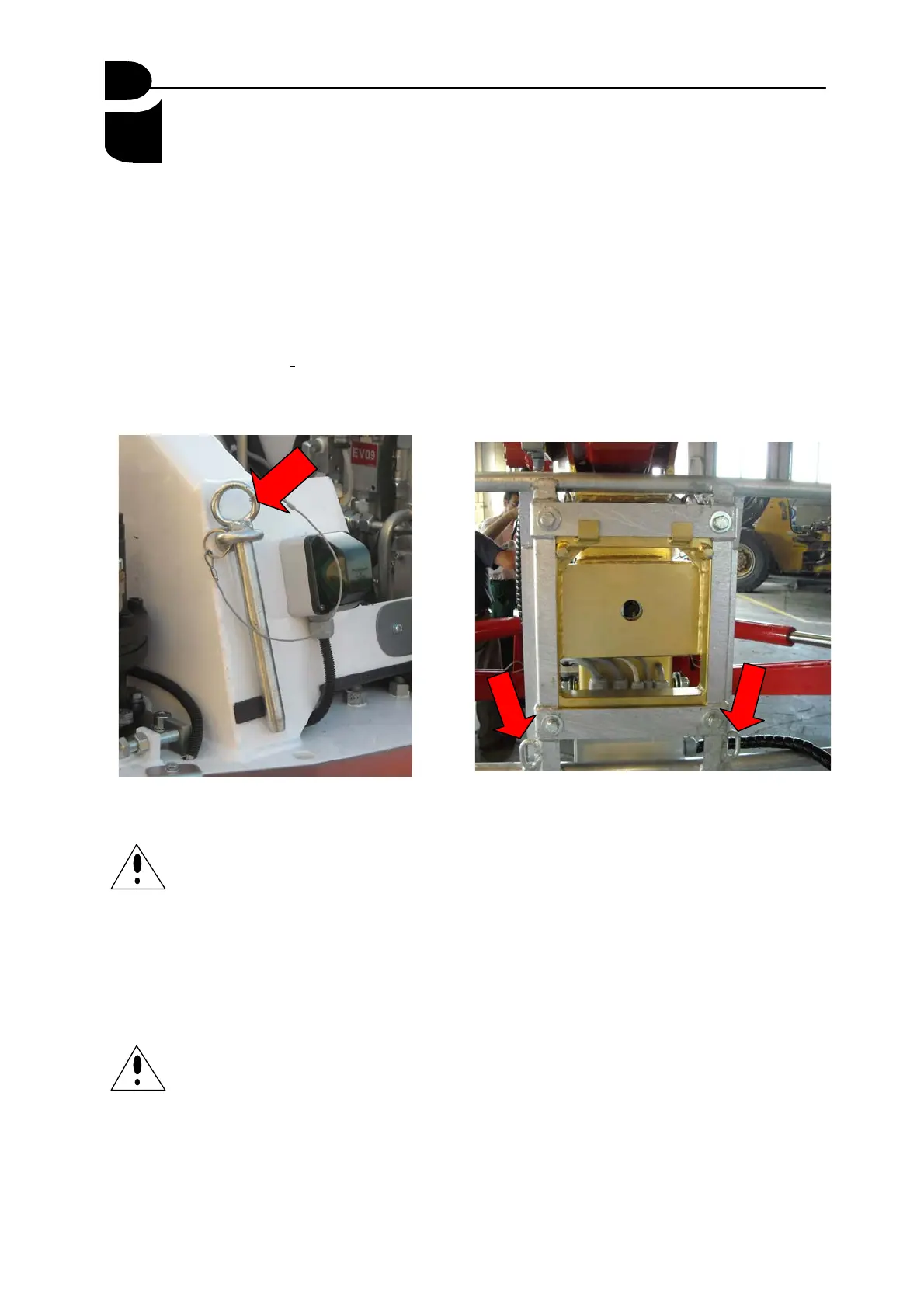

Fig. 3.19 Fig. 3.20
Do not make abrupt manoeuvres or sudden inversions in movements to not
counterblow the cage.
The more the telescopic are extended the lower must be the transfer.
To go back to rest position, retract the extension completely, close the jib,
straighten the cage eventually rotated, put the chassis on axle rotating the turntable
and lower with the first boom until the green light switch on (Fig. 3.17).
The above mentioned green light activates only when the booms are:
completely retracted, on the longitudinal axle in respect to the chassis towards the
diesel engine, lowered below a certain angle.
From this moment it is possible to lift the stabilisers selecting the stabilisers
symbol with the key 1 Fig. 3.2 and proceeding as described in the paragraph 3.12.
