OM 386 pag 22 Cap 3
N.B.: After 10° of inclination all movements stop and any by-pass is possible.

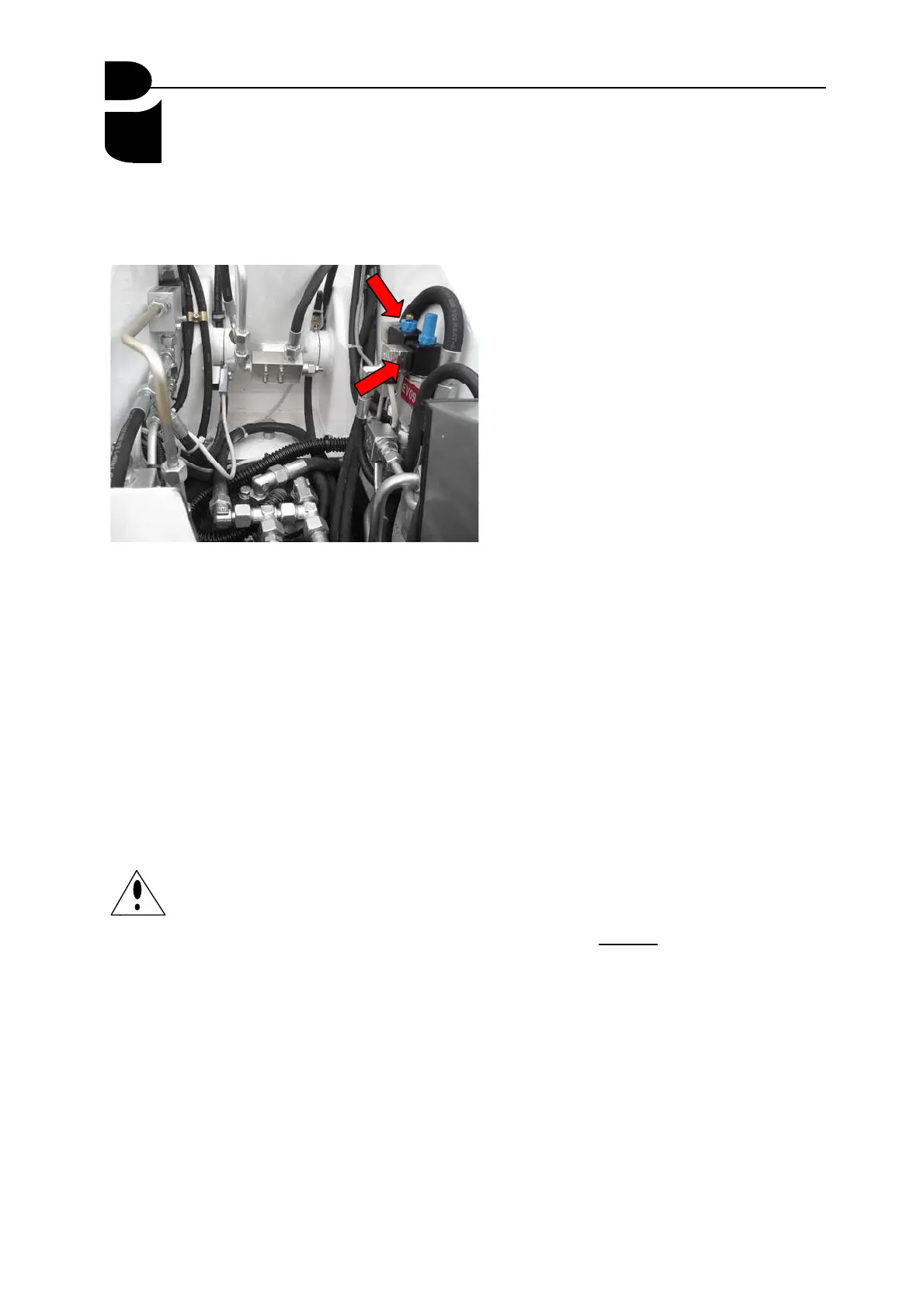

Fig. 3.24
If this happens:
• inside the turntable fig. take of the lead at the valve Fig. 3.24 marked with
EV9 and and unscrew the blue cap.
• push and rotate the cursor.
• while pushing the button on the valve marked with EV10 act one manual
lever of boom or jib lifting/lowering from one of the activated control panels
until the cage returns vertical
In this way all service controls re-activate.
It is compulsory necessary to unlock the valve, put the cover, lead and write
the cause for having taking off the lead on the manual before
going back to work
with the service controls.
