3.18 ELECTRONIC INCLINOMETER
Acoustic
code
Alarm
description
12 rings Electro-mechanical bubbles in short circuit
11 rings Permanent damage – repairable only by ISB S.r.l.
10 rings Machine parameters not correct - send correct parameters
9 rings Temperature over the allowed values
8 rings Feeding tension over the allowed values
7 rings Clockwise movement valve spool in court circuit or disconnected
2 rings Platform inclination out of permitted limit
Note 1
The system generates a permanent alarm when an irreversible error can occur and the
safety of the machine users could no more be assured. When this alarm activates, the
machine is maintained in functioning condition only to allow the user on the cage to reach
the ground. In these conditions, the light alarm displays 11 blinking, while 25 sec of
acoustic alarm activates every 60 sec.
Note 2
The weight pre-alarm is indicated by a continuous acoustic alarm, interrupted by
intervals of about 1 sec. This is for better hear the alarm
Fatal error
If the ecu system makes a permanent acoustic alarm (the light is permanent switched on),
the system is no more working. The level and weight regulation will be permanently
deactivated.

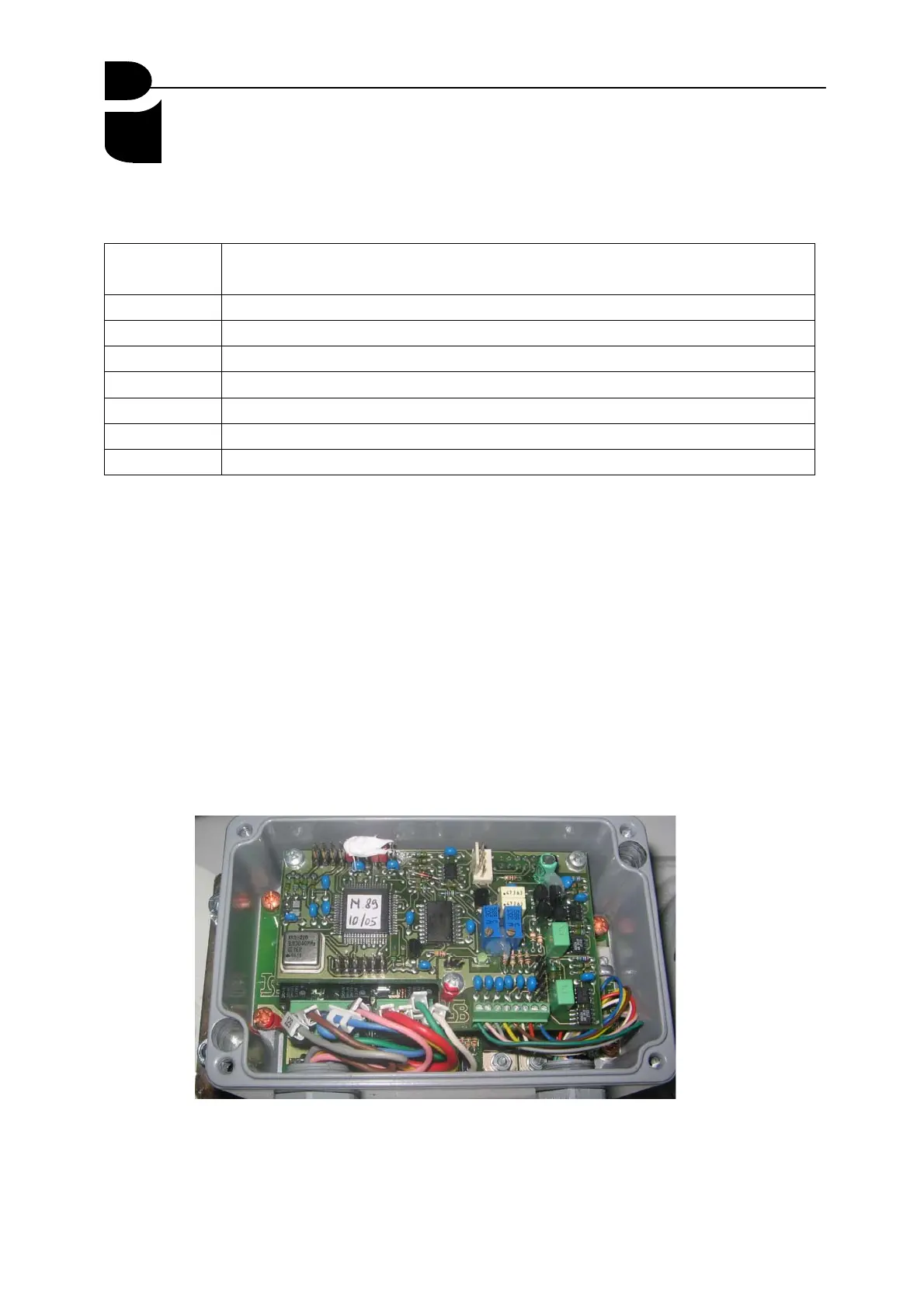

Fig. 3.26
