3.25 DIAGNOSTIC
On the machine is fitted a touch screen interactive display located on the main
electrical box (Fig. 3.36), and it’s function is to monitoring the work cycle of the
machine.
Additional the monitor has a diagnostic function.

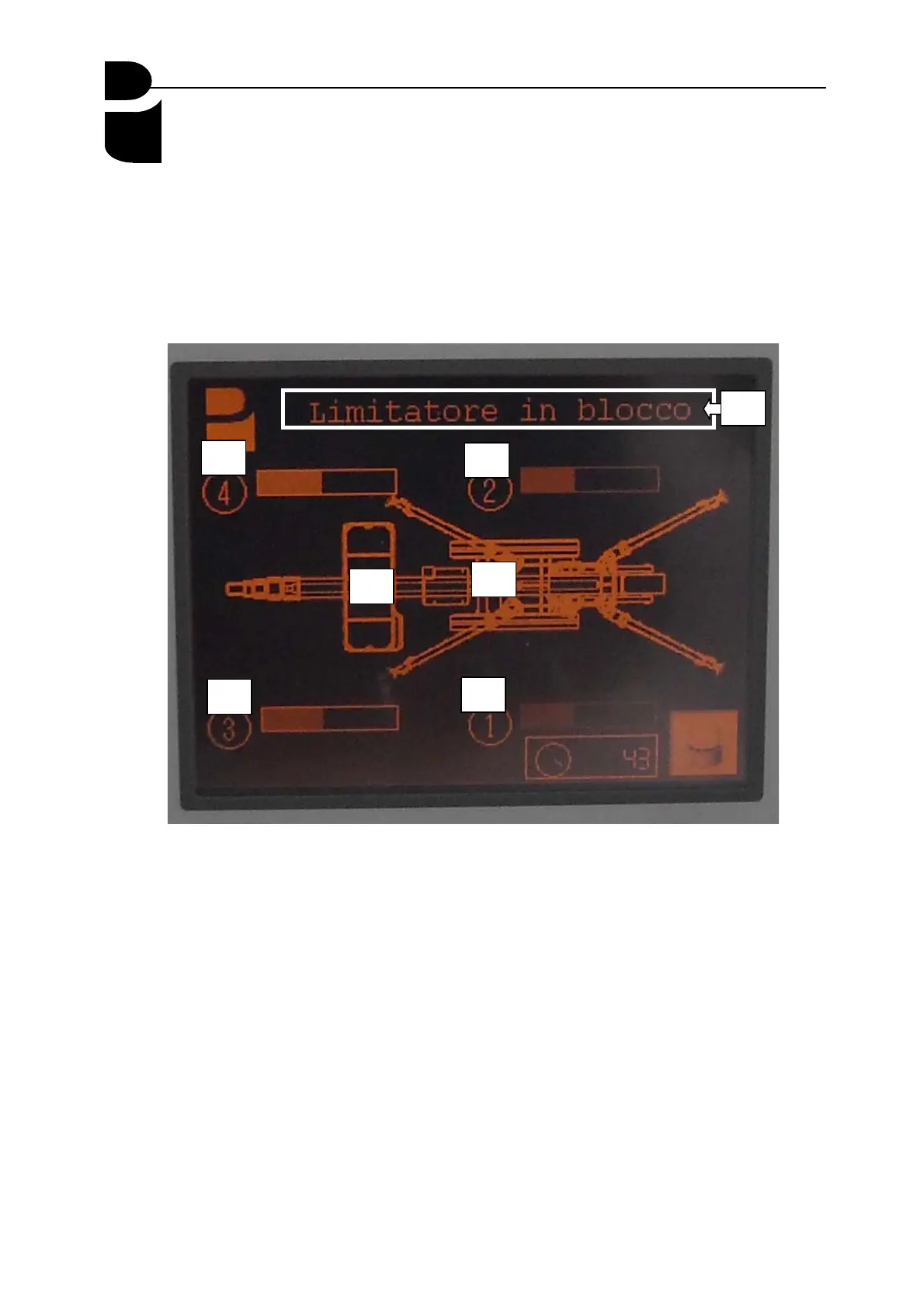

Fig. 3.36
Touching the area A it’s possible to read the instantaneous value of the pressure on
the pertinent stabilizer. The number is not indicative of a force or pressure, but it’s
only a value given from the sensor and it’s range is between 1000 and 25000
(when the load is maximum).
Since on every stabilizer there are two sensor, for redundancy, touching the area A
it’s possible to read the channel “a” and the channel “b”; if the difference of the
two value is over 1000, the machine stop because some sensor has a problem.
Touching the area B, it’s possible to view the value of the sensors, channel “a” and
“b”, of the four stabilizer on the same page.
Touching the area C, it’s possible to view the parameters setted by Palazzani for
the control of the sensor. For details of this value, contact the service department of
