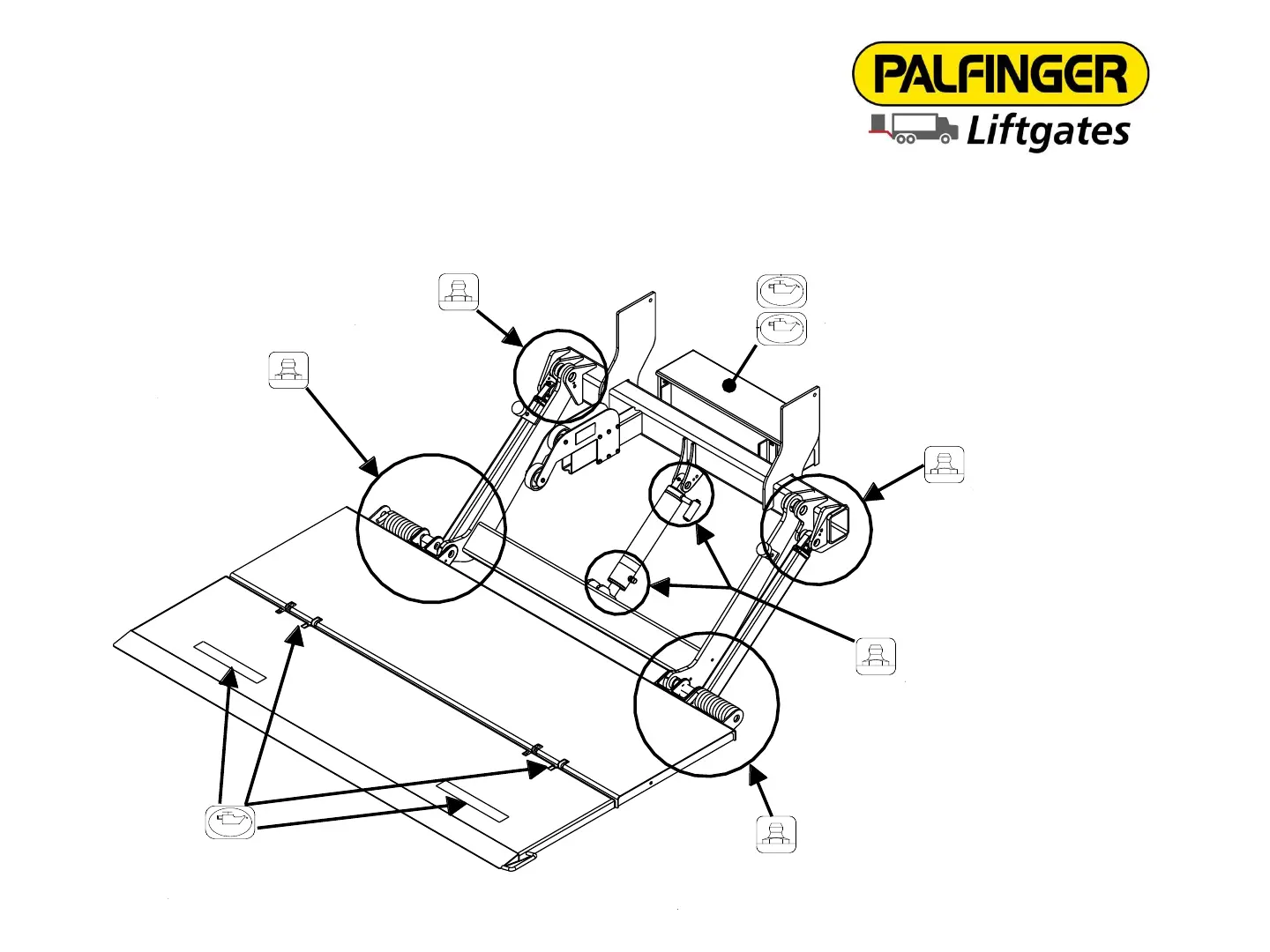

PLR Single Cylinder - Lubrication
1. Lower the platform to the ground.
2. Remove red protector caps from each zerk. Lubricate, grease, and oil per diagram below.
3. Cycle platform up and down several times. Lubricate and grease all points again.
4. Wipe any excess grease and cap all zerks.
3 Zerks:
- 1 Lift arm
- 1 Parallel arm
- 1 Shackle
2 Zerks:
- 1 Lift arm
- 1 Parallel arm
Open enclosure to
check and refill oil.
IN
OUT
2 Zerks:
- 1 Lift arm
- 1 Parallel arm
3 Zerks:
- 1 Lift arm
- 1 Parallel arm
- 1 Shackle
IN
-Platform Hinges
-Cart Stops (if installed)
3 Zerks:
- 3 Cylinder
