24

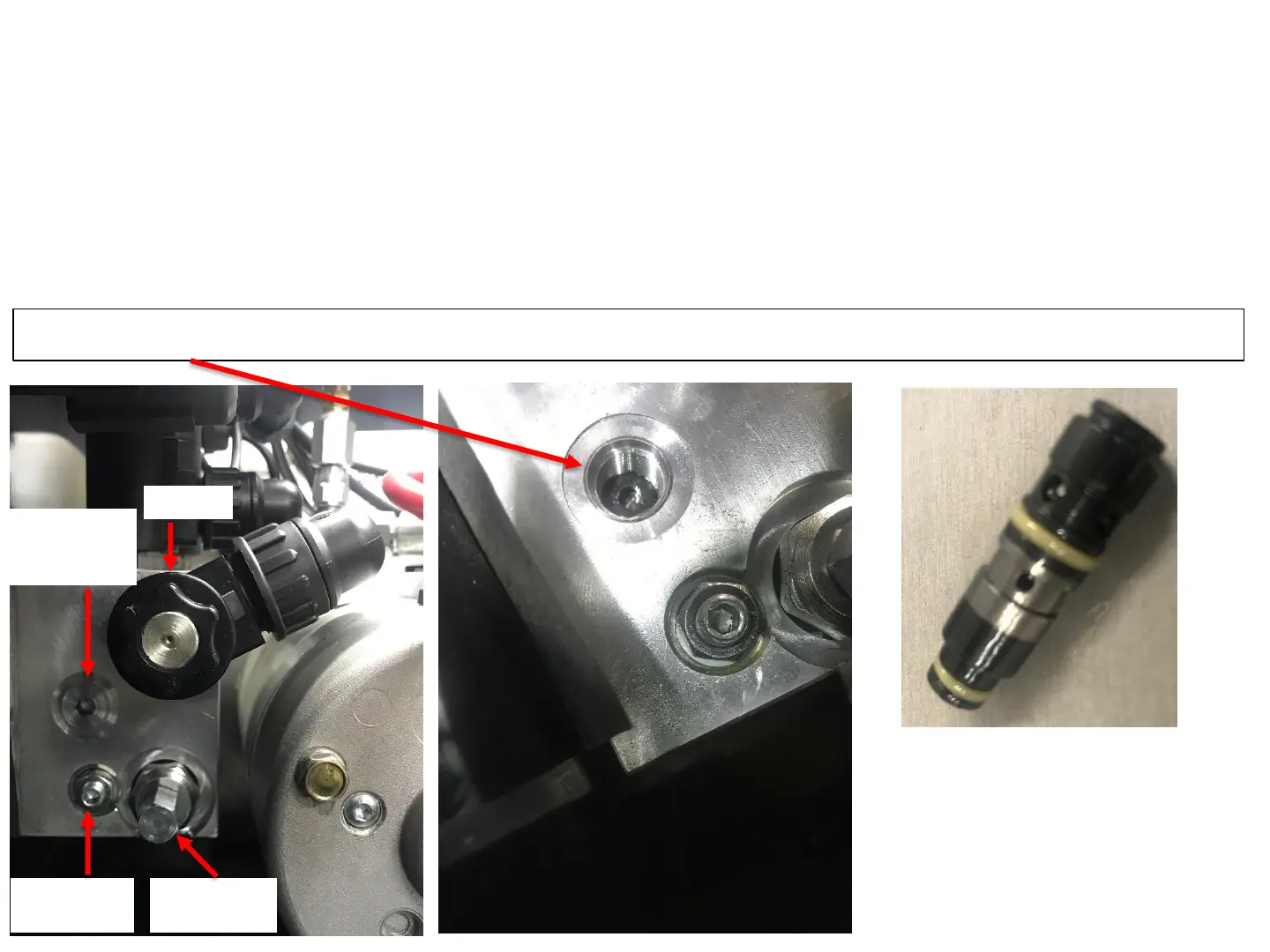

PTV Primary Pump Valve Block Setup Location of Pilot
Operated Check Valve for Open & Close
Circuit board cover
Pilot Operated Check Valve located behind ¼” Allen plug use needle nose plyers to remove
Allen Plug Removed
Low Pressure
Adjustment
High Pressure
Adjustment
S5 Valve
Pilot Operated
Check Valve
Location
