PALI Crib - Step 3 a: Mattress Base Assembly (Lower Position)

3a

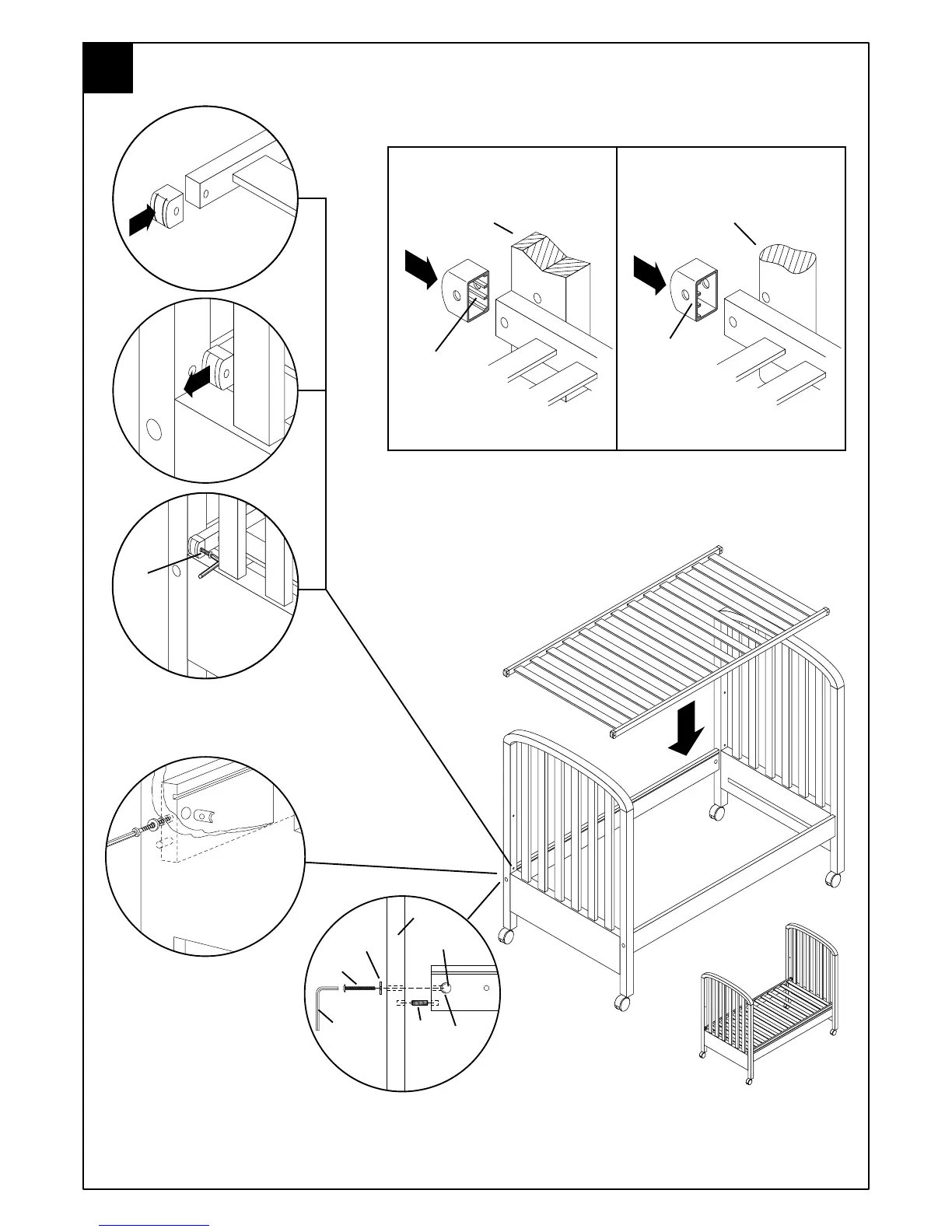

HEADBOARD/FOOTBOARD (ENDS) ATTACHMENT TO RAILS. You will now attach headboard/footboard (ends) (N) to the rails.
Place a curved fastener plate (F) into the large holes on inside of the rails (P) (refer to Diagrams 3 and 4 for placement).
Insert each allenhead bolt (long) (B) into holes located in both ends (N), and into hole in end of rails (P) until seated in
threads of holes in curved fastener plates (F).
Assembling crib and positioning of mattress base
Diagram 3
Diagram 4
F
P
K
N
N
P
P
H
N
D
B
E
P
receiving
hole
F
E
B
D
H
N
K
N
A
H
Mattress base
lower position
K
I
IMPORTANT: follow carefully the illustrations below.
Correct positioning of the plastic
caps to the mattress support frame
in cribs with headboard/footboard
with rectangular posts
IMPORTANT!
Make sure grooves
are toward
the outer side
of mattress
support frame
Correct positioning of the plastic
caps to the mattress support frame
in cribs with headboard/footboard
with rounded posts
IMPORTANT!
Make sure grooves
are toward
the inner side
of mattress
support frame
I
N
N
I
K K
