14
EN
USER MANUAL

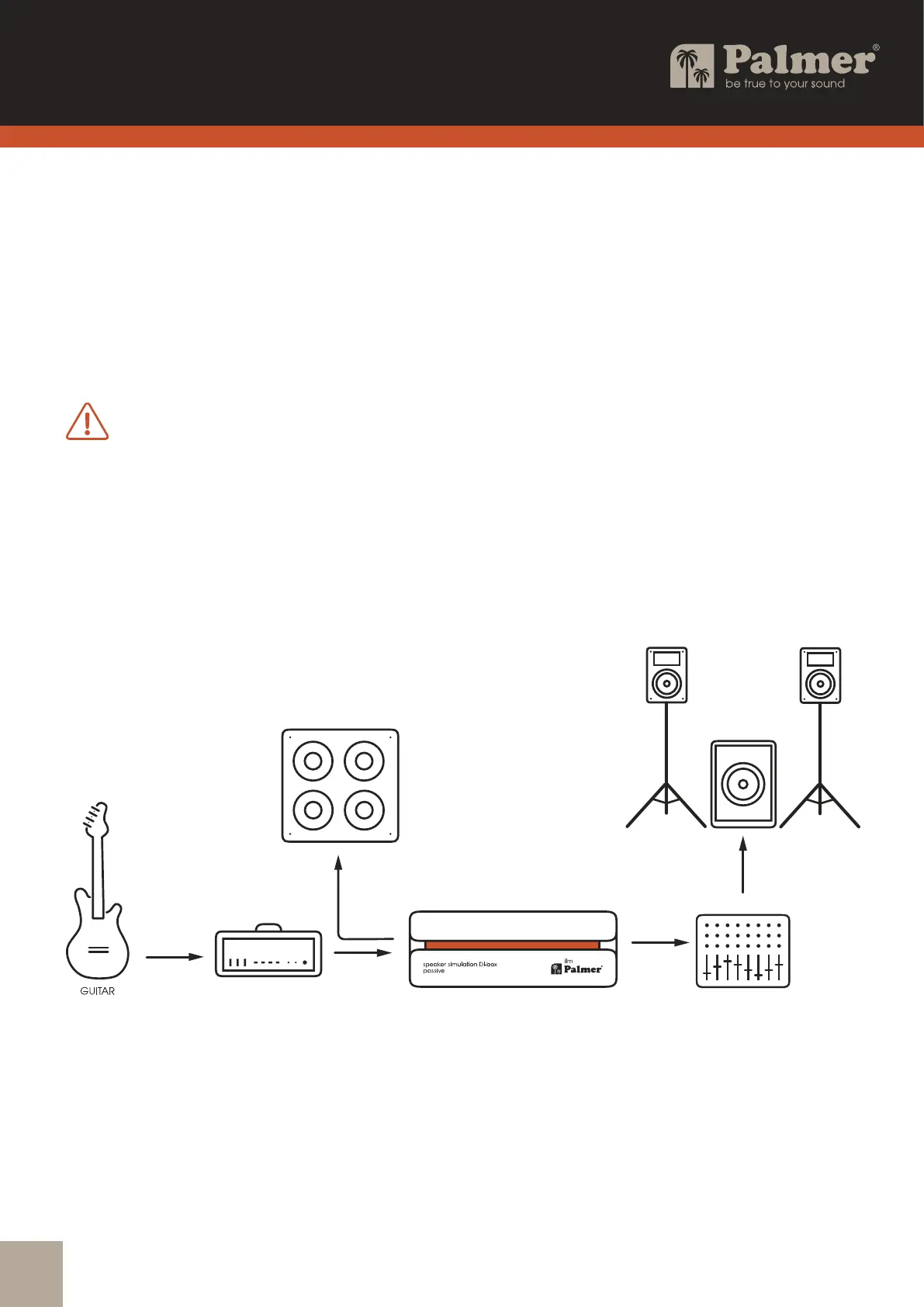

WIRING EXAMPLES
5. OUTPUT
Balanced audio output with a male 3-pin XLR socket. Use a balanced shielded cable (microphone cable) to
connect the speaker simulation DI box to a balanced input of a mixer or audio interface.
6. LIFT/GND
Switch for disconnecting the ground connection from the input and output (ground lift). In the unpressed position,
the ground connection is disconnected; the connection is established when the switch is pressed. Being able to
prevent a humming loop using the ground lift switch depends on the grounding of the connected device. It is
therefore possible that both one and the other switch position is able to effectively reduce or eliminate humming.
ATTENTION: Connecting signal cables can cause a lot of noise. Please ensure that the input
channel (mixer, audio interface, etc.) is muted during plugging. Otherwise, noise levels may cause damage.
PLEASE NOTE: Strong magnetic elds can cause humming. Therefore, do not position the speaker simulation DI box
near strong magnetic elds (e.g. mains transformer).
MIXER
OUTPUT
PA
INPUT
SPEAKER CARBINET
AMPLIFIER
THRU
