Panasonic AJ-D950 - Parts and Sensor Location

1-3

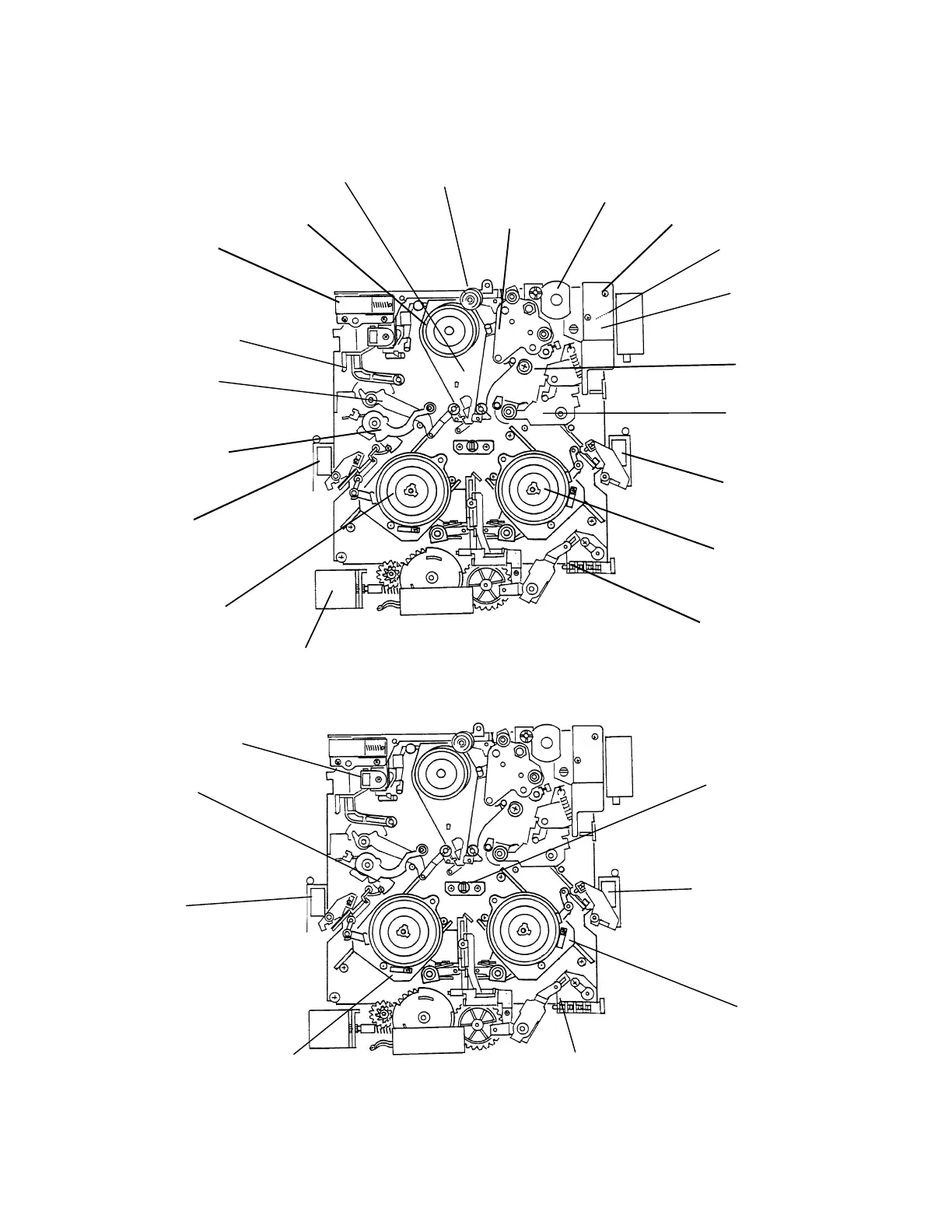

2. Parts and Sensor Location
2-1. Type of VTR (except Camera Recorder)
Tape Detect
LED
Tape Beginning
Detect Sensor
T-Reel FG
Sensor
S-Reel
FG Sensor
Dew
Sensor
Tension
Sensor
Tape End
Detect Sensor
Reel Position Sensor
1. Cylinder Ass’y
20. Cleaner Solenoid
13. A/C Head
14. Loading Motor (1) AU
16. Mode SW Unit
17. Pinch Solenoid
5. Trust Screw Unit
18. T-Brake Solenoid
18. S-Brake Solenoid
4. S-Reel Rotor
4. T-Reel Rotor Unit
15. Reel Drive Motor Unit
9. Tension Arm Unit
8. S5 Post Base A Unit
7. T1 Boat Unit
3. Cleaning Arm
21. Main Cam Gear
6. S1 Loading Arm
Unit
2. Pinch Arm Unit
19. Distinction SW Unit
