Compatible with HD/SD cameras
worldwide.
Optional boards enable expansion of inputs/outputs (up to two of each).
The photograph above is an image with the AV-HS04M3 (top right)/AV-HS04M2 (bottom right)/ AV-HS04M5 (top left)/ AV-HS04M4 (bottom left) added.
Sports Arena
Option Slot x 2 (INPUTS)
SDI OUTPUTS
Option Slot x 2
(OUTPUTS)
SDI INPUTS RS-422 Interface
Reference(REF) Input/BB Output TALLY OutputLAN Port
GPI Input
Ground
Power inlet
POWER
Switch
Rear

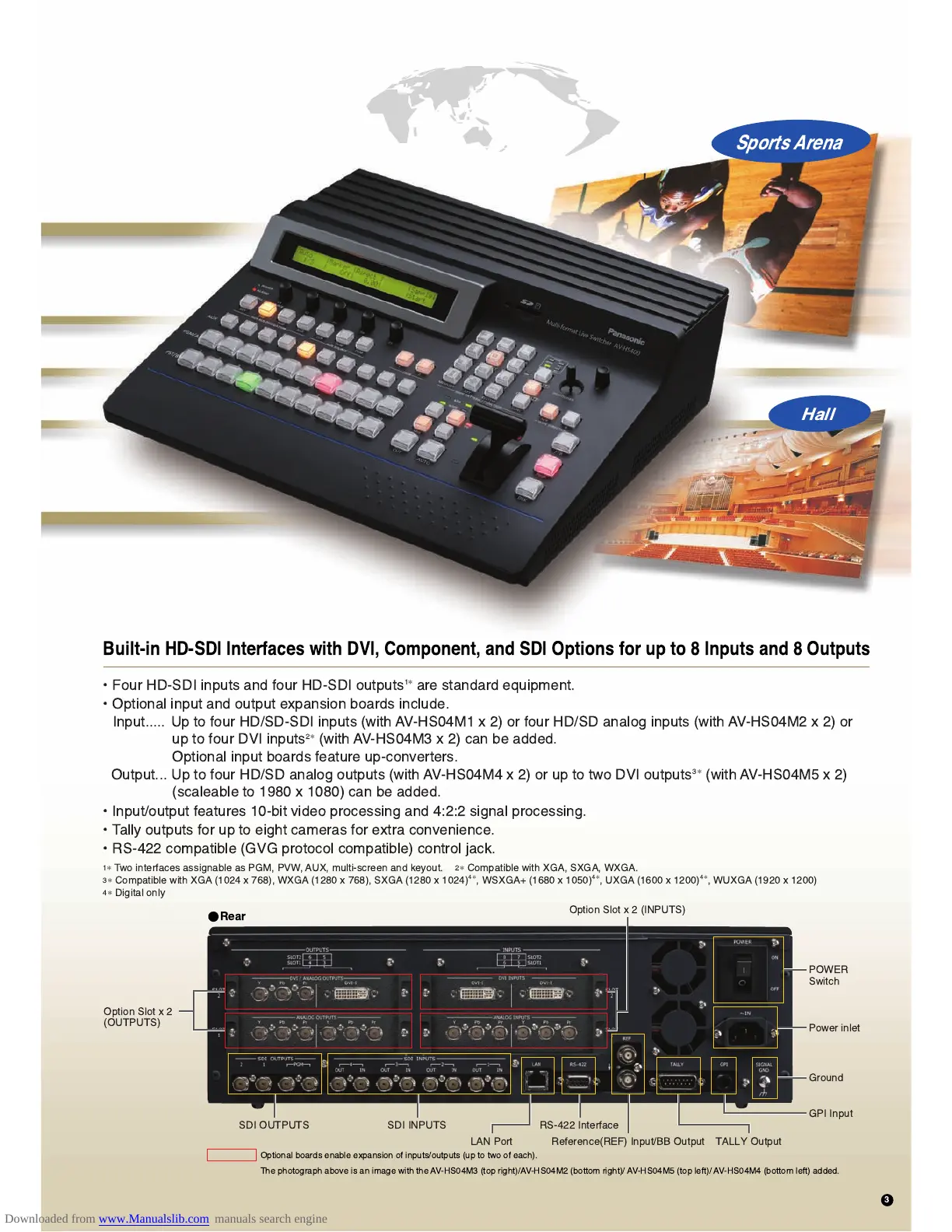

Built-in HD-SDI Interfaces with DVI, Component, and SDI Options for up to 8 Inputs and 8 Outputs
¥ Four HD-SDI inputs and four HD-SDI outputs
1
*
are standard equipment.
¥ Optional input and output expansion boards include.
Input..... Up to four HD/SD-SDI inputs (with AV-HS04M1 x 2) or four HD/SD analog inputs (with AV-HS04M2 x 2) or
up to four DVI inputs
2
*
(with AV-HS04M3 x 2) can be added.
Optional input boards feature up-converters.
Output... Up to four HD/SD analog outputs (with AV-HS04M4 x 2) or up to two DVI outputs
3
*
(with AV-HS04M5 x 2)
(scaleable to 1980 x 1080) can be added.
¥ Input/output features 10-bit video processing and 4:2:2 signal processing.
¥ Tally outputs for up to eight cameras for extra convenience.
¥ RS-422 compatible (GVG protocol compatible) control jack.
1
*
Two interfaces assignable as PGM, PVW, AUX, multi-screen and keyout.
2
*
Compatible with XGA, SXGA, WXGA.
3
*
Compatible with XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024)
4
*
, WSXGA+ (1680 x 1050)
4
*
, UXGA (1600 x 1200)
4
*
, WUXGA (1920 x 1200)
4
*
Digital only
