Panasonic AW-E600 - CONNECTION WITH MULTIPLE CAMERAS (COLOR LOCK MODE)

-18-

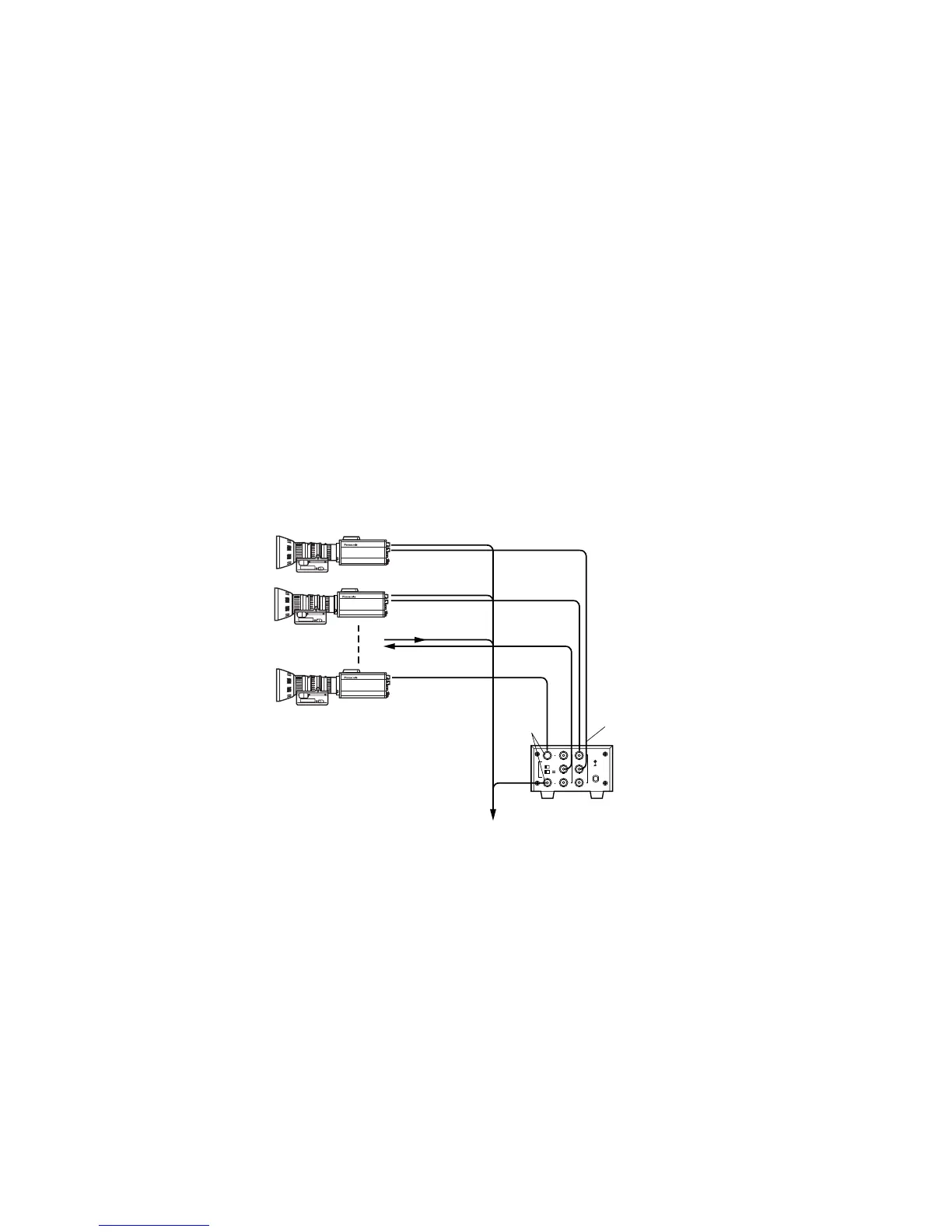

■ CONNECTION WITH MULTIPLE CAMERAS (COLOR LOCK MODE)
● An example of connection for VBS/BB input (Color lock
mode).
• One of the multiple cameras is used as the source of ref-
erence signals.
• Supply a synchronizing signal (BB) to the G/L Input
Connectors of each cameras.
• Do not switch off the camera used for supplying the
reference signals.
• Adjust the SC-phase and H-phase at the Video
Output Connector.
1
2
3
1
2
3
OUTPUT BOUTPUT A
INPUT
THR SEP
75Ω HI-Z
B
A
Convertible Camera AW –
E600
Convertible Camera AW –
E600
Convertible Camera AW –
E600
VIDEO OUT
CAMERA
Camera for External Sync
(or Special Effect Generator)
G/L IN
VIDEO OUT
OUTPUT
INPUT
Video Output
To Special Effect Generator or Monitoring System
Video
Distributor
WJ-300C
External Sync
Signal (BB)
