Panasonic AW-E600 - TOTAL PEDESTAL LEVEL ADJUSTMENT

-24-

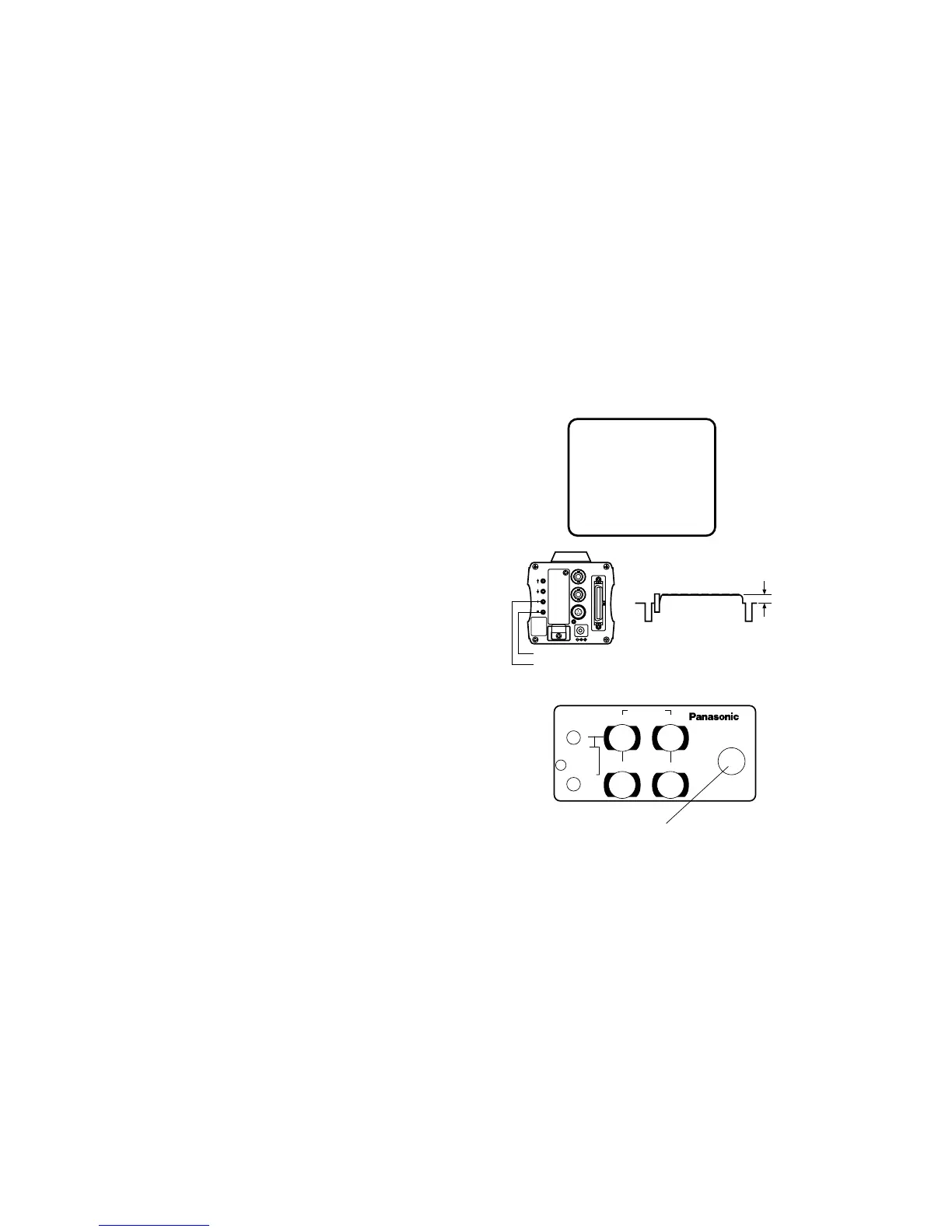

■ TOTAL PEDESTAL LEVEL ADJUST-
MENT
(Use an oscilloscope or a waveform monitor for this
adjustment.)
This step is to adjust the black levels (pedestal levels)
of two or more cameras to be the same.
[ADJUSTMENT by CAMERA]
1. Close the lens.
2. Select Pedestal item in the brightness setting Sub
Menu (Select [Pedestal] in the [Iris, Shutter, Gain
Set] sub menu in USER MODE.)
3. Set the pedestal level to 5 IRE (0.035 V) with the
YES/ABC switch or the NO/BAR switch.
[ADJUSTMENT with RCU (RCB, Hybrid control panel)]
Adjust the pedestal level to 5 IRE with the total pedestal
adjustment.
**Brightness Set**
Picture Level ±0
Light PEAK/AVG 0
Light Area Top cut
Auto ND ( ELC) OFF
Auto Gain Up OFF
Manu Gain Up 0dB
Pedestal ±0
Contrast(Gamma) MID
Return
VIDEO OUT
G/L IN
I/F REMOTE
OPTION CARD
IRIS
DC12V IN
MENU
ITEM/AWC
YES/ABC
NO/BAR
NO/BAR switch
YES/ABC switch
5 IRE
(0.035 V)
R B
R B
PED
TOTAL
PED
A
B
ATW
AWC
AUTO
HOLD
ABC
AUTO/ATW
PAINTING
GAIN
TOTAL PEDESTAL
