C1381

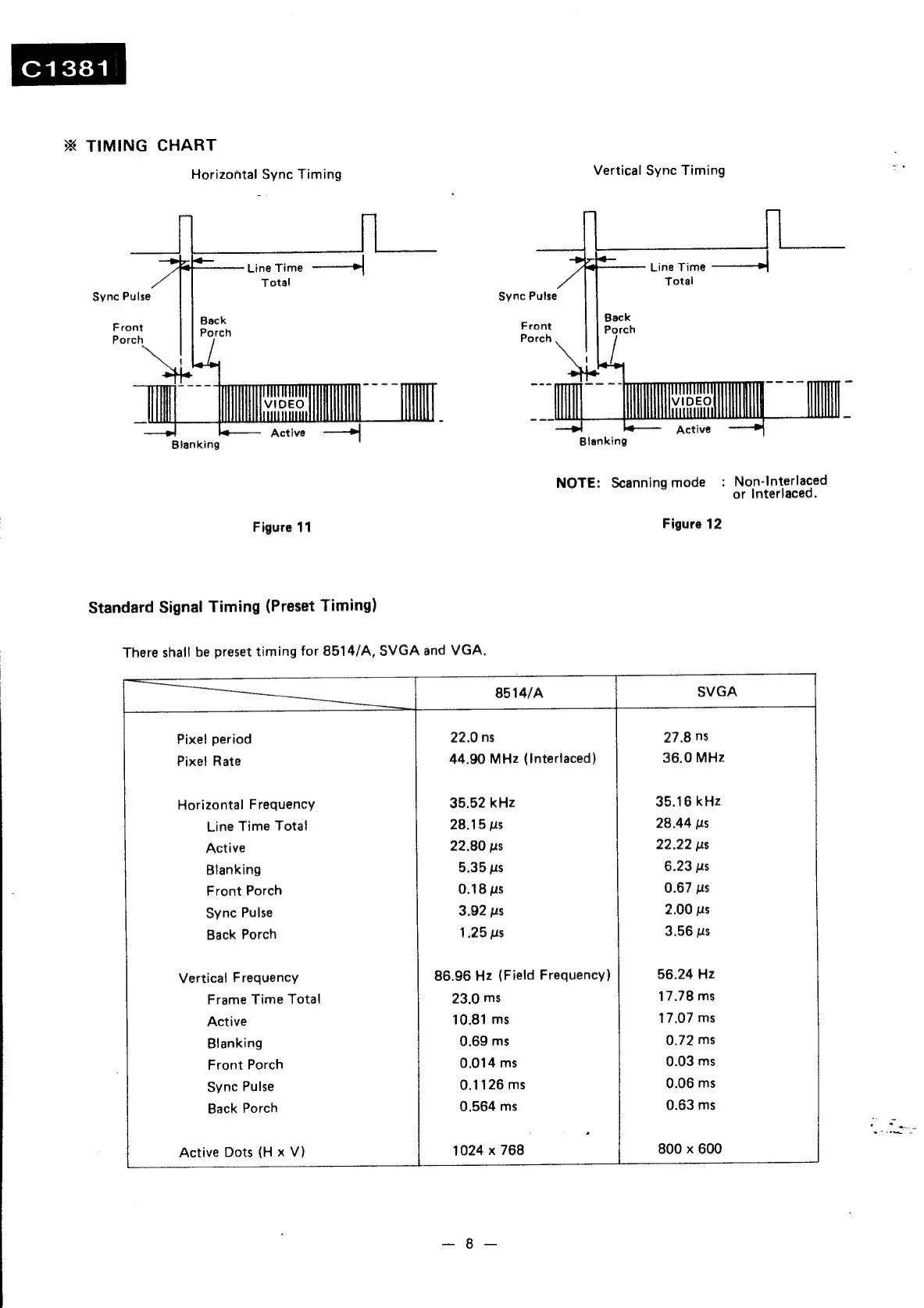

*% TIMING CHART
Horizontal Sync Timing
Line Time ——+|
Total
Sync Pulse
Active —>|
Blanking
Figure 11
Standard Signal Timing (Preset Timing)
There shail be preset timing for 8514/A, SVGA and
VGA,
Vertical Syne Timing
Line Time poner’
Total
Sync Pulse
Front
Active
Blanking
: Non-Interlaced
or Interlaced.
NOTE: Scanning mode
Figure 12
8514/A
|
SVGA
Pixel
period
22.0
ns
27.8
ns
Pixel
Rate
44.90
MHz
(Interlaced)
36.0
MHz
Horizontal
Frequency
35.52
kHz
35.16
kHz
Line
Time
Total
28.15
us
28.44
pus
Active
22.80
us
22.22
us
Blanking
5.35
ys
6.23
ps
Front
Porch
0.18
ps
0.67
us
Sync
Pulse
3.92
us
2.00
us
Back
Porch
1.25
us
3.56
us
Vertical
Frequency
86.96
Hz
(Field
Frequency)
56.24
Hz
Frame
Time
Total
23.0
ms
17.78
ms
Active
10.81
ms
17.07
ms
Blanking
0.69
ms
0.72
ms
Front
Porch
0.014
ms
0.03
ms
Sync
Pulse
0.1126
ms
0.06
ms
Back
Porch
0.564
ms
0.63
ms
[
Active
Dots
(H
x
V)
1024
x
768
800
x
600
|
ty
i,
