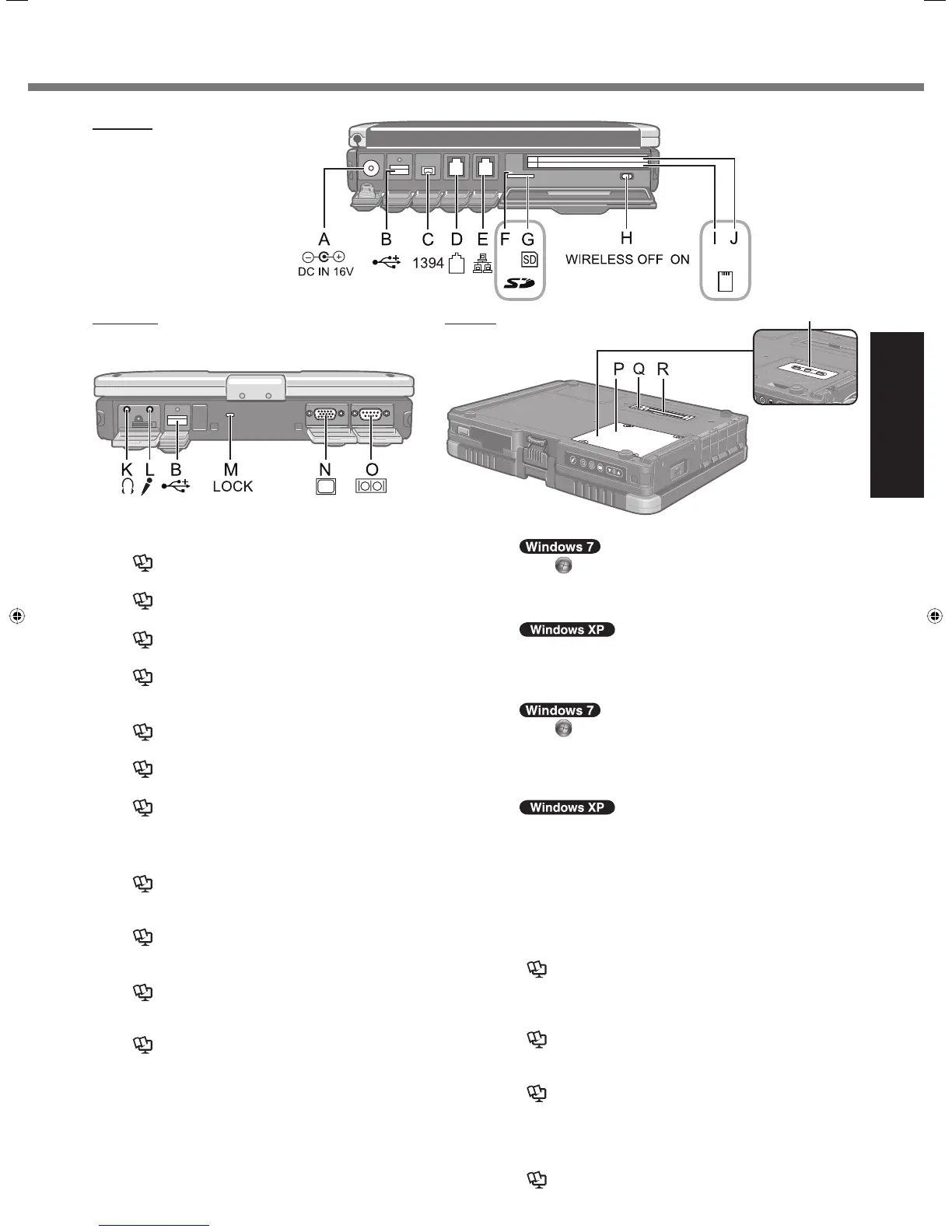

Rear side Bottom
A: DC-IN Jack
B: USB Port
Reference Manual “USB Devices”
C: IEEE 1394 Interface Connector
Reference Manual “IEEE 1394 Devices”
D: Modem Port
Reference Manual “Modem”
E: LAN Port
Reference Manual “LAN”
F: SD Memory Card Indicator
(Blinking: During access)
Reference Manual “SD Memory Card”
G: SD Memory Card Slot
Reference Manual “SD Memory Card”
H: Wireless Switch
Reference Manual “Disabling/Enabling Wireless
Communication”
I: <For model without Smart Card Slot>
PC Card Slot (PC)
Reference Manual “PC Card / ExpressCard”
<For model with Smart Card Slot>
Smart Card Slot (SCR)
Reference Manual “Smart Card”
J: <For model without Smart Card Slot>
ExpressCard Slot (EX)
Reference Manual “PC Card / ExpressCard”
<For model with Smart Card Slot>
PC Card Slot (PC)
Reference Manual “PC Card / ExpressCard”
K: Headphone Jack
You can connect headphones or amplifi ed speakers.
When they are connected, audio from the internal
speakers is not heard.
L: Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur as a result.
When recording in stereo using a stereo microphone:
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] -
[Properties], and then remove a check mark of [En-
able Audio Enhancements] in [Advanced].
Click [start] - [All Programs] - [SoundMAX] - [Control
Panel] and select [Microphone], and then add a check
mark for [No Filtering] in [Microphone Enhancements].
When using a monaural microphone with a 2-terminal plug:
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] -
[Properties], and then add a check mark for [Enable
Audio Enhancements] in [Advanced].
Otherwise, only audio on the left track will be recorded.
Click [start] - [All Programs] - [SoundMAX] - [Control Pan-
el] and select [Microphone], and then add a check mark
for [Voice Recording] in [Microphone Enhancements].
Otherwise, only audio on the left track will be recorded.
M: Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
N: External Display Port
Reference Manual “External Display”
O: Serial Port
P: RAM Module Slot
<For model without Camera>
Reference Manual “RAM Module”
Q: External Antenna Connector
R: Expansion Bus Connector
Reference Manual “Port Replicator / Car Mounter”
S: Camera
<For model with Camera>
Remove the protection seal on the camera before us-
ing the camera.
Reference Manual “Camera”
<Only for model
with Camera>
<Only for model
without Camera>
To Next Page
