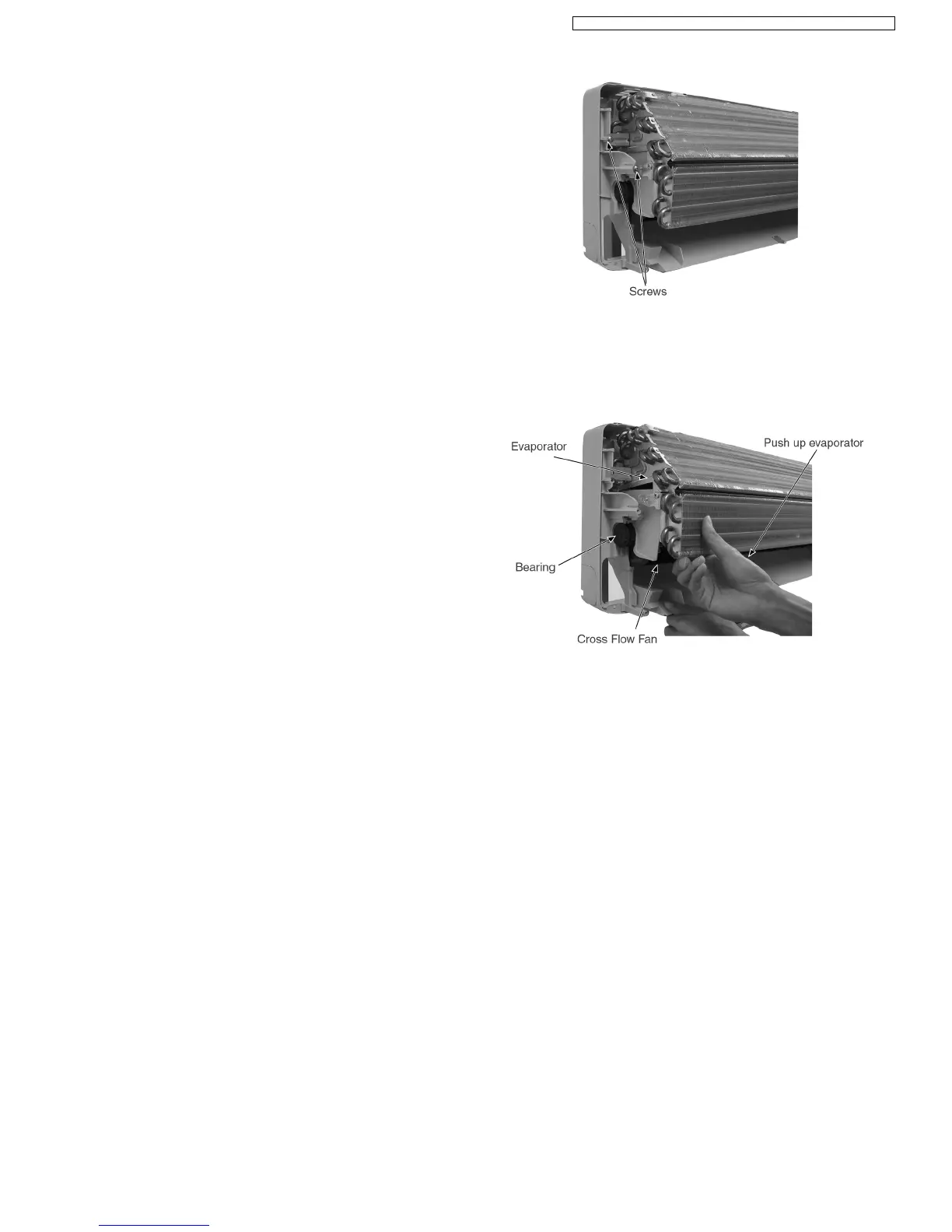

Remove the screws at the left of the Evaporator. (Fig. 8)
Remove the Bearing. (Fig. 9)
Push up the Evaporator and pull out the Cross Flow Fan
from shaft. By then, Fan Motor can be taken out. (Fig. 9)
Fig. 8
Fig. 9
69
CS-A7CKP CU-A7CKP5 / CS-A9CKP CU-A9CKP5 / CS-A12CKP CU-A12CKP5
