Panasonic CS-A12PKD Service Manual

130

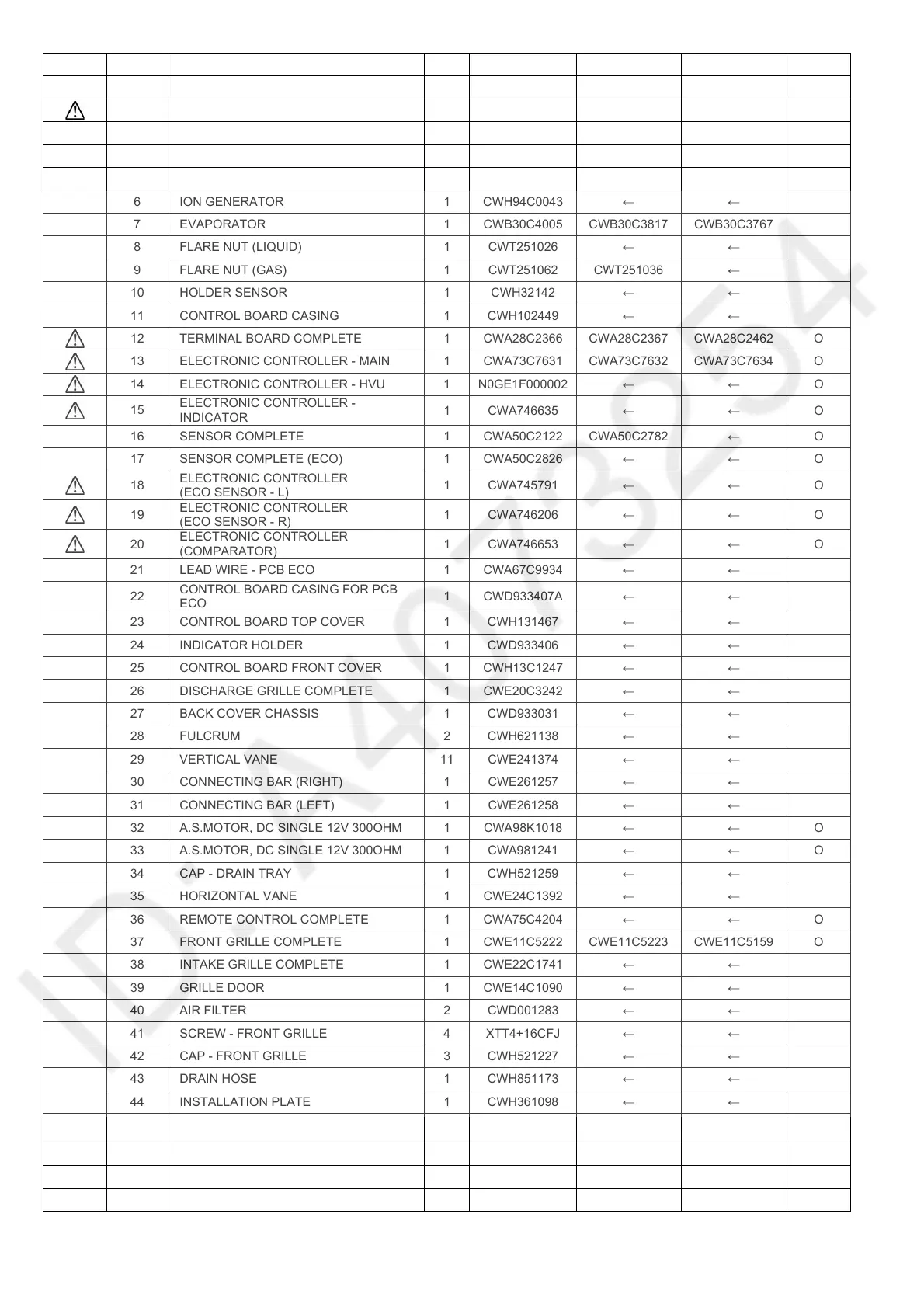

SAFETY REF. NO. PART NAME & DESCRIPTION QTY. CS-A18PKD CS-A24PKD CS-A28PKD REMARK
1 CHASSIS COMPLETE 1 CWD50C1654 ← ←
2 FAN MOTOR 1 ARW7671AC ARW7627AC ← O
3 CROSS FLOW FAN COMPLETE 1 CWH02C1150 ← ←
4 BEARING ASS’Y 1 CWH64K007 ← ←
5 SCREW - CROSS FLOW FAN 1 CWH551146 ← ←
6 ION GENERATOR 1 CWH94C0043 ← ←
7 EVAPORATOR 1 CWB30C4005 CWB30C3817 CWB30C3767
8 FLARE NUT (LIQUID) 1 CWT251026 ← ←
9 FLARE NUT (GAS) 1 CWT251062 CWT251036 ←
10 HOLDER SENSOR 1 CWH32142 ← ←
11 CONTROL BOARD CASING 1 CWH102449 ← ←
12 TERMINAL BOARD COMPLETE 1 CWA28C2366 CWA28C2367 CWA28C2462 O
13 ELECTRONIC CONTROLLER - MAIN 1 CWA73C7631 CWA73C7632 CWA73C7634 O
14 ELECTRONIC CONTROLLER - HVU 1 N0GE1F000002 ← ← O
15
ELECTRONIC CONTROLLER -
INDICATOR
1 CWA746635 ← ← O
16 SENSOR COMPLETE 1 CWA50C2122 CWA50C2782 ← O
17 SENSOR COMPLETE (ECO) 1 CWA50C2826 ← ← O
18
ELECTRONIC CONTROLLER
(ECO SENSOR - L)
1 CWA745791 ← ← O
19
ELECTRONIC CONTROLLER
(ECO SENSOR - R)
1 CWA746206 ← ← O
20
ELECTRONIC CONTROLLER
(COMPARATOR)
1 CWA746653 ← ← O
21 LEAD WIRE - PCB ECO 1 CWA67C9934 ← ←
22
CONTROL BOARD CASING FOR PCB
ECO
1 CWD933407A ← ←
23 CONTROL BOARD TOP COVER 1 CWH131467 ← ←
24 INDICATOR HOLDER 1 CWD933406 ← ←
25 CONTROL BOARD FRONT COVER 1 CWH13C1247 ← ←
26 DISCHARGE GRILLE COMPLETE 1 CWE20C3242 ← ←
27 BACK COVER CHASSIS 1 CWD933031 ← ←
28 FULCRUM 2 CWH621138 ← ←
29 VERTICAL VANE 11 CWE241374 ← ←
30 CONNECTING BAR (RIGHT) 1 CWE261257 ← ←
31 CONNECTING BAR (LEFT) 1 CWE261258 ← ←
32 A.S.MOTOR, DC SINGLE 12V 300OHM 1 CWA98K1018 ← ← O
33 A.S.MOTOR, DC SINGLE 12V 300OHM 1 CWA981241 ← ← O
34 CAP - DRAIN TRAY 1 CWH521259 ← ←
35 HORIZONTAL VANE 1 CWE24C1392 ← ←
36 REMOTE CONTROL COMPLETE 1 CWA75C4204 ← ← O
37 FRONT GRILLE COMPLETE 1 CWE11C5222 CWE11C5223 CWE11C5159 O
38 INTAKE GRILLE COMPLETE 1 CWE22C1741 ← ←
39 GRILLE DOOR 1 CWE14C1090 ← ←
40 AIR FILTER 2 CWD001283 ← ←
41 SCREW - FRONT GRILLE 4 XTT4+16CFJ ← ←
42 CAP - FRONT GRILLE 3 CWH521227 ← ←
43 DRAIN HOSE 1 CWH851173 ← ←
44 INSTALLATION PLATE 1 CWH361098 ← ←
45
BAG COMPLETE - INSTALLATION
SCREW
1 CWH82C1705 ← ←
46 OPERATING INSTRUCTION 1 CWF568955 ← ←
47 INSTALLATION INSTRUCTION 1 CWF615793 ← CWF615806
48 INSTALLATION INSTRUCTION 1 CWF615795 ← CWF615808
