Panasonic CS-A12PKD

137

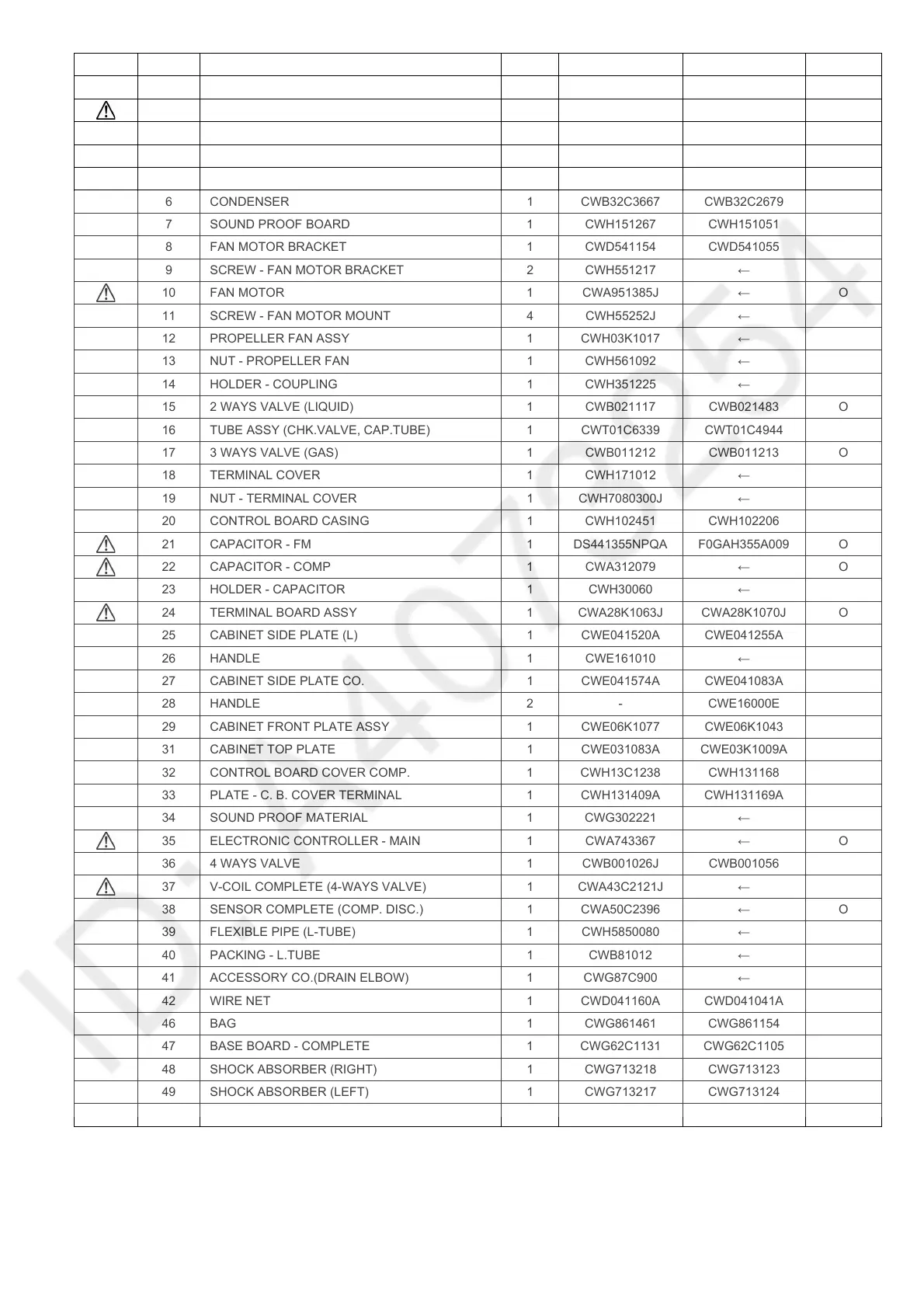

SAFETY REF. NO. PART NAME & DESCRIPTION QTY. CU-A18PKD CU-A24PKD REMARK
1 CHASSIS ASSY 1 CWD52K1270 CWD50K2087
2 COMPRESSOR 1 2JS318D3AA04 2JS438D3CC04 O
3 ANTI - VIBRATION BUSHING 3 CWH50055 ←
4 NUT - COMPRESSOR MOUNT 3 CWH561049 ←
5 PACKING 3 CWB81043 ←
6 CONDENSER 1 CWB32C3667 CWB32C2679
7 SOUND PROOF BOARD 1 CWH151267 CWH151051
8 FAN MOTOR BRACKET 1 CWD541154 CWD541055
9 SCREW - FAN MOTOR BRACKET 2 CWH551217 ←
10 FAN MOTOR 1 CWA951385J ← O
11 SCREW - FAN MOTOR MOUNT 4 CWH55252J ←
12 PROPELLER FAN ASSY 1 CWH03K1017 ←
13 NUT - PROPELLER FAN 1 CWH561092 ←
14 HOLDER - COUPLING 1 CWH351225 ←
15 2 WAYS VALVE (LIQUID) 1 CWB021117 CWB021483 O
16 TUBE ASSY (CHK.VALVE, CAP.TUBE) 1 CWT01C6339 CWT01C4944
17 3 WAYS VALVE (GAS) 1 CWB011212 CWB011213 O
18 TERMINAL COVER 1 CWH171012 ←
19 NUT - TERMINAL COVER 1 CWH7080300J ←
20 CONTROL BOARD CASING 1 CWH102451 CWH102206
21 CAPACITOR - FM 1 DS441355NPQA F0GAH355A009 O
22 CAPACITOR - COMP 1 CWA312079 ← O
23 HOLDER - CAPACITOR 1 CWH30060 ←
24 TERMINAL BOARD ASSY 1 CWA28K1063J CWA28K1070J O
25 CABINET SIDE PLATE (L) 1 CWE041520A CWE041255A
26 HANDLE 1 CWE161010 ←
27 CABINET SIDE PLATE CO. 1 CWE041574A CWE041083A
28 HANDLE 2 - CWE16000E
29 CABINET FRONT PLATE ASSY 1 CWE06K1077 CWE06K1043
31 CABINET TOP PLATE 1 CWE031083A CWE03K1009A
32 CONTROL BOARD COVER COMP. 1 CWH13C1238 CWH131168
33 PLATE - C. B. COVER TERMINAL 1 CWH131409A CWH131169A
34 SOUND PROOF MATERIAL 1 CWG302221 ←
35 ELECTRONIC CONTROLLER - MAIN 1 CWA743367 ← O
36 4 WAYS VALVE 1 CWB001026J CWB001056
37 V-COIL COMPLETE (4-WAYS VALVE) 1 CWA43C2121J ←
38 SENSOR COMPLETE (COMP. DISC.) 1 CWA50C2396 ← O
39 FLEXIBLE PIPE (L-TUBE) 1 CWH5850080 ←
40 PACKING - L.TUBE 1 CWB81012 ←
41 ACCESSORY CO.(DRAIN ELBOW) 1 CWG87C900 ←
42 WIRE NET 1 CWD041160A CWD041041A
46 BAG 1 CWG861461 CWG861154
47 BASE BOARD - COMPLETE 1 CWG62C1131 CWG62C1105
48 SHOCK ABSORBER (RIGHT) 1 CWG713218 CWG713123
49 SHOCK ABSORBER (LEFT) 1 CWG713217 CWG713124
50 C.C.CASE 1 CWG568888 CWG568889
(Note)
• All parts are supplied from PAPAMY, Malaysia (Vendor Code: 00029488).
• “O” marked parts are recommended to be kept in stock.
