Panasonic CS-A7BKP

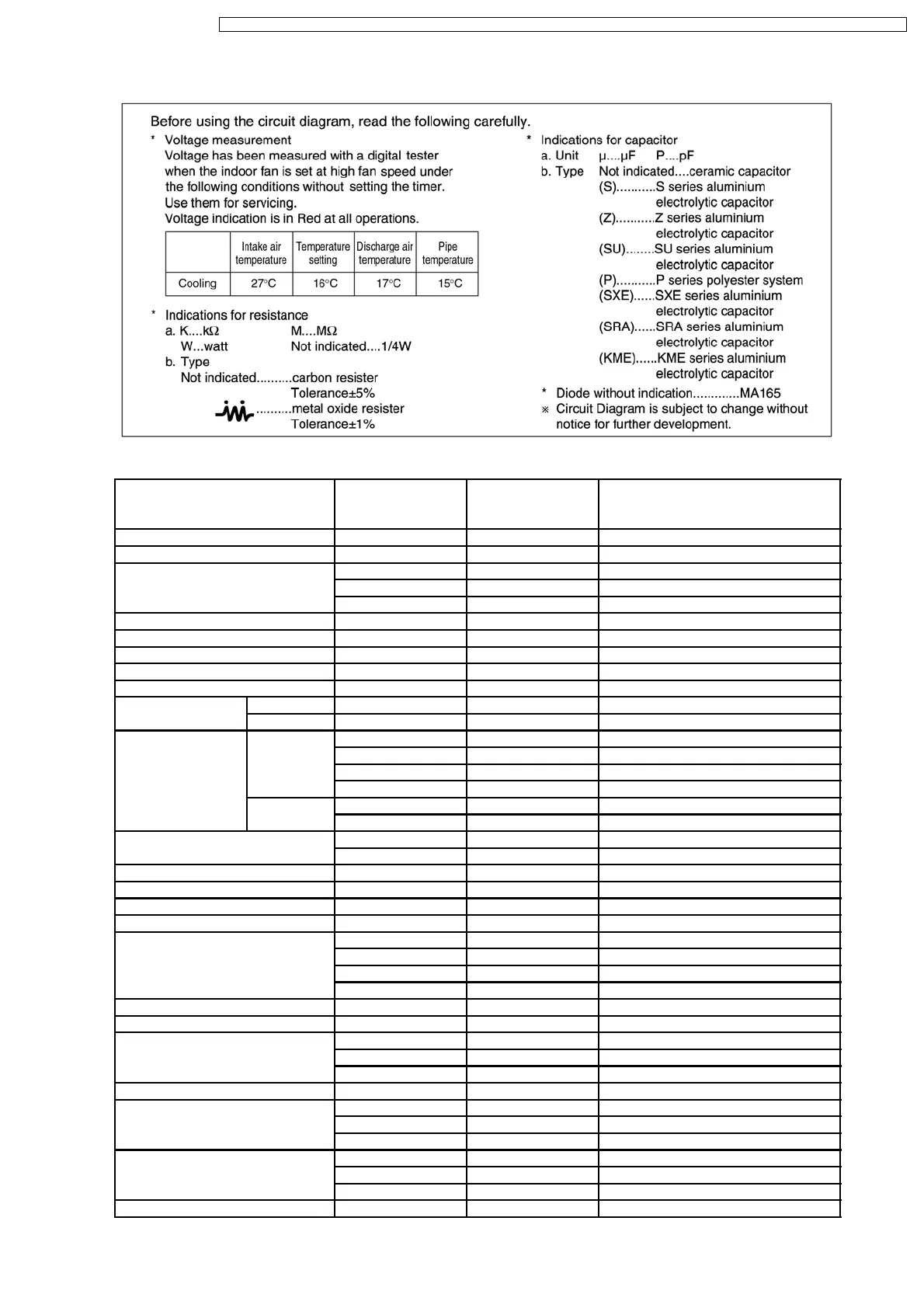

How to use electronic circuit diagram
TIMER TABLE
Test Mode
Name Time (When test point Remarks
Short-circuited)
Sleep Mode Waiting 1 hr. 6 sec.
Sleep Mode Operation 8 hrs. 48 sec.
Real Timer 1 hr. 1 min.
10 min. 10 sec.
1 min. 1 sec.
Time Delay Safety Control 2 min. 58 sec. 0 sec.
Forced Operation 60 sec. 0 sec.
Time Save Control 7 min. 4.2 sec.
Anti-Freezing 4 min. 0 sec.
Auto Mode Judgement 25 sec. 0 sec.
Soft Dry OFF 6 min. 36 sec.
ON 10 min. 60 sec. Soft Dry: 10 min. operation
Deodorizing Control
Cooling 40 sec. 4 sec.
70 sec. 7 sec.
20 sec. 2 sec.
180 sec. 18 sec.
Soft Dry 40 sec. 4 sec.
360 sec. 36 sec.
Comp. Reverse Rotation Detection 5 min. 30 sec. Comp. ON 5 min. and above
2 min. 0 sec.
Comp./ Fan Motor Delay Timer 1.6 sec. 0 sec.
Powerful Mode Operation 15 min. 15 sec.
Random FM Timer (Economy Mode) 5 sec. 5 sec.
Random Auto Restart Control 0 ~ 62 sec. 0 ~ 6.2 sec.
TRS Recovery Detection 12 min. 72 sec.
6 min. 36 sec.
3 min. 18 sec.
1 min. 6 sec.
Time Save Control (Heating) 30 min. 3 sec.
4 Way Valve Control (Delay) 5 min. 30 sec.
Deice Operation Occurs 60 min. 6 sec. 60 min. after previous deice
4 min. 24 sec. Continuously 4 min. Comp. ON
50 sec. 0 sec. TRS ON continuously for 50 sec. check
Overload Deice Timer 1 min. 6 sec. Comp. ON continuously for 1 min. check
Deice End 12 min. 72 sec. Max. Operation time
30 sec. 3 sec. 30 sec. Comp. OFF after deice
10 sec. 1 sec. 4-Way Valve ON 10 sec. later after deice
Deice Operation (Extend) 60 sec. 0 sec.
120 sec. 0 sec.
180 sec. 0 sec.
Hotstart Finish 30 sec. 0 sec.
83
CS-A7BKP CU-A7BKP5 / CS-A7BKP CU-A7BKP6 / CS-A9BKP CU-A9BKP5 / CS-A9BKP CU-A9BKP6 / CS-A12BKP CU-A12BKP5 / CS-A12BKP CU-A12BKP6
