Panasonic CS-A9BKP Service Manual

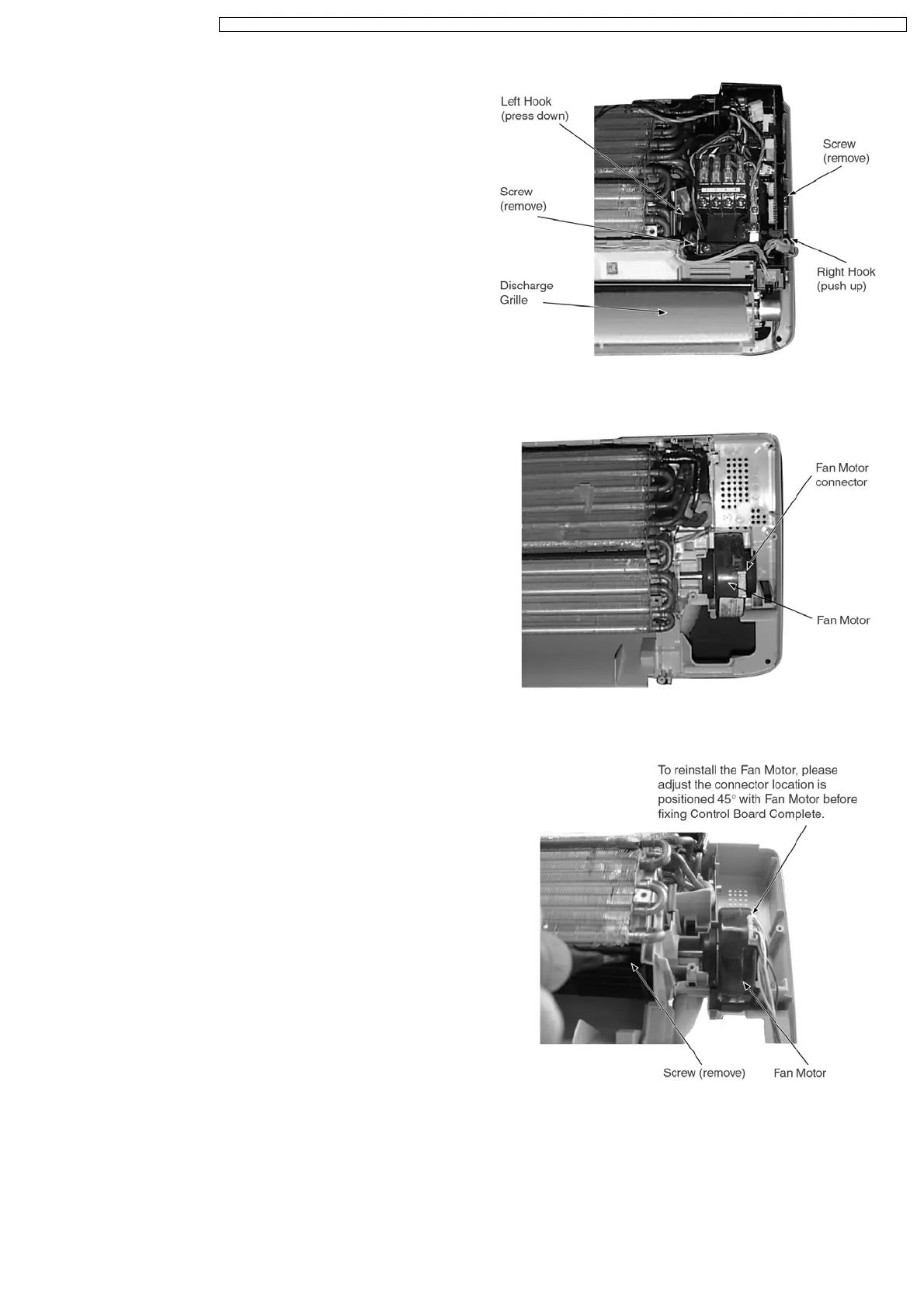

− Pulling out the Drain Hose from outlet to remove the
Discharge Grille. (Fig. 5)
− Removing the right and left screws. (Fig. 5)
− Then remove the Control Board by pressing down the
hook at the left and pushing up the right hook. (Fig. 5)
− Release the Fan motor leadwire by pressing the hook at
the center of the connector. (Fig. 6)
− Remove the screw at the Cross Flow Fan. (Fig. 7)
− REMINDER - To reinstall the Fan Motor, adjust the
connector of the Fan Motor as shown in the Fig. 7.
Fig. 5
Fig. 6
Fig. 7
63
CS-A7BKP CU-A7BKP5 / CS-A7BKP CU-A7BKP6 / CS-A9BKP CU-A9BKP5 / CS-A9BKP CU-A9BKP6 / CS-A12BKP CU-A12BKP5 / CS-A12BKP CU-A12BKP6
