Panasonic CS-E12DKEW - Disassembly of Parts; Wall Type Disassembly

1. Remove the Front Grille.
2. Remove the Indoor Control Board.
Fig. 2
Fig. 3
Fig. 4
Fig. 5
14 Disassembly of Parts
14.1. Wall Type

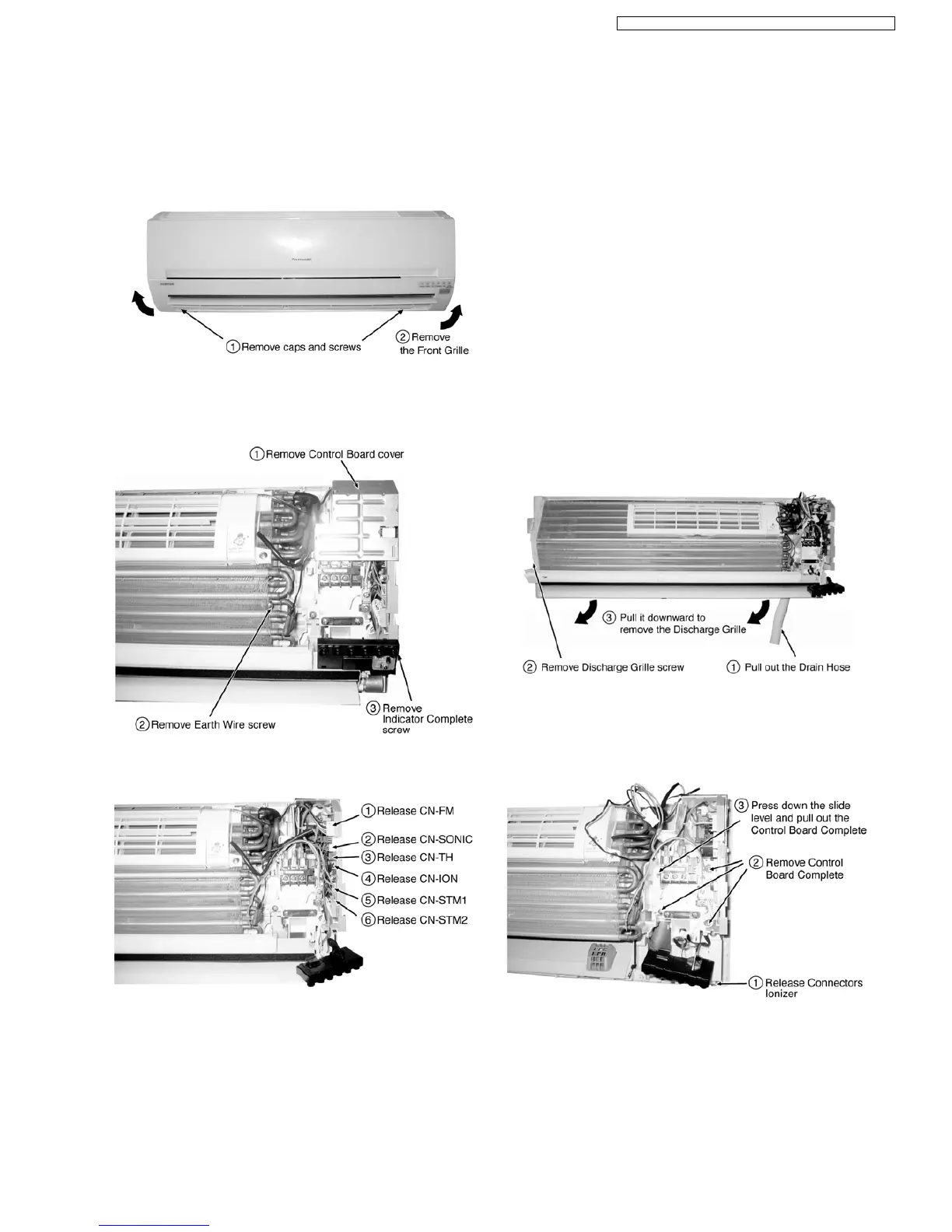

14.1.1. Indoor Control Board Removal Procedures
Fig. 1
151
CS-ME7DKEG CS-ME10DD3 EG / CS-ME10DTEG CS-E15DB4EW
