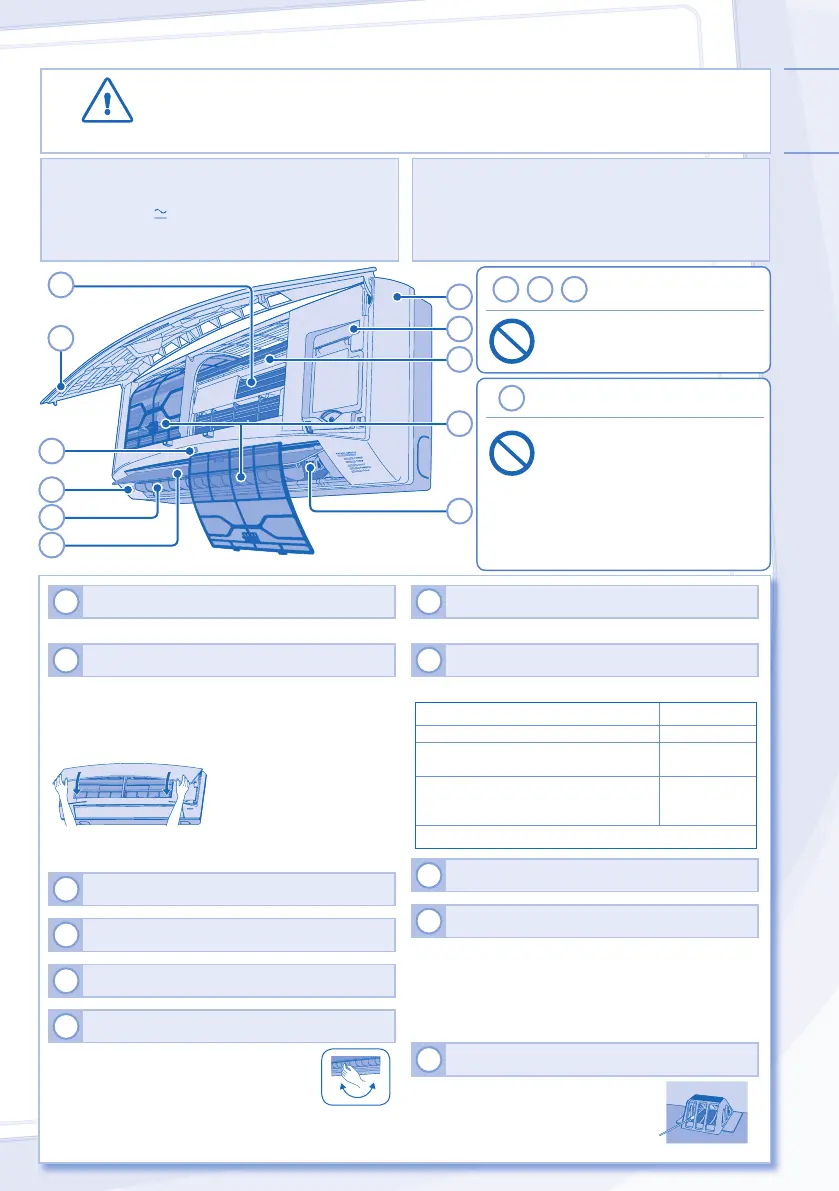

Panasonic CS-E12LKEW User Manual

ENGLISH
5
1
INDOOR UNIT
• Wipe the unit gently with a soft, dry cloth.
2
FRONT PANEL
Remove Front Panel
• Raise and pull to remove the front panel.
• Wash gently and dry.
Close Front Panel
• Press down both ends of the front panel to close it
securely.
3
RECEIVER
4
ALUMINIUM FIN
5
ECO PATROL SENSOR
6
HORIZONTAL AIRFLOW DIRECTION LOUVER
XE7/9/12/15LKEW, E7/9/12/15LKEW
• Manually adjustable.
XE18/21LKEW, E18/21LKEW
• Do not adjust by hand.
7
VERTICAL AIRFLOW DIRECTION LOUVER
• Do not adjust by hand.
8
AUTO OFF/ON BUTTON
• Use when remote control is misplaced or malfunction.
Action Mode
Press once. Auto
Press and hold until 1 beep is heard,
then release.
Cooling
Press and hold until 1 beep is heard,
then release.
Press again until 2 beeps, then release.
Heating
Press the button to turn off.
9
e-ion CHARGING WIRE
10
e-ion FILTERS
• Clean the fi lters regularly.
• Wash/rinse the fi lters gently with water to avoid damage
to the fi lter surface.
• Dry the fi lters thoroughly under the shade, away from
fi re or direct sunlight.
• Replace any damage fi lter.
11
ACTIVE e-ion GENERATOR
Clean with dry cotton bud.
• Active e-ion generator cleaning is
recommended every 6 months.
CAUTION
• Switch off the power supply before cleaning.
• Do not touch the aluminium fi n, sharp parts may cause injury.
INDOOR UNIT
5
ECO PATROL SENSOR
• Do not hit or violently press the
sensor or poke it with a sharp
object. This can lead to damage
and malfunction.
• Do not place large objects near
the sensor and keep heating units
or humidifi ers of the sensor’s
detection area. This may lead to
sensor malfunction.
2
3
5
7
8
1
4
6
9
10
11
9
,
10
,
11
e-ion AIR PURIFYING
SYSTEM
• Do not touch during operation
WASHING INSTRUCTIONS
WASHING INSTRUCTIONS
HINT
HINT
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
• To ensure optimal performance of the unit, cleaning
maintenance have to be carried out at regular intervals.
Dirty unit may caused malfunction and you may retrieve
error code “H99”. Please consult authorized dealer.

Panasonic CS-E12LKEW Specifications

General

Type	Split system
Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3010 BTU/h
Dehumidifying capacity	2 l/h
Heating capacity (max)	3440 BTU/h
Cooling capacity in watts (max)	3500 W
Heating capacity in watts (max)	4000 W
Cooling energy efficiency (EER, W/W)	4.07
Heating energy efficiency (COP, W/W)	4.21
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	58 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
