MULTI AIR CONDITIONER SYSTEM
Caution
PATROL/
operations could be activated even when the air-conditioner is turned off. In this condition, once e-ion indicator
is ON, the unit will operate with AUTO fan speed and air swing. However, this operation could not be activated or will be
deactivated if other indoor unit is activating heating mode.
DEFINITION

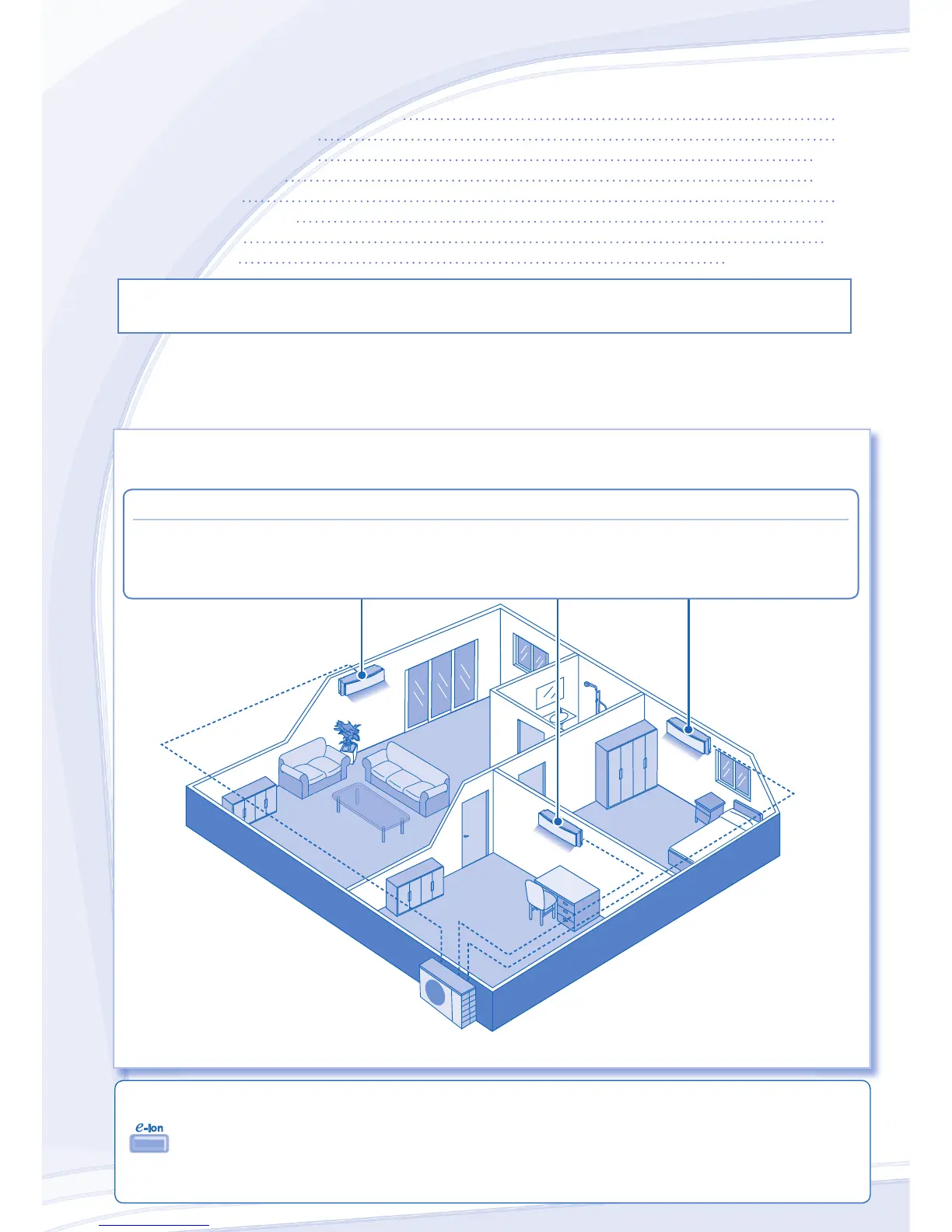

Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit.
Room A
Room A
Room B
Room B
Room C
Room C
Multi Split Outdoor Unit
Multi Split Outdoor Unit
INDOOR UNIT
INDOOR UNIT
• It is possible to operate the indoor units individually or simultaneously. The operation mode priority is given to the
fi rst unit that turned on.
• During operation, heating and cooling mode could not be activated at the same time for different indoor unit.
The power indicator blinks to indicate the indoor unit is standing by for different operation mode.
Multi Split Outdoor Unit
(CU-2E15LBE, CU-2E18LBE, CU-3E18LBE, CU-4E23LBE, CU-4E27CBPG)
* Note: For complete product combination, please refer to catalog.

Panasonic CS-E12MKEW Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	9000 g
Indoor unit dimensions (WxDxH)	870 x 204 x 290 mm
Indoor unit noise level (high speed)	44 dB
Type	Air conditioner indoor unit
Built-in display	No
Remotely operated	Yes
Cooling capacity (max)	- BTU/h
Dehumidifying capacity	2 l/h
Air conditioner functions	cooling, heating
Suitable for room volume up to	- m³
Filter	E-ion
Airflow	768 m³/h
Power requirements	230V
Power consumption (cooling) (max)	3200 W
Power consumption (heating) (max)	4500 W
