Attached accessories
Applicable piping kit
CZ-4F5, 7, 10BP (E15DK)
Select the best location
INDOOR UNIT
•
There should not be any heat source or steam near
the unit.
•
There should not be any obstacles blocking the air
circulation.
•
A place where air circulation in the room is good.
•
A place where drainage can be easily done.
•
A place where noise prevention is taken into
consideration.
•
Do not install the unit near the door way.
•
Ensure the spaces indicated by arrows from the wall,
ceiling, fence or other obstacles.
•
Recommended installation height for indoor unit
shall be at least 2.5 m.
OUTDOOR UNIT
•
If an awning is built over the unit to prevent direct
sunlight or rain, be careful that heat radiation from
the condenser is not obstructed.
•
There should not be any animal or plant which could
be affected by hot air discharged.
•
Keep the spaces indicated by arrows from wall,
ceiling, fence or other obstacles.
•
Do not place any obstacles which may cause a short
circuit of the discharged air.
•
If piping length is over 7.5 m, additional refrigerant
should be added as shown in the table.

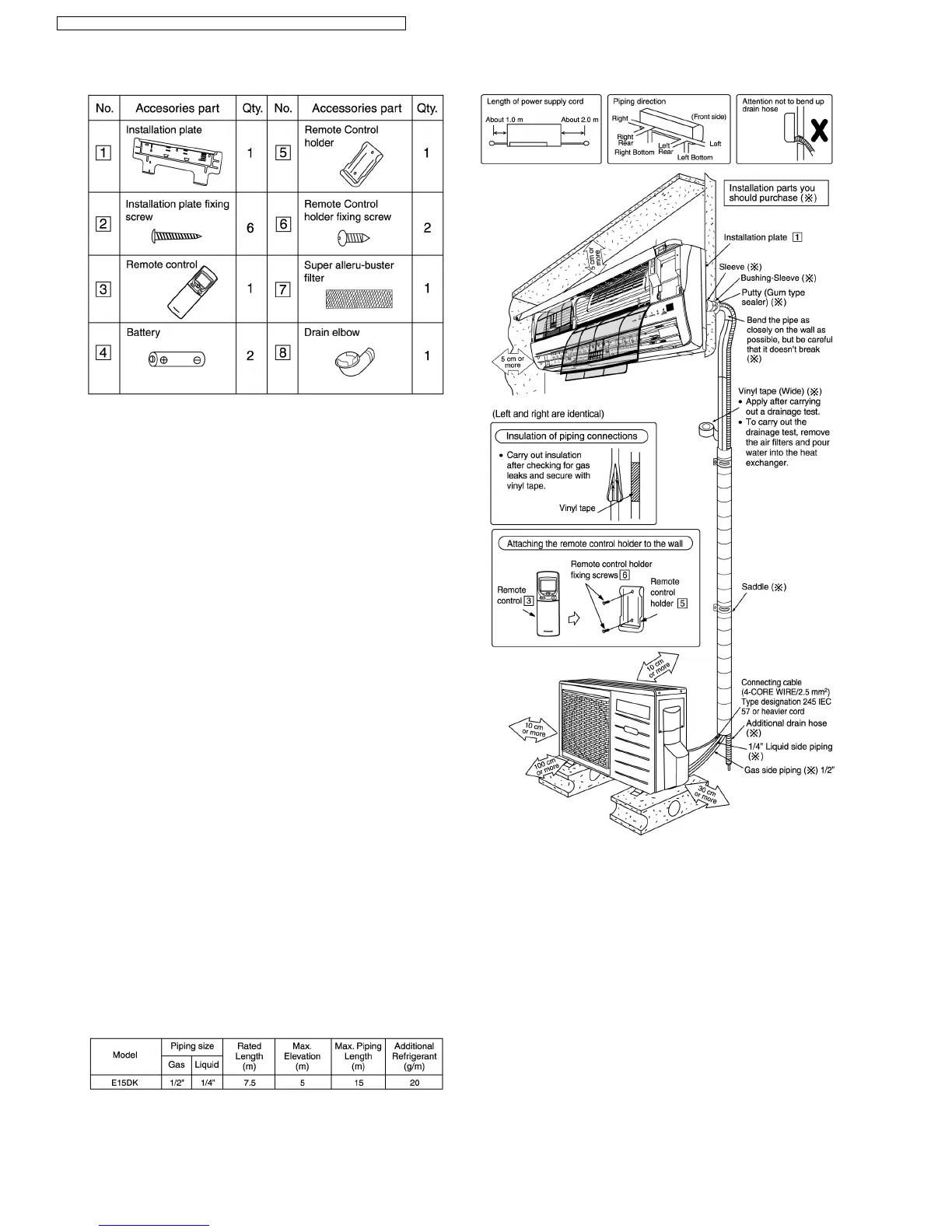

Indoor/Outdoor Unit Installation Diagram
•
This illustration is for explanation purposes only.
The indoor unit will actually face a different way.
72
CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE
