Panasonic CS-E21DTES User Manual

4
2
Action
Operation
mode
Press once.
Automatic
Operation
Press until “beep”
sound and release.
Cooling
Operation
Press until “beep”
sound and release.
Press again until
“beep-beep” sound
and release.
Heating
Operation
■ About
Indoor unit
CS-E15DB4EW, CS-E18DB4EW,
CS-E21DB4ES
• The air is discharged through 4
outlet vents.

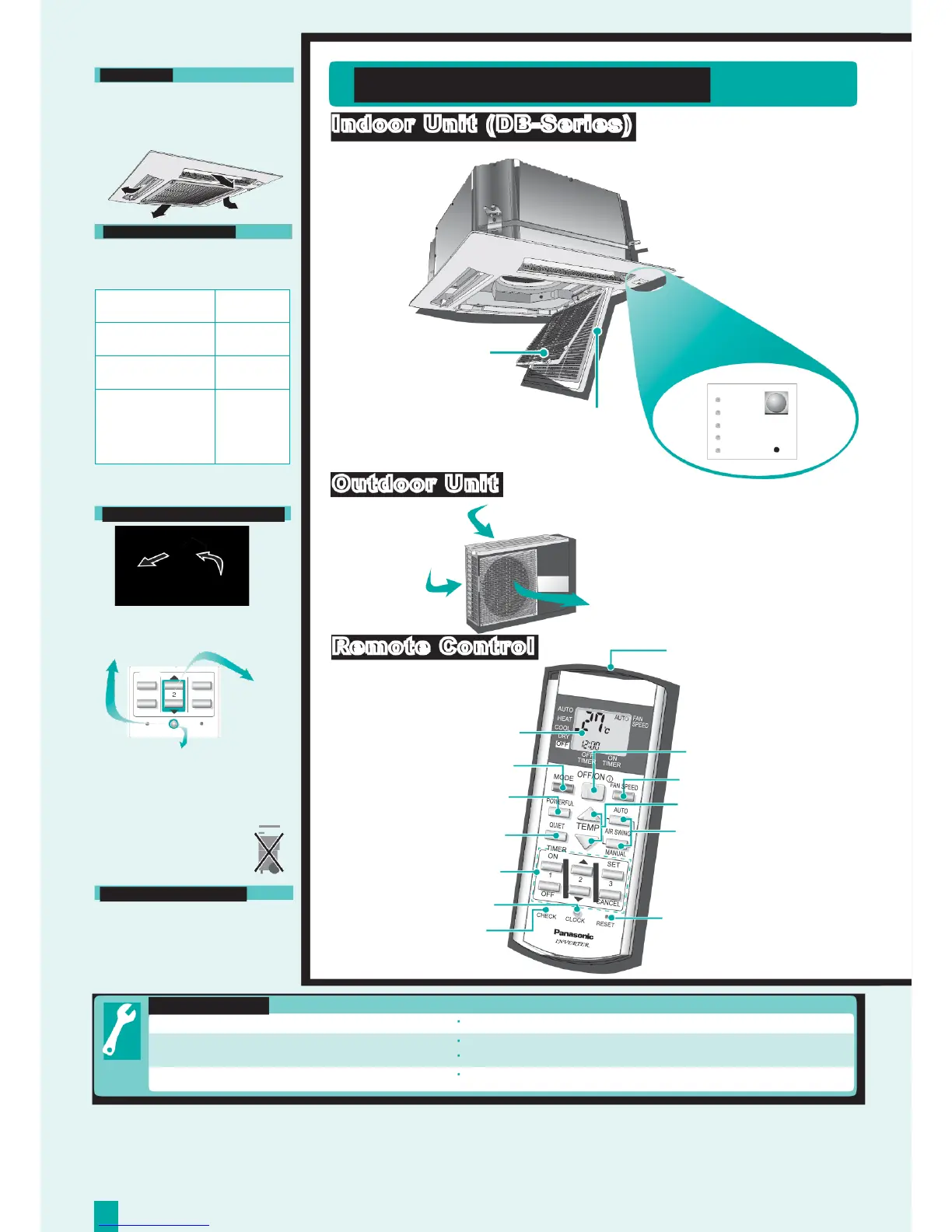

PRODUCT OVERVIEW
Indoor Unit (DB-Series)
CS-E15DB4EW, CS-E18DB4EW, CS-E21DB4ES
Auto OFF/ON Button
• To operate the unit if the remote
control is misplaced or
malfunctioning.
Air Filter
Indicator
• To OFF, press again the Auto OFF/
ON button.
Outdoor Unit
Intake Grille
0/7%2
4)-%2
0/7%2&5,
15)%4
!54/
!)2 37).'
Remote Control Preparation
Air inlet (rear)
1. Pull out
2. Insert batteries
(AAA or R03)
3. Press CLOCK button
Air inlet (side)
Air outlet
Remote Control
Transmitter
TIMER
ON
MANUAL
SET
1 3
4. Set
current
OFF
CHECK
CANCEL
CLOCK RESET
time
LCD display
5. Press again to confirm
• Timer operation will be based on
current time set.
• The batteries can be used for
approximately 1 year.
• The batteries must be
recycled or disposed of
properly.
Remote Control Signal
• Make sure it is not obstructed.
• Maximum distances : 8m.
• Certain fluorescent lights may
interfere with signal transmission.
Consult your dealer.
Operation mode
Powerful operation
Quiet operation
Timer setting
Clock setting
Check
Off/On
Fan speed selection
Temperature setting
Airflow direction
adjustment
Memory reset
Troubleshooting
● Remote control/display does not work.
Check whether batteries are correctly inserted or need replacement.
● The unit cannot operate.
Check either circuit breaker is tripped or timer is used correctly.
Ensure “OFF” indicator does not shown on remote control.
● Outdoor unit emits water/steam.
Condensation or evaporation happens at piping surface.
