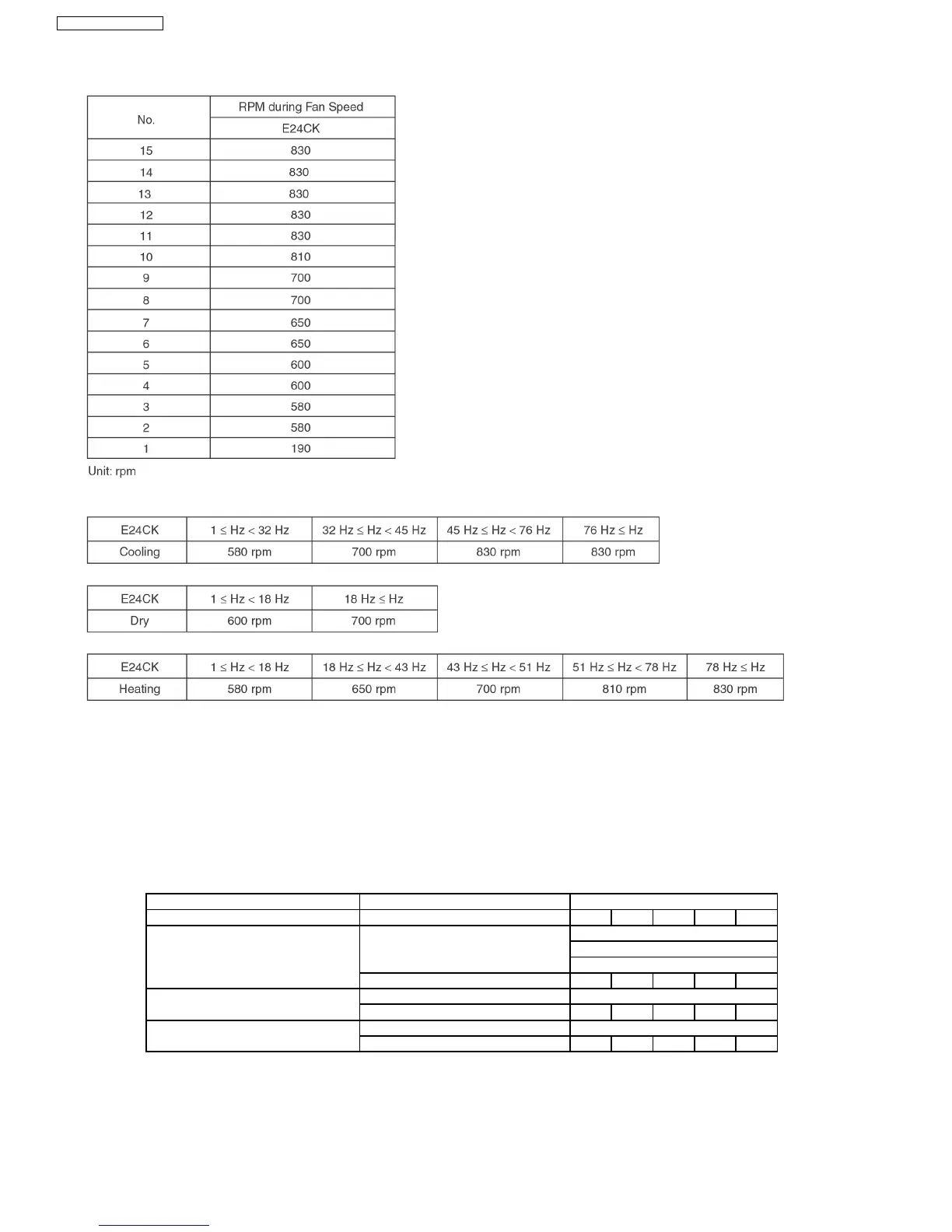

Basic Rotation Speed
8.1.9. Airflow Direction
1. There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by vertical vanes).
2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature
and intake air temperature) and manual (angles of direction can be adjusted using remote control).
Vertical Airflow
Operation Mode Airflow Direction Vane Angle (°)
1 2 3 4 5
Heating Auto with Heat Exchanger 17
Temperature 58
7
Manual 7 17 33 49 67
Cooling, Soft Dry and Fan, Ion Auto 7~37
Manual 7 17 25 33 41
Mode Judgment in Auto Auto 7
Manual 7 17 25 33 41
1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated
above. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1
below. When the air conditioner is stopped using remote control, the vane will shift to close position.
22
CS-E24CKE CU-E24CKE
