Panasonic CS-E9DKEW - Exploded View

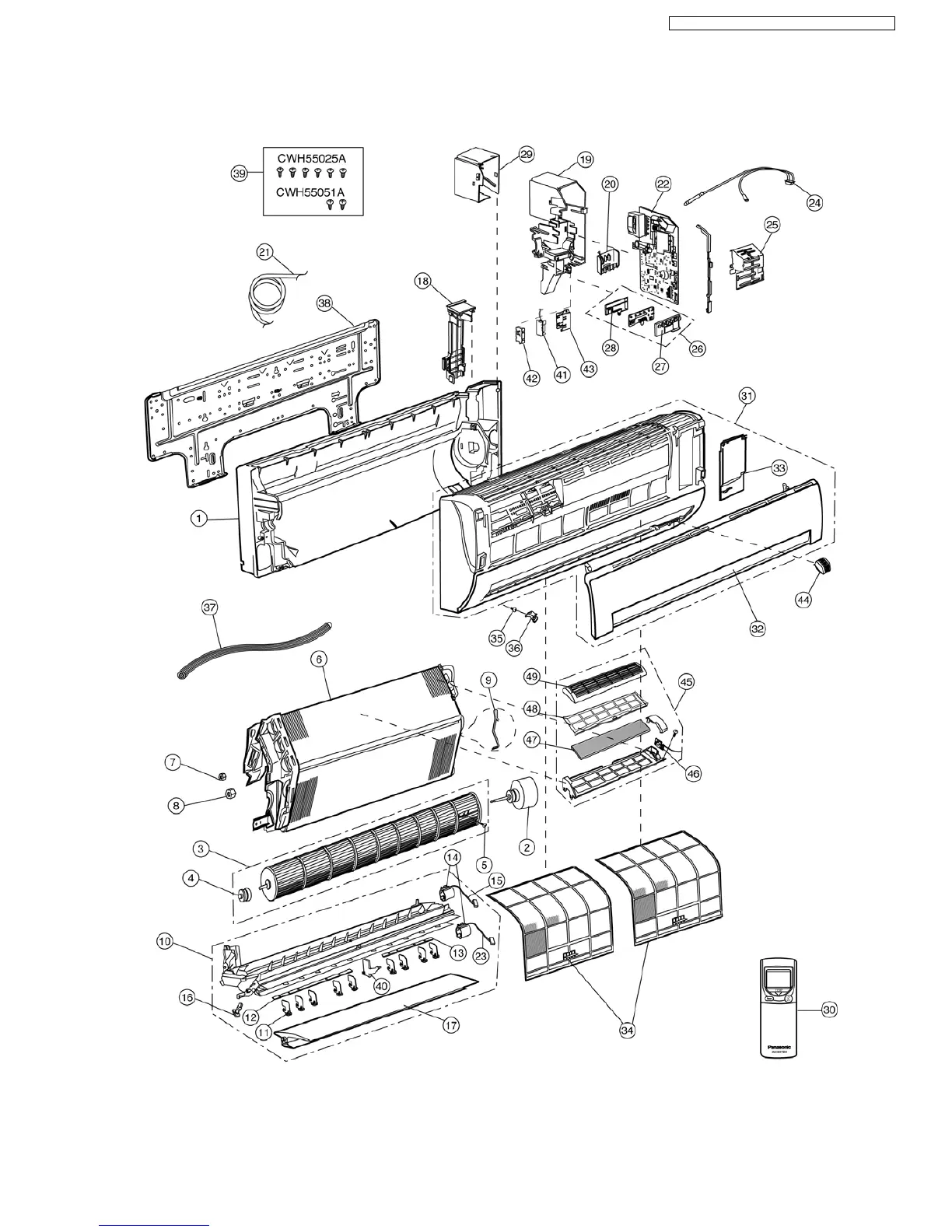

14 Exploded View (Indoor Unit)
14.1. CS-E9DKEW CS-E12DKEW
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
83
CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE
