Panasonic CS-PC24MKF - Exploded View and Replacement Parts List; Indoor Unit

78

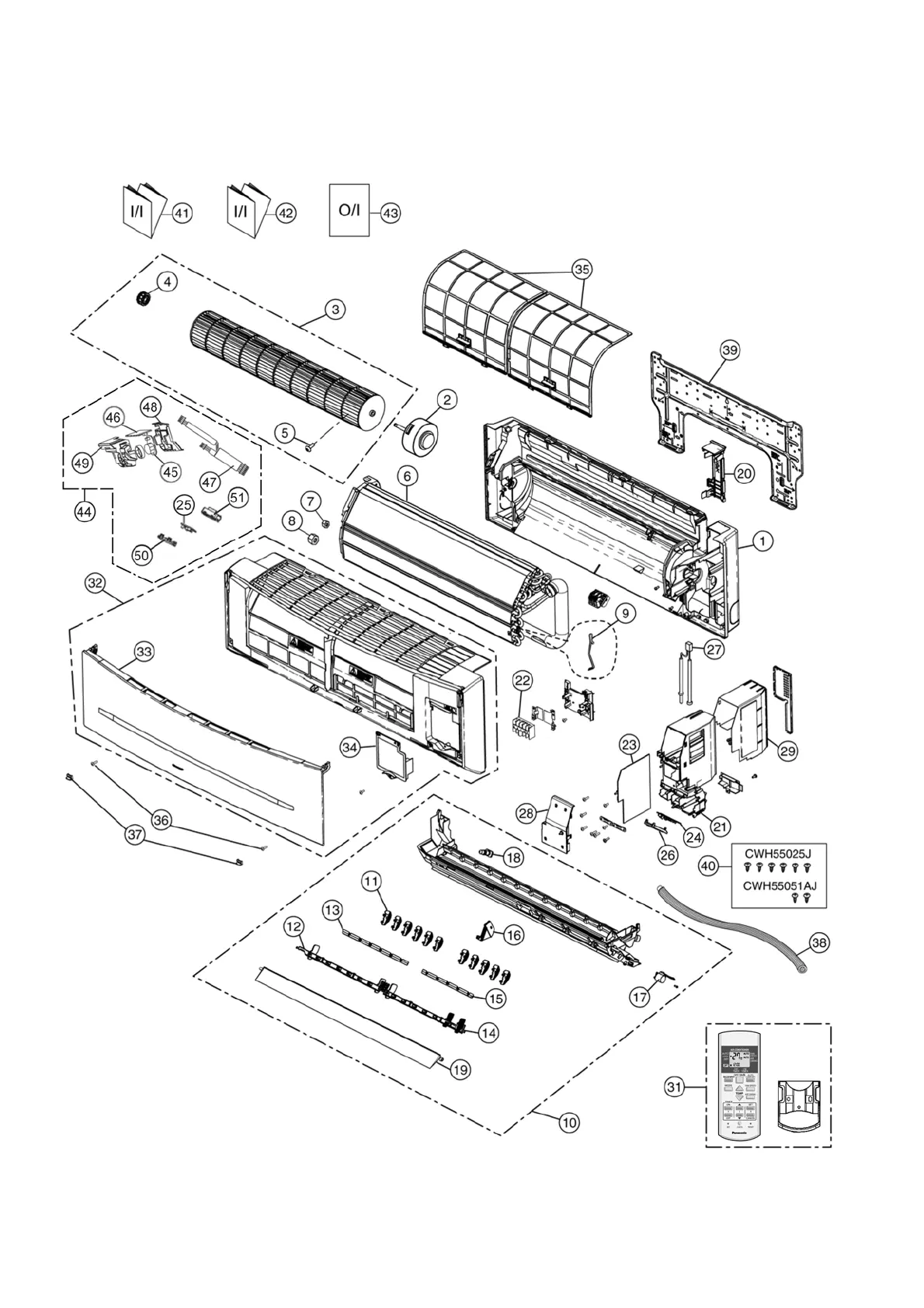

18 Exploded View and Replacement Parts List
18.1. Indoor Unit
18.1.1. CS-PC12MKF
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
