17 Electronic Circuit Diagram
A
B
C
D
E
F
G
H
1
2
3
4
5

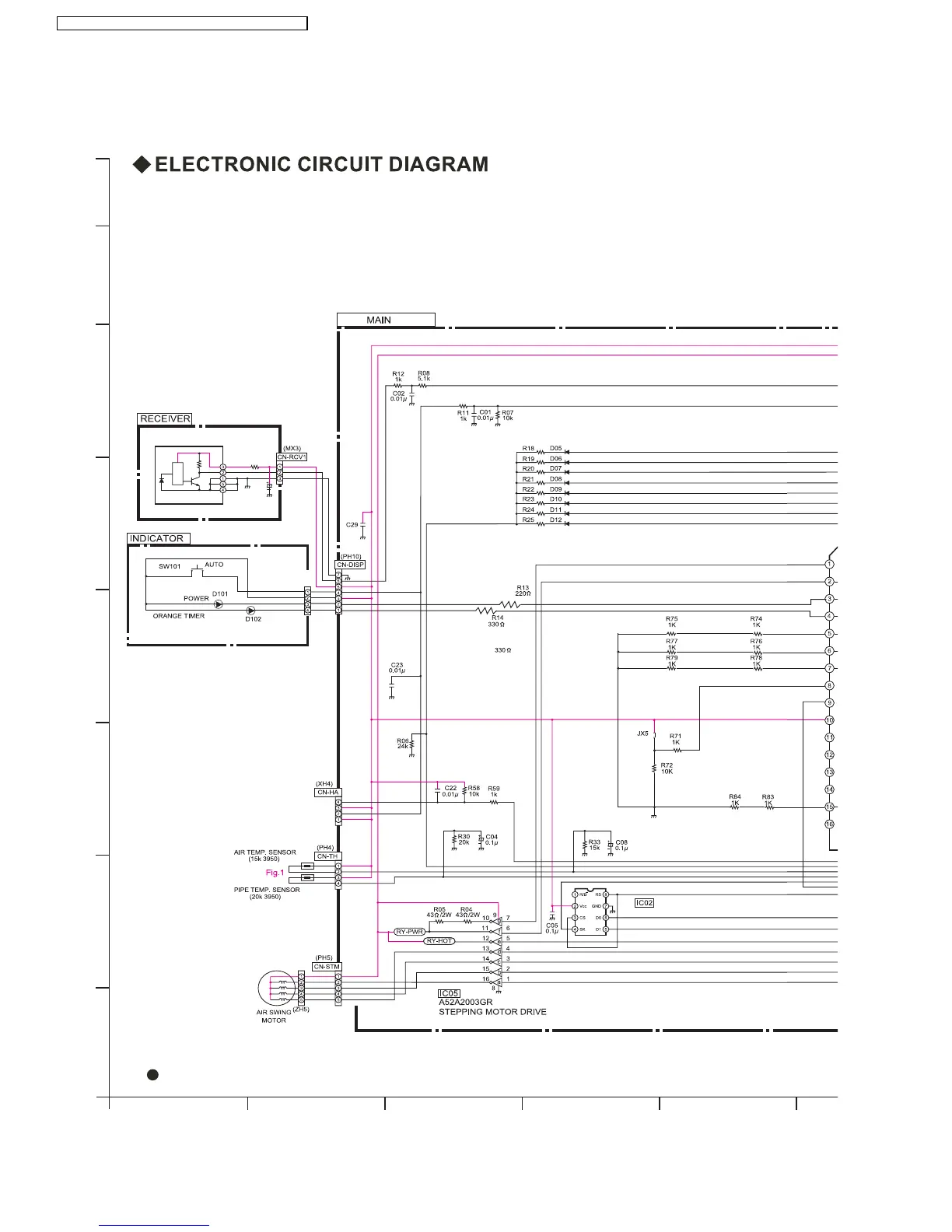

SCHEMATIC DIAGRAM 1/3
CS-PW9CKE/CU-PW9CKE/ CS-PW12CKE/CU-PW12CKE
62
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
