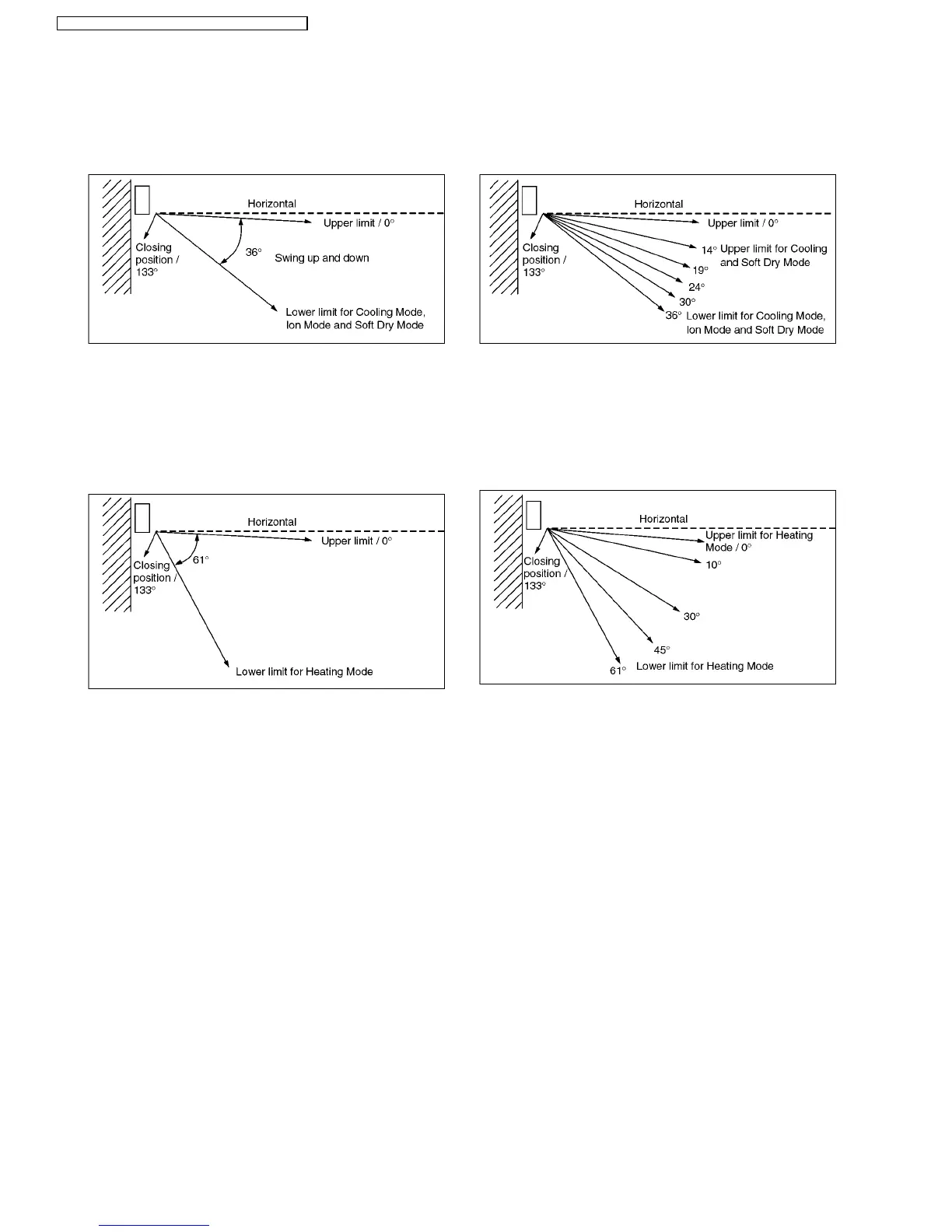

1.
Vertical Airflow Direction
•
• •
•
The louver swings up and down as shown above.
•
• •
•
The louver does not swing when the Indoor Fan stops
during operation at the upper limit.
Heating Mode
•
• •
•
When the intake air temp. reaches 38°C, the louver is
changed from upper to lower limit. When the intake air
temp falls to 35°C, the louver is changed from lower to
upper limit.
2.
Horizontal Airflow Direction
•
• •
•
The louver can be selected between 14° -36° (as
shown above) when pressing Manual Airflow Direction
Selection Button.
•
• •
•
The louver can be selected between 0° -61° (as shown
above) when pressing Manual Airflow Direction
Selection Button.
7.8. Airflow Direction Control
Cooling, Ion and Soft Dry Mode
•
• •
•
The left and right airflow direction louvers can be adjusted manually.
26
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
