Panasonic CS-SA9CKP - Disassembly Procedures; Fan Motor Removal

•
• •
•
Inspection Points for the indoor electronic controller

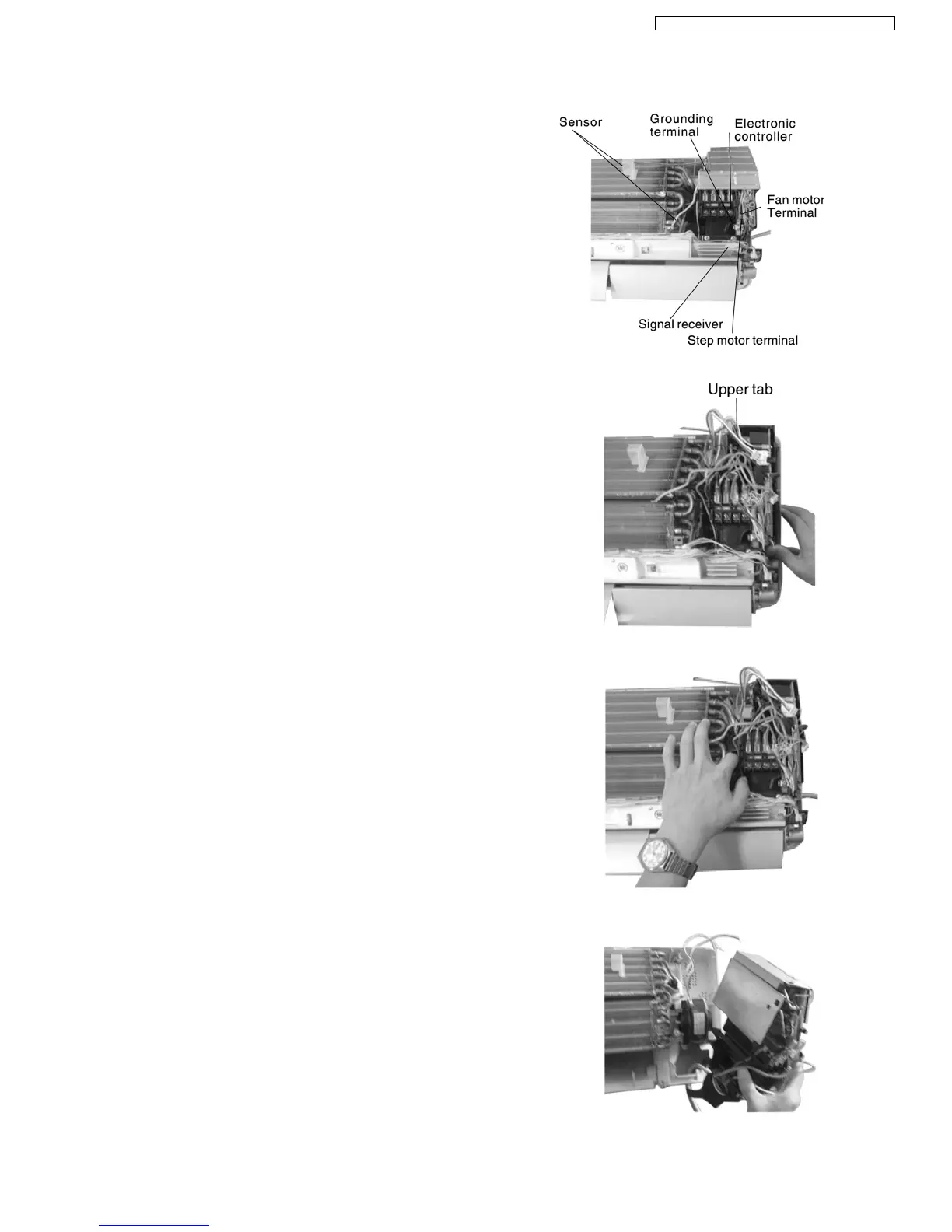

1. Open the front grille and cover of the control board, the
electronic controller, signal receiver and indicators can
be seen.
•
• •
•
Removal procedure for the fan motor
1. Remove the connector CN-MTR of fan motor, and
connector CN-STM of step fan motor, loosen the
grounding wire (yellow-green),and pull the sensor out
from the socket.
(See
Fig 1
)
2. Remove the control board. Loosen the upper, left and
right tabs, and pull out the control board. (Refer to
Fig 2
,
Fig 3
,
Fig 4
).
Fig 1
Fig 2
Fig 3
Fig 4
10 Disassembly of the parts
47
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5
