Panasonic CS-V12CKP - Troubleshooting Guide; Normal Operation Explanations; Abnormal Operation Checks

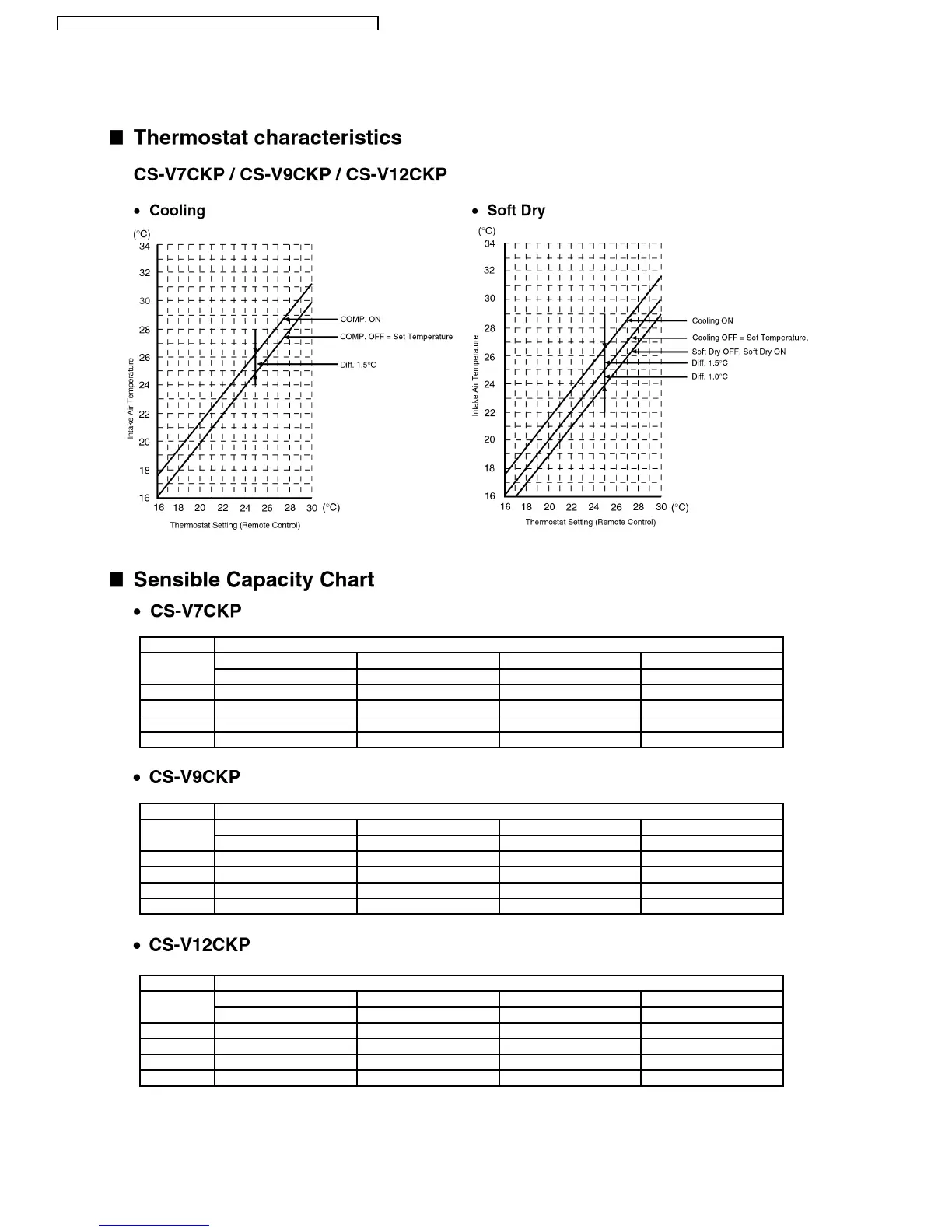

14 Technical Data
230V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 2.38 1.80 0.60 2.22 1.73 0.64 2.07 1.66 0.69 1.88 1.58 0.74
19.0°C 2.40 0.65
19.5°C 2.61 1.89 0.61 2.44 1.82 0.65 2.27 1.75 0.70 2.07 1.66 0.75
22.0°C 2.85 1.96 0.62 2.66 1.88 0.66 2.48 1.82 0.71 2.25 1.73 0.77
230V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 3.00 2.27 0.76 2.80 2.18 0.82 2.60 2.09 0.87 2.37 1.99 0.94
19.0°C 3.02 0.83
19.5°C 3.29 2.38 0.77 3.07 2.28 0.83 2.86 2.20 0.89 2.60 2.09 0.96
22.0°C 3.58 2.47 0.79 3.35 2.37 0.85 3.12 2.29 0.91 2.83 2.18 0.98
230V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 3.67 2.78 0.99 3.43 2.67 1.06 3.19 2.56 1.14 2.90 2.44 1.23
19.0°C 3.70 1.08
19.5°C 4.03 2.91 1.01 3.77 2.80 1.08 3.50 2.69 1.16 3.19 2.56 1.25
22.0°C 4.39 3.02 1.03 4.10 2.91 1.10 3.82 2.80 1.18 3.47 2.67 1.27
TC - Total Cooling Capacity (kW) Indoor 27°C/19°C
SHC - Sensible Heat Capacity (kW) Outdoor 35°C/24°C
IP - Input Power (kW)
62
CS-V7CKP CU-V7CKP5 / CS-V9CKP CU-V9CKP5 / CS-V12CKP CU-V12CKP5
