Note: The illustrations in this manual are for explanation purposes only and may differ from the
actual unit. It is subjected to change without notice for future improvement.

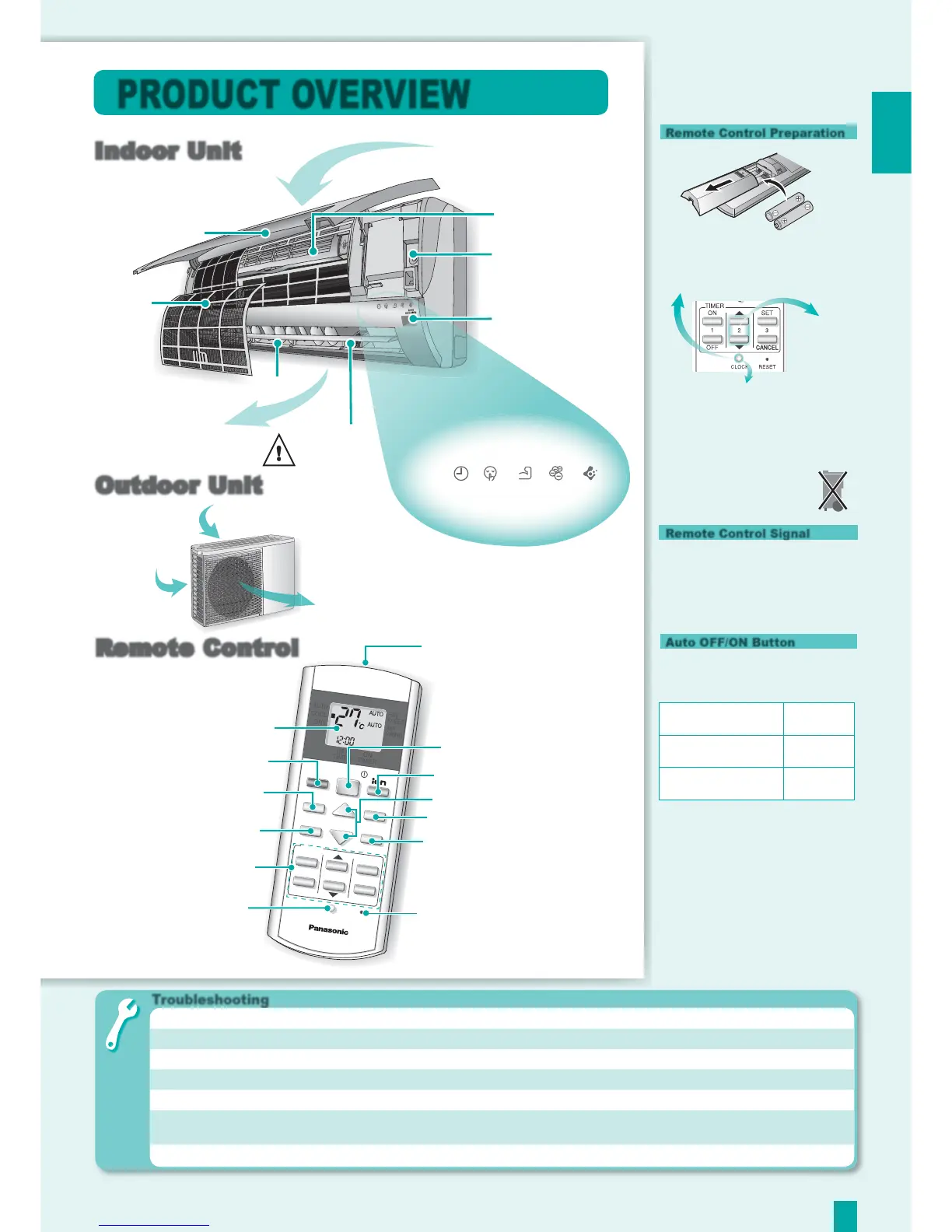

PRODUCT OVERVIEW
Air intake
Airflow direction louver
Ionizer
Air filter
Front panel
Indoor Unit
Indoor Unit
Outdoor Unit
Outdoor Unit
Air inlet (rear)
Air outlet
LCD display
Off/On
Fan speed selection
Clock setting
Memory reset
Temperature setting
Powerful operation
Operation mode
Quiet operation
Timer setting
Ion operation
Airflow direction
adjustment
Remote Control
Remote Control
Indicator
OP
E
N
• Make sure it is not obstructed.
• Maximum distances: 10m.
• Certain fluorescent lights may
interfere with signal transmission.
Consult your dealer.
Remote Control Preparation
■ About
Remote Control Signal
• Timer operation will be based on
current time set.
• The batteries can be used for
approximately 1 year.
• The batteries must be
recycled or disposed of
properly.
1. Pull out
2. Insert batteries
(AAA or R03)
3. Press CLOCK button
4. Set
current
time
5. Press again to confi rm
Supersonic air
purifying device
Auto OFF/ON
button
Receiver
Troubleshooting
● Operation delayed for few minutes after restart.
➤ This is a normal self protection control.
● Sound like water fl owing during operation.
➤ Caused by refrigerant fl ow inside.
● Mist emerges from indoor unit.
➤ Condensation effect due to cooling process.
● Noisy during operations.
➤ Installation work could be slanted or front panel didn’t close properly.
● Remote control/display does not work.
➤ Check whether batteries are correctly inserted or need replacement.
● The unit cannot operate.
➤ Check either circuit breaker is tripped, power plug is inserted correctly or
timer is used correctly.
● Outdoor unit emits water/steam.
➤ Condensation or evaporation happens at piping surface.
Transmitter
Air inlet (side)
Discharged air
Do not touch
during operation
• To operate the unit if the
remote control is misplaced or
malfunctioning.
Action
Operation
mode
Press once
Automatic
Operation
Press until “beep”
sound
Cooling
Operation
• To OFF, press again the Auto OFF/
ON button.
• To switch the remote control signal
receiving sound off or on.
1. Press until “beep” sound and
release.
2. Press again until “beep-beep”
sound and release.
3. Press to switch the sound off or
on.
(Long “beep” - OFF; short “beep”
- ON)
Auto OFF/ON Button
