17.2 Outdoor Electronic Controller Removal Procedure
17.2.1 CU-VU9SKQ CU-VU12SKQ
Caution! When handling electronic controller, be careful of electrostatic discharge.

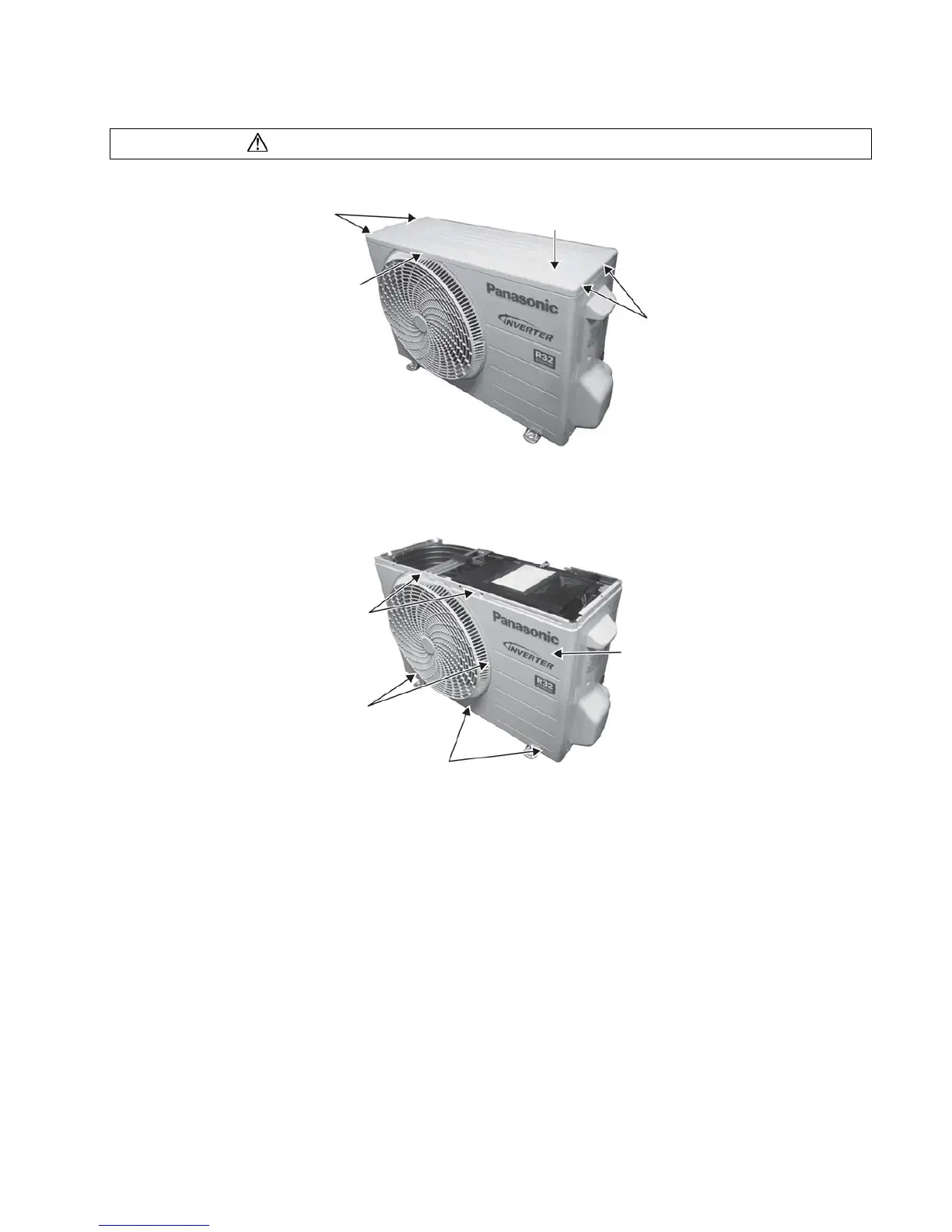

1. Remove 5 screws of the Top Panel.
Screws
Screws
Screw
Top Panel
Fig.1
2. Remove the 6 screws of the Front Panel.
Screws
Screws
Screws
Front Panel
Fig.2
