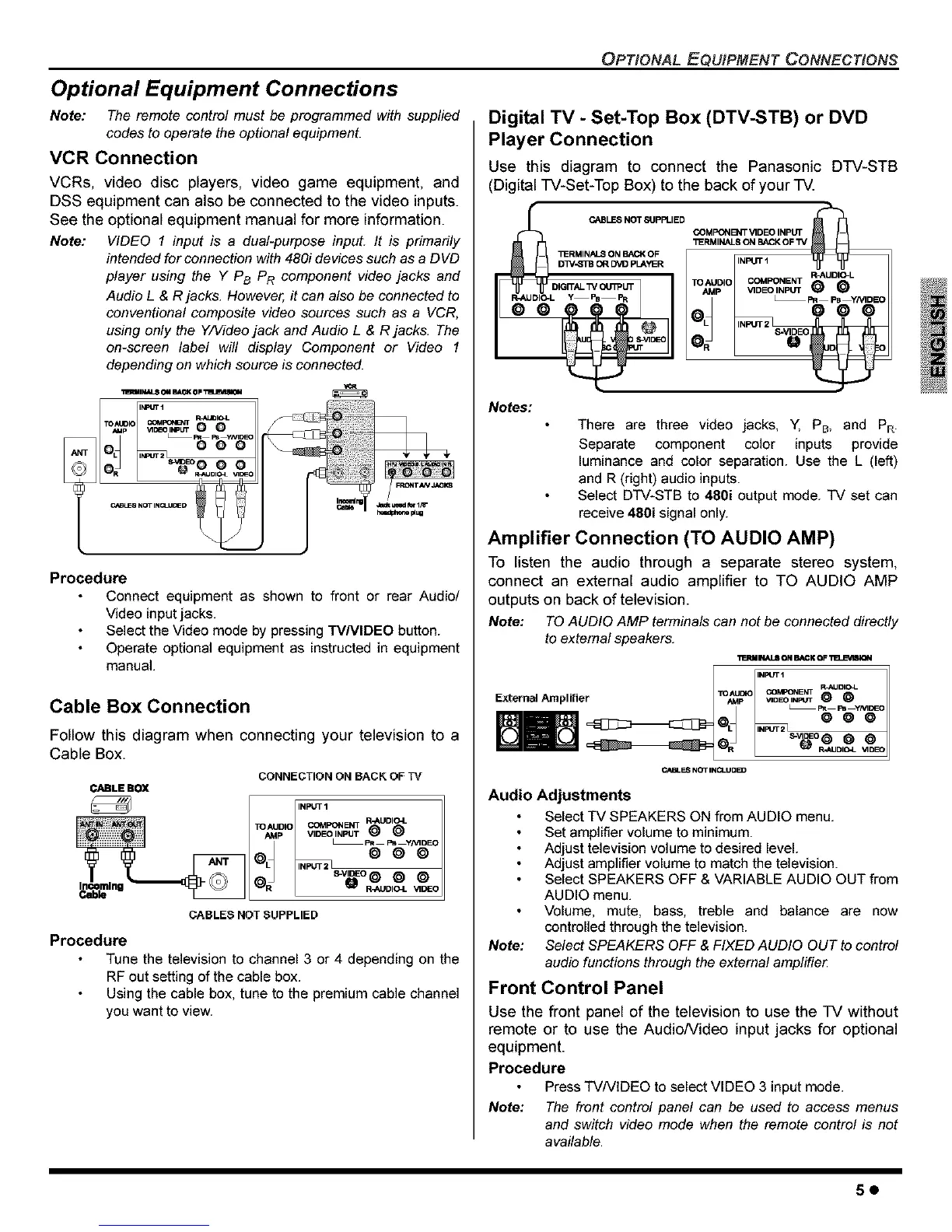

Optional Equipment Connections
Note: The remote control must be programmed with supplied
codes to operate the optional equipment.
VCR Connection
VCRs, video disc players, video game equipment, and
DSS equipment can also be connected to the video inputs.
See the optional equipment manual for more information.
Note: VIDEO 1 input is a dual-purpose input. It is primarily
intended for connection with 480i devices such as a DVD
player using the Y P# PR component video jacks and
Audio L & R jacks. However, it can also be connected to
conventional composite video sources such as a VCR,
using only the Y/Video jack and Audio L & R jacks. The
on-screen label will display Component or Video 1
depending on which source is connected.
'nmMilllM_ ON _ 0 p "r I_I_IU_N
INPt_ 1
TOi_lOi¢l C_I_M:NT Rd*UD_
ll,nJ _'_°o o o
/1"" L _ ._o,o__=-o
C_BL_I_ NOT INCLU[_ED _
Procedure
Connect equipment as shown to front or rear Audio/
Video input jacks.
Select the Video mode by pressing TVNIDEO button.
Operate optional equipment as instructed in equipment
manual.
Cable Box Connection
Follow this diagram when connecting your television to a
Cable Box.
CABLE BOX
CONNECTIONONBACKOFTV
=p'Nv:o'N'TOO
TO AUDI O COMPONENT R 4_LIDIOJ=
oL I
R L _ R4_UDO4_ VIDEO
CABLES NOT SUPPLIED
Procedure
Tune the television to channel 3 or 4 depending on the
RF out setting of the cable box.
Using the cable box, tune to the premium cable channel
you want to view.
OPTIONAL EQUIPMENT CONNECTIONS
Digital TV - Set-Top Box (DTV-STB) or DVD
Player Connection
Use this diagram to connect the Panasonic DTV-STB
(Digital TV-Set-Top Box) to the back of your TV.
C,ABLES NOT SUPPLIED
r__ COMPONI_NT VIDEO INPUT
"_RMINALS ON BACKOF 13/
33ERMINALS ON BACK OF
D_,/.._ OR DVD PLAYER IN PUT t
DIGITAL TV OLr_UT
R-AUDIC-L Y PS PR
o
Notes:
There are three video jacks, Y, PB, and Pr<-
Separate component color inputs provide
luminance and color separation. Use the L (left)
and R (right) audio inputs.
Select DTV-STB to 480i output mode. TV set can
receive 480i signal only.
Amplifier Connection (TO AUDIO AMP)
To listen the audio through a separate stereo system,
connect an external audio amplifier to TO AUDIO AMP
outputs on back of television.
Note: TO AUDIO AMP terminals can not be connected directly
to extemal speakers.
"I--.¢J_Hd,_LUIO N EL_¢K O F "i'19_=_GN
IN F'_T 1
E.or°o.Ao.p.,.or
C_BLE_ NOT INCLUDBD
Audio Adjustments
Select TV SPEAKERS ON from AUDIO menu.
Set amplifier volume to minimum.
Adjust television volume to desired level.
Adjust amplifier volume to match the television.
Select SPEAKERS OFF & VARIABLE AUDIO OUT from
AUDIO menu.
Volume, mute, bass, treble and balance are now
controlled through the television.
Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control
audio functions through the external amplifie_:
Front Control Panel
Use the front panel of the television to use the TV without
remote or to use the Audio/Video input jacks for optional
equipment.
Procedure
Press TVNIDEO to select VIDEO 3 input mode.
Note: The front control panel can be used to access menus
and switch video mode when the remote control is not
available.
5e
