Panasonic CU-2S18NBU-1 - Page 16

16
Outdoor Unit Installation Guidelines

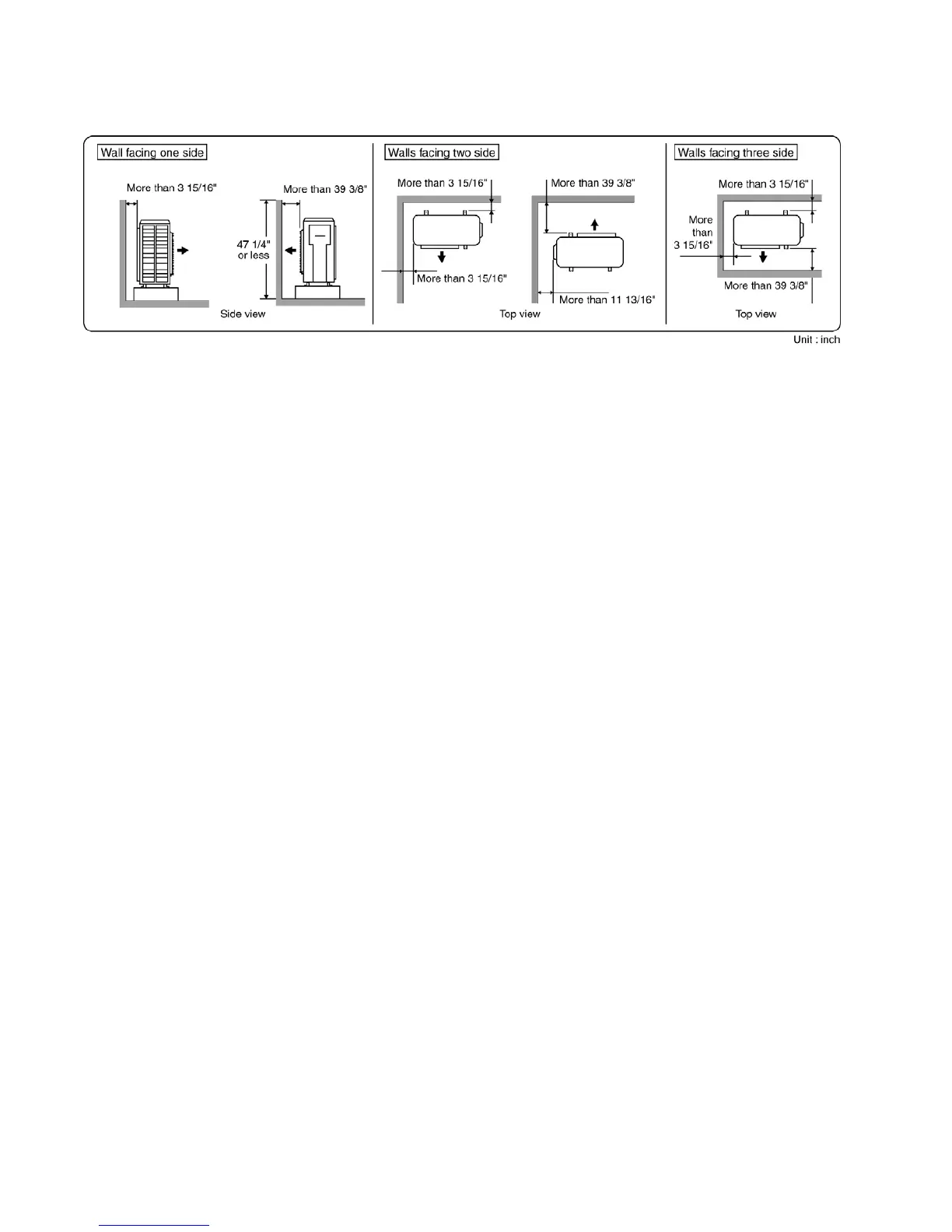

• Where a wall or other obstacle is in the path of outdoor unit’s intake or exhaust airflow, follow the installation
guidelines below.
• For any of the below installation patterns, the wall height on the exhaust side should be 47 1/4" or less.
