30
3. Disconnect the fan motor connector from the control P.C.
Board.

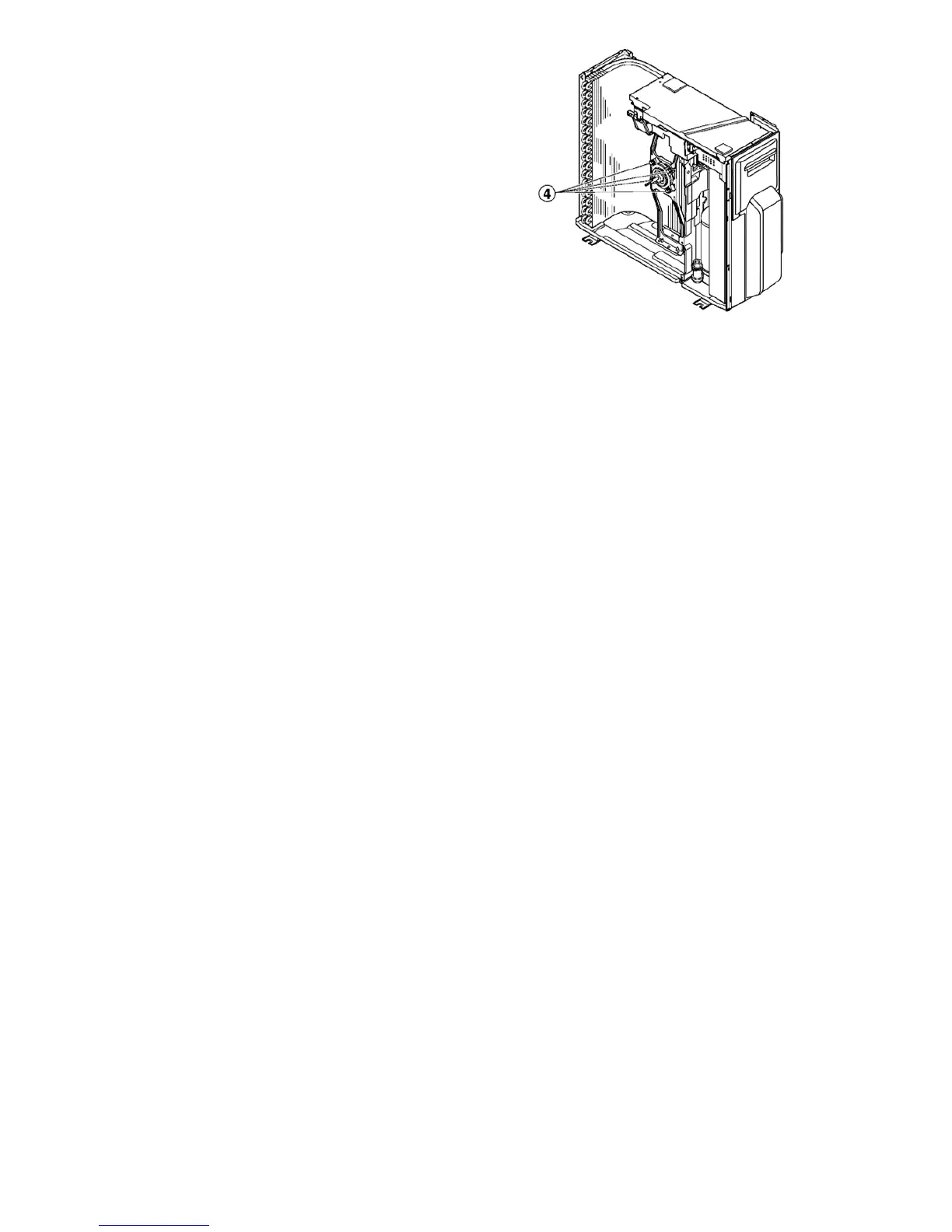

4. Loosen the 4 fan motor mounting screws then remove
the fan motor.
