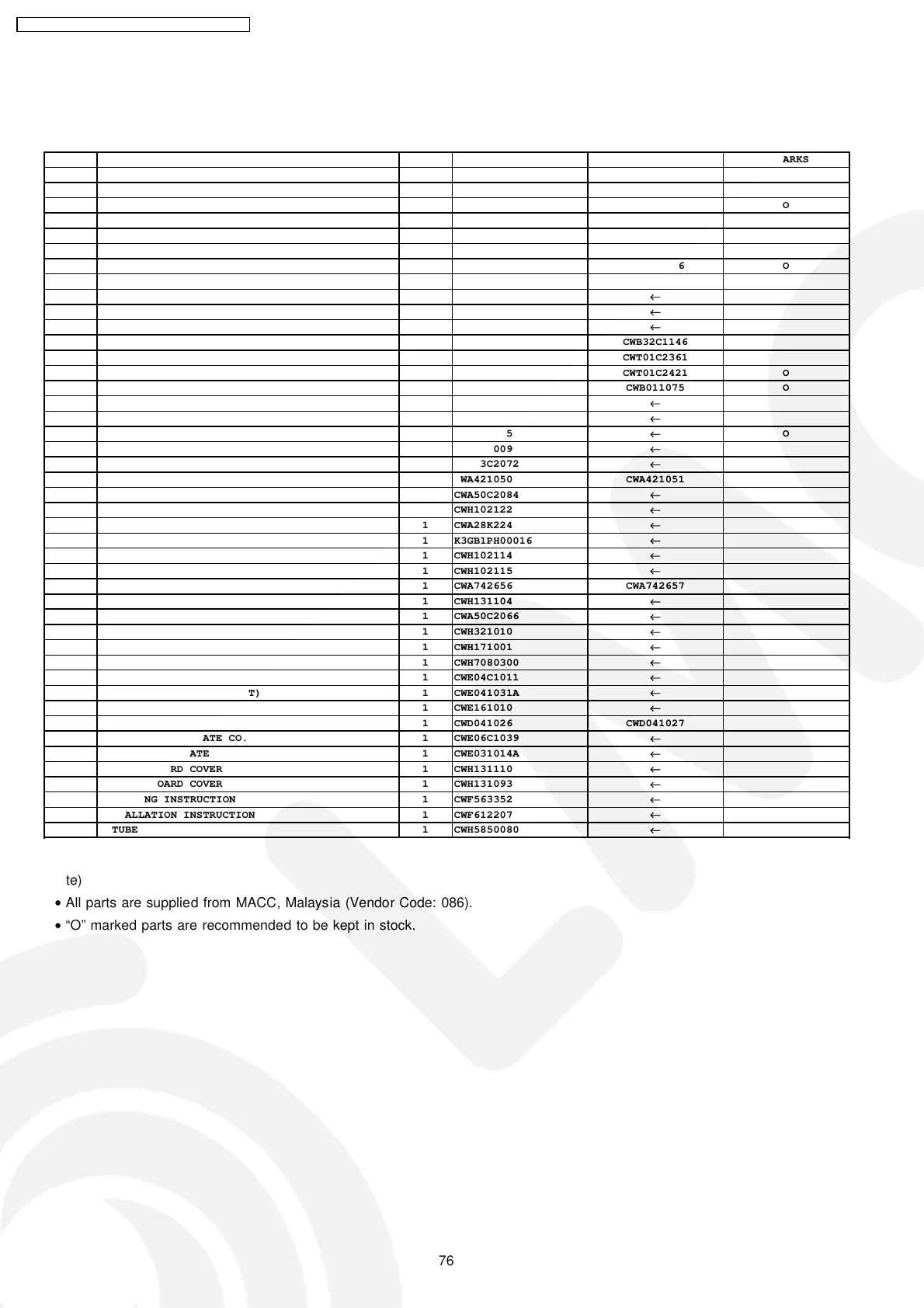

17 Replacement Parts List
<Model: CU-E9BKP5 / CU-E12BKP5>
REF NO. DESCRIPTION & NAME QTY. CU-E9BKP5 CU-E12BKP5 REMARKS
1 CHASSY ASSY 1 CWD50K2045A
←
2 ANTI-VIBRATION BUSHING 3 CWH50077
←
3 COMPRESSOR 1 5CS102XEA
←
O
4 NUT-COMPRESSOR MOUNT 3 CWH56000
←
5 SOUND PROOF MATERIAL 1 CWG302111 -
6 FAN MOTOR BRACKET 1 CWD541030
←
7 FAN MOTOR 1 CWA951125 CWA951126 O
8 SCREW - FAN MOTOR BRACKET 2 CWH551060
←
9 SCREW - FAN MOTOR MOUNT 4 CWH55406
←
10 PROPELLER FAN ASSY 1 CWH03K1006
←
11 NUT - PROPELLER FAN 1 CWH56053
←
12 CONDENSER 1 CWB32C1145 CWB32C1146
13 TUBE ASS’Y CO (CAP./CHK VALVE) 1 CWT01C2360 CWT01C2361
14 HOLDER-COUPLING COMPLETE 1 CWT01C2420 CWT01C2421 O
15 3 WAYS VALVE 1 CWB011074 CWB011075 O
16 4 WAYS VALVE 1 CWB001011
←
17 STRAINER 1 CWMB110002
←
18 2 WAYS VALVE 1 CWB021065
←
O
19 DRYER 1 CWB101009
←
20 V-COIL COMPLETE 1 CWA43C2072
←
21 REACTOR 1 CWA421050 CWA421051
22 SENSOR COMPLETE 1 CWA50C2084
←
23 CONTROL BOARD 1 CWH102122
←
24 TERMINAL BOARD ASSY 1 CWA28K224
←
25 FUSE HOLDERS 1 K3GB1PH00016
←
26 CONTROL BOARD 1 CWH102114
←
27 CONTROL BOARD 1 CWH102115
←
28 ELECTRONIC CONTROLLER 1 CWA742656 CWA742657
29 CONTROL BOARD COVER 1 CWH131104
←
30 SENSOR COMPLETE 1 CWA50C2066
←
31 HOLDER SENSOR 1 CWH321010
←
32 TERMINAL COVER 1 CWH171001
←
33 NUT-TERMINAL COVER 1 CWH7080300
←
34 CABINET SIDE PLATE CO. 1 CWE04C1011
←
35 CABINET SIDE PLATE (LEFT) 1 CWE041031A
←
36 HANDLE 1 CWE161010
←
37 WIRE NET 1 CWD041026 CWD041027
38 CABINET FRONT PLATE CO. 1 CWE06C1039
←
39 CABINET TOP PLATE 1 CWE031014A
←
40 CONTROL BOARD COVER 1 CWH131110
←
41 CONTROL BOARD COVER 1 CWH131093
←
42 OPERATING INSTRUCTION 1 CWF563352
←
43 INSTALLATION INSTRUCTION 1 CWF612207
←
44 L-TUBE 1 CWH5850080
←
(Note)
•
All parts are supplied from MACC, Malaysia (Vendor Code: 086).
•
“O” marked parts are recommended to be kept in stock.
76
CS-E9BKP CU-E9BKP5 / CS-E12BKP CU-E12BKP5
