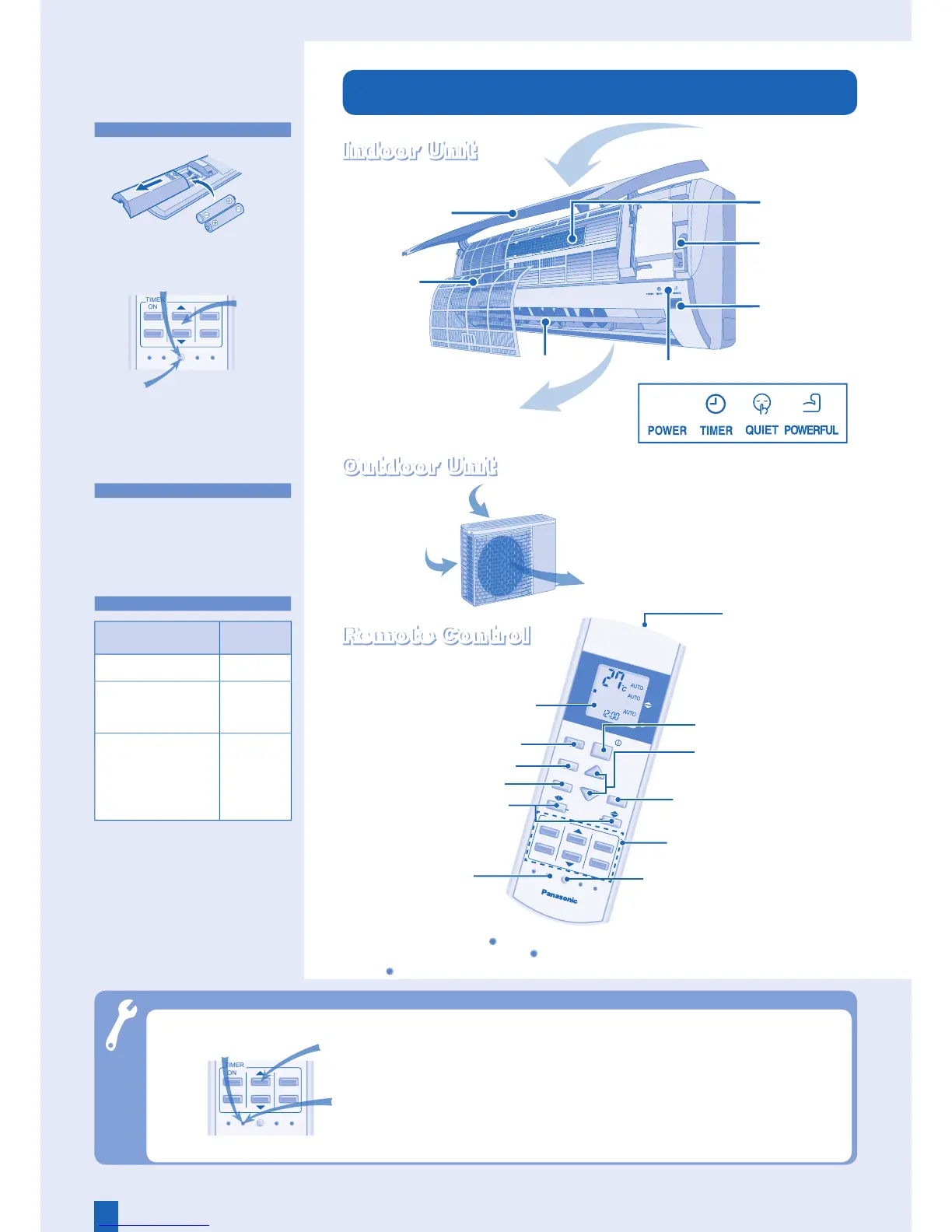

PRODUCT OVERVIEW
■ About
Outdoor Unit
Outdoor Unit
Remote Control
Remote Control
Air inlet (rear)
Air outlet
Air inlet (side)
Transmitter
Clock setting
Timer setting
Fan speed selection
Temperature setting
Off/On
LCD display
Operation mode
Quiet operation
Powerful operation
Airflow direction
adjustment
* For normal operation, the
SET
and
AC
reset buttons are not in use.
* Press
RC
reset button to restore remote control’s default setting.
Air intake
Discharged air
Indicator
Remote Control Preparation
5. Press to
set time
AIR SWING
TIMER
ON
1 2 3
OFF
SET
CANCEL
AC
RC
SET
CLOCK
CHECK
RESET
Remote Control Signal
• Make sure it is not obstructed.
• Maximum distance : 10m
• Certain fluorescent lights may
interfere with signal transmission.
Please consult your nearest dealer.
Auto OFF/ON Button
Action Mode
Press once. Automatic
Press and hold until
you hear one beep,
then release.
Cooling
Press until you
hear one beep then
release.
Press again until you
hear two beeps then
release.
Heating
• To turn off, press the AUTO OFF/
ON button again.
• Timer operation will be based on
current time set.
• The batteries can be used for
approximately 1 year.
3. Close the cover
2. Insert AAA or R03 batteries
4. Press CLOCK
6. Press again
1. Pull out the
cover
Troubleshooting
• In the event of an error, the unit will stop and the timer indicator will blink.
Note:
• The unit may be operable (with 4 beeps)
on a limited basic, depending on the
error.
1. Press for 5 seconds.
2. Press until you hear beep sound,
then jot down the error code.
3. Press for 5 seconds to quit checking.
4. Turn the unit off and reveal the error
code to your nearest dealer.
Check
Airflow direction louver
Air filter
Front panel
Super alleru-
buster filter
Auto OFF/ON
button
Receiver
