Panasonic CU-E12NKD - 19.2 Outdoor Unit Parts

142

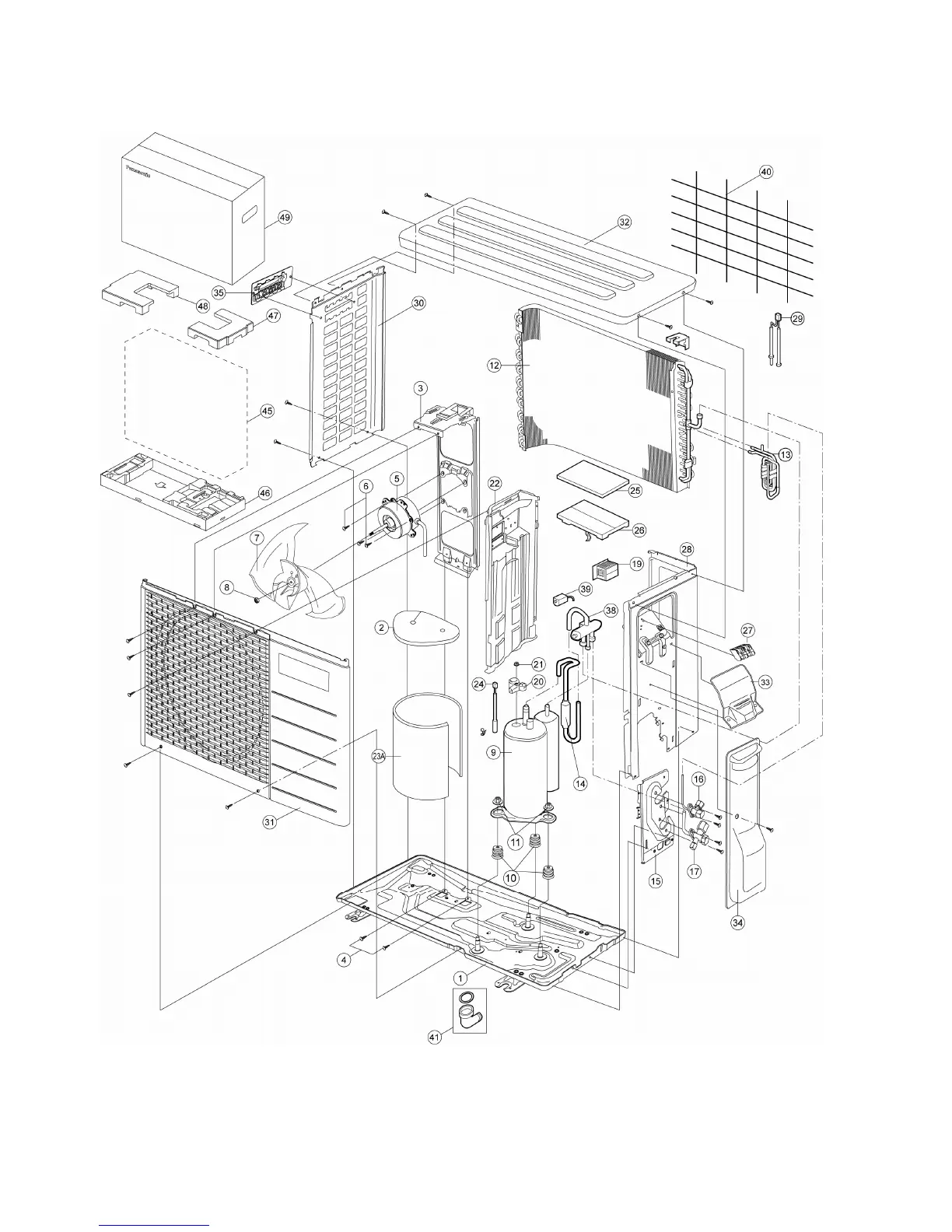

19.2 Outdoor Unit
19.2.1 CU-E7NKD CU-E9NKD CU-E12NKD CU-E15NKD
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
