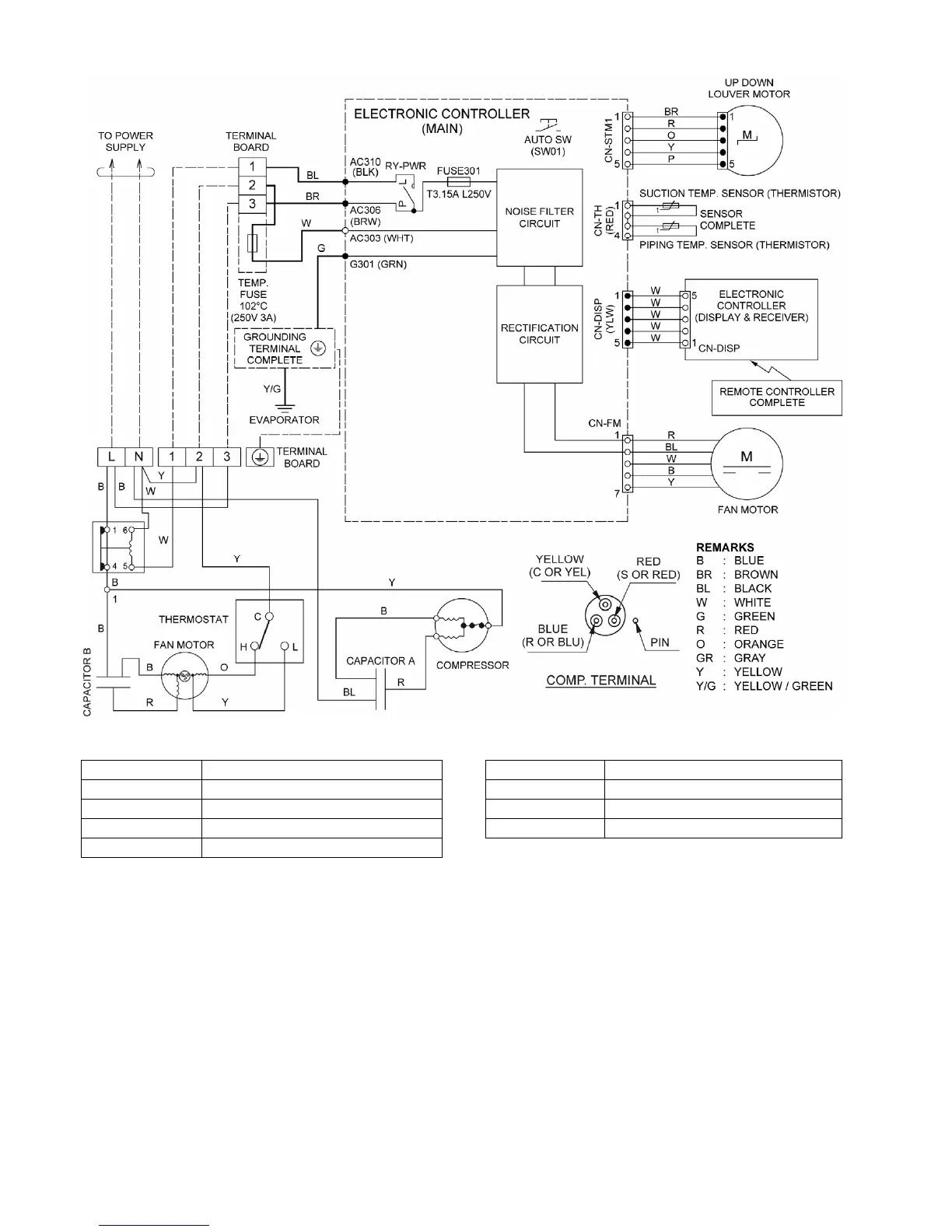

8.4 CS-PC28QKH CU-PC28QKH
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-PC28QKH MODEL CU-PC28QKH
CONNECTION CWA951697 CONNECTION 2JD514E3AA03
BLUE-YELLOW 70 Ω C-R 1.022 Ω
YELLOW-RED 51 Ω C-S 2.142 Ω
YELLOW-ORANGE 69 Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 20°C of ambient temperature. .
To Next Page
