70
RQT9088
Additional connections
Connecting a television and VCR
Connecting to a television with 21-pin Scart terminal
You can also connect with the AV1 terminal on this unit using the
21-pin Scart cable.
If your television is equipped with RGB input capability, by connecting with
a fully wired 21-pin Scart cable you can see video using RGB output on
this unit.
[Required]setting]
“AV1 Output” in the Setup menu (➡ 64)
Connecting to a VCR with 21-pin Scart terminal
You can also connect with the AV2 terminal on this unit using the
21-pin Scart cable.
[Required]setting]
“AV2 Input” in the Setup menu (➡ 64)
Connect the unit directly to the television
If you connect the unit through an AV selector or
video cassette recorder to the television, video
signal will be affected by copyright protection
systems and the picture may not be shown
correctly.
≥When connecting to a television with a
built-in VCR
Connect to the input terminals on the television
side if there are both television and VCR input
terminals.

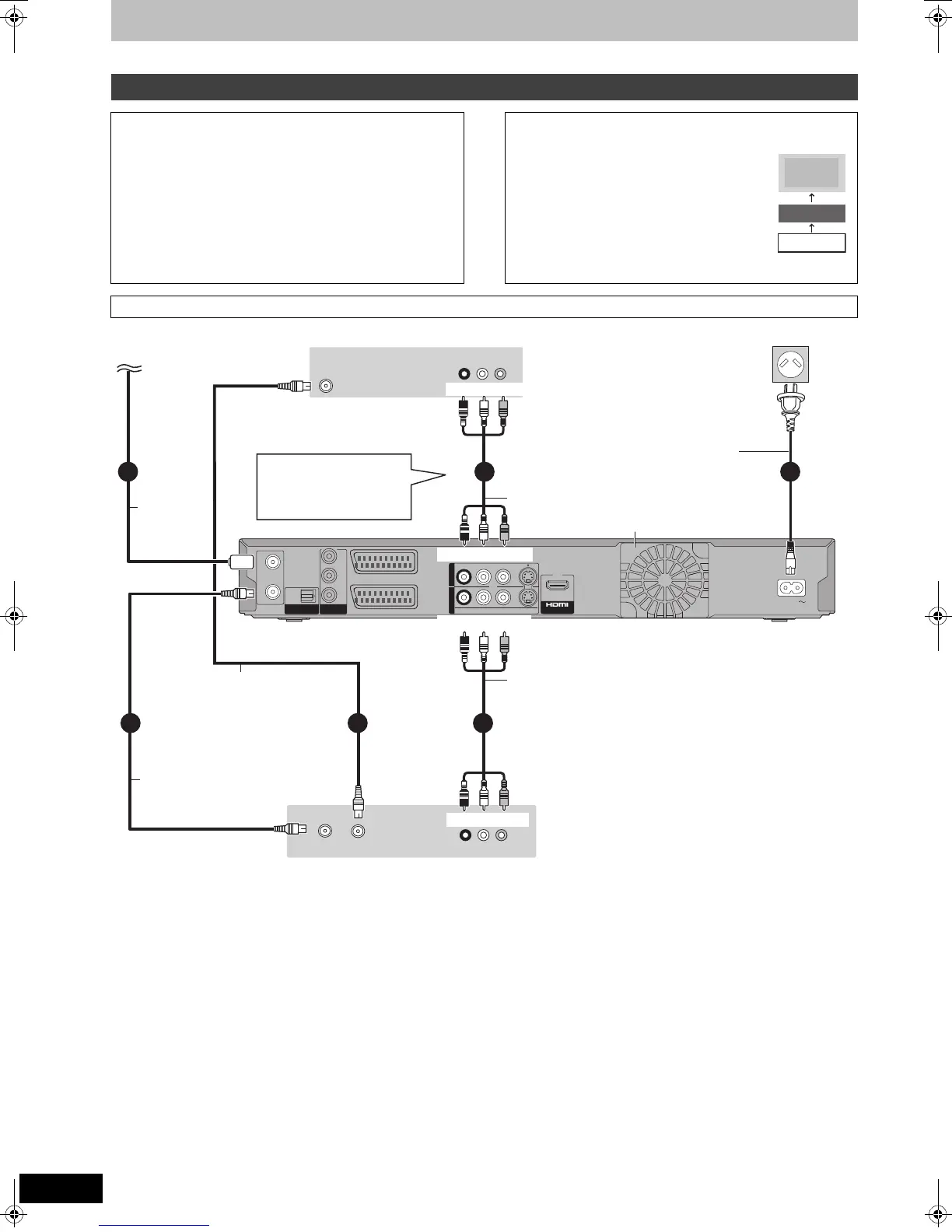

Connecting an Analogue television and VCR
Tel ev isi o n
VCR
This unit
DO NOT
RF
IN
RF
OUT
AV2
(
EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
AC IN
OUT
V4 I
AV OUT
VHF/UHF
RF IN
RF OUT
VIDEO OUT
R L
AUDIO OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO IN
6
3
5
4
2
1
To the aerial
Aerial cable
Cooling fan
RFcoaxial cable
This unit’s rear panel
Analogue television’s rear panel
VCR’s rear panel
AC mains lead
(included)
Connect only after all other
connections are complete.
RFcoaxial cable
(included)
To household mains socket
(AC 220 to 240 V, 50 Hz)
Audio/Video cable
(included)
Audio/Video cable
Red White Yellow
Red White Yellow
Red White Yellow
Red White Yellow
Other connections
(➡ 8, 68)
