Connection and setting
STEP 1 : Connecting to
a TV
≥ Do not place the unit on amplifiers/receiver or equipment
that may become hot. The heat can damage the unit.
≥ Before making any connections we suggest you temporarily
disconnect all the units from AC power.
≥ Do not connect video signals through a video recorder. Due
to copy guard protection the picture may not be displayed
properly.
≥ Please use High Speed HDMI Cables that have the HDMI
logo (as shown on the cover). It is recommended that you
use Panasonic’s HDMI cable. When outputting 1080p
signal, please use HDMI cables 5.0 meters or less.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m),
RP-CDHS50 (5.0 m), etc.
STEP 2 : Connecting to
an amplifier/receiver
∫ Via an HDMI AV OUT terminal
≥ The HDMI connection supports VIERA Link “HDAVI
Control” (> 9) when used with a compatible Panasonic TV.
≥ Set “HDMI Video Mode” [BD65]
and “HDMI Audio Output” to
“On” ([FUNCTION MENU]B“To Others”B“Setup”B
“TV / Device Connection”B“HDMI Connection”).
∫ Via an HDMI AV OUT terminal
≥ The HDMI connection supports VIERA Link “HDAVI
Control” (> 9) when used with a compatible Panasonic TV.
≥ Set “HDMI Video Mode” [BD65]
and “HDMI Audio Output” to
“On” ([FUNCTION MENU]B“To Others”B“Setup”B
“TV / Device Connection”B“HDMI Connection”).
≥ Set “Digital Audio Output” depending on the used terminal
and connected amplifier/receiver.
([FUNCTION MENU]B“To Others”B“Setup”B“Sound”)

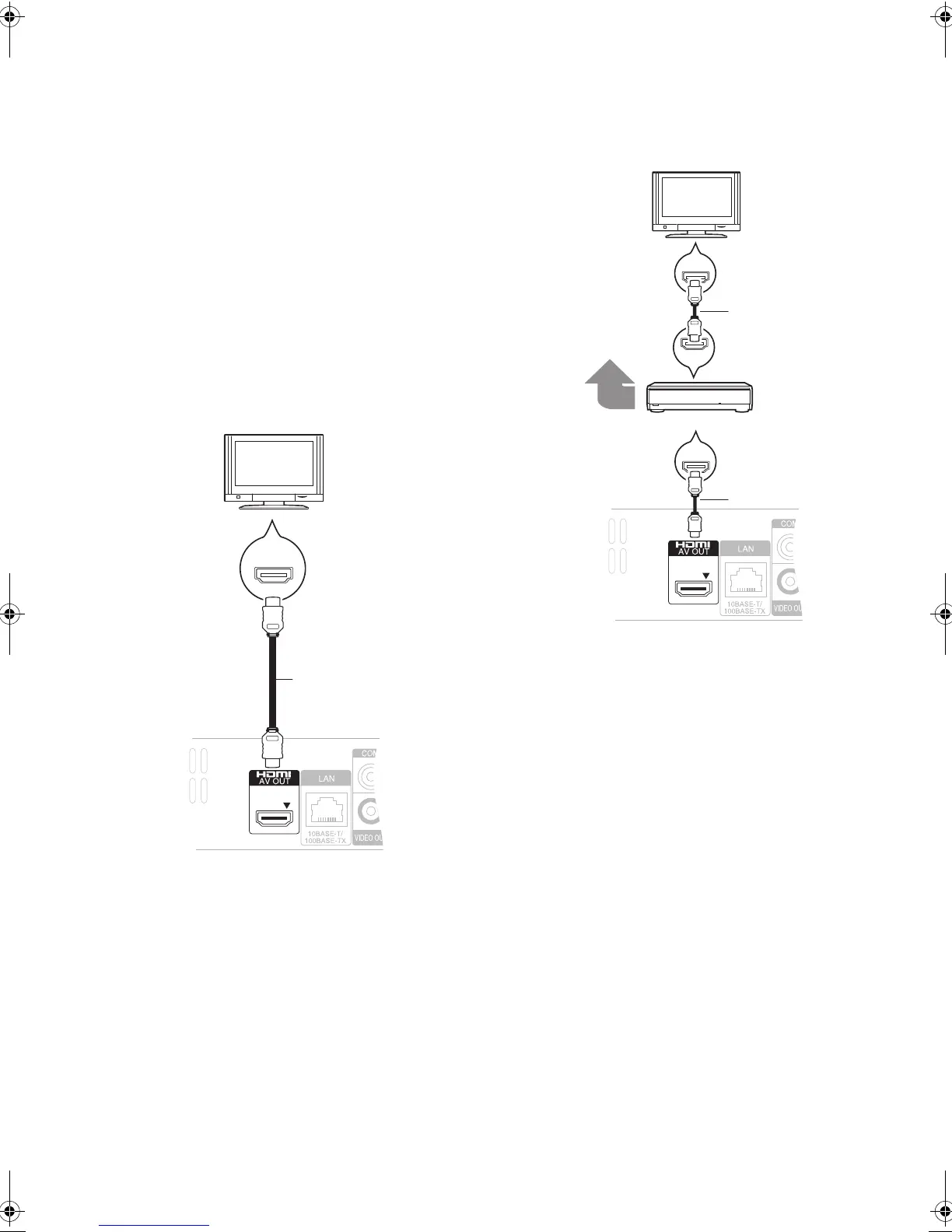

HDMI IN
HDMI IN
HDMI OUT
Multi channel
speakers
Amplifier/receiver
HDMI cable
HDMI cable
(6)
